Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Network manageable
Provides remote management of the UPS over the network.
Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators
Quickly understand unit and power status with visual indicators.
Serial Connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Network manageable
Provides remote management of the UPS over the network.
Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators
Quickly understand unit and power status with visual indicators.
Serial Connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Disconnected battery notification
Warns when a battery is not available to provide backup power.
| Battery | |
| Automatic battery test | Y |
| Battery capacity | 702 VAh |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Battery technology | Sealed Lead Acid (VRLA) |

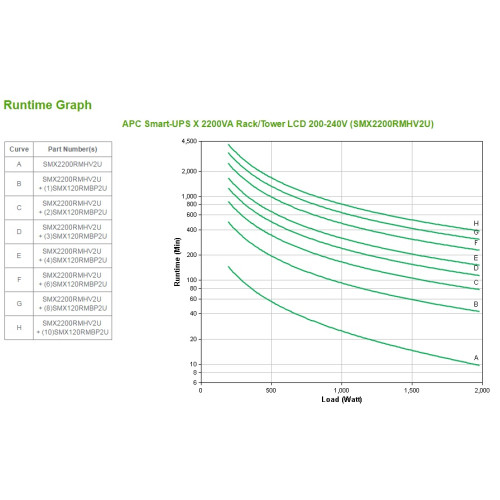

| Typical backup time at full load | 9.8 min |
| Typical backup time at half load | 25.3 min |
| Design | |
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IEC 60950, IRAM, RCM, UL 1778, VDE, REACH, PEP, EOLI |
| Form factor | Rackmount/Tower |
| LED indicators | Battery replacement |
| Product colour | Black |
| Features | |
| Audible alarm(s) | Y |
| Auto-restart | Y |
| Automatic Voltage Regulation (AVR) | Y |
| Cable length | 1.83 m |
| Efficiency | 98.1% |
| Emergency Power Off (EPO) | Y |
| Hold time (max) | 10 ms |
| Hold time (min) | 2 ms |
| Hot-swap battery | Y |
| Input frequency | 50/60 Hz |
| Noise level | 55 dB |
| Output frequency regulation | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 208 V |
| Output power | 1980 W |
| Output power capacity | 2.2 kVA |
| Rack capacity | 2U |
| Response time | 4 ms |
| Surge protection | Y |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Products per pallet | 8 pc(s) |
| Operational conditions | |
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 45 °C |
| Packaging content | |
| Cables included | RS-232, USB cable |
| Manual | Y |
| Software CD | Y |
| Packaging data | |
| Rack mount kit | Y |
| Ports & interfaces | |

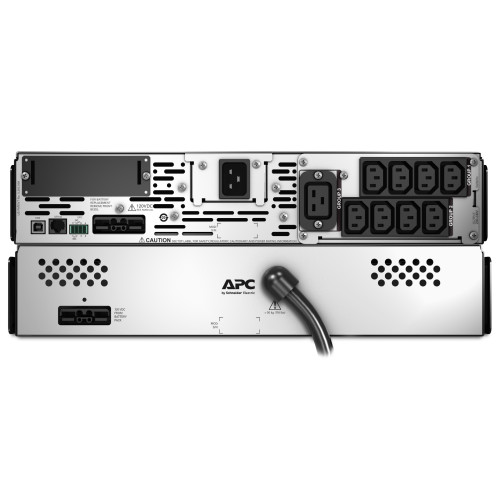

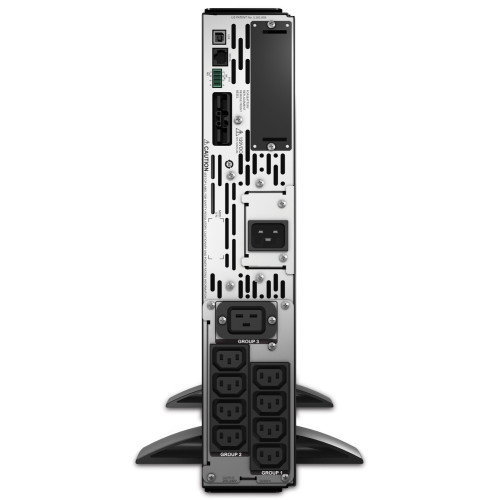

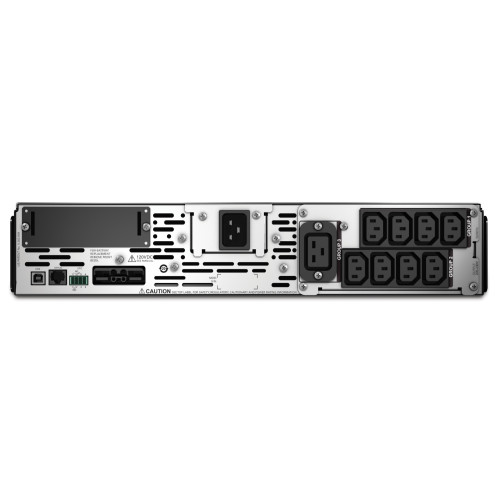

| Number of output IEC jumpers | 2 |
| Power plug | C20 coupler |
| SmartSlot | Y |
| USB port | Y |
| Power | |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 9 AC outlet(s) |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Surge energy rating | 645 J |
| Sustainability | |
| Sustainability certificates | Green Premium, RoHS |
| Weight & dimensions | |
| Depth | 667 mm |
| Height | 85 mm |
| Package depth | 869 mm |
| Package height | 243 mm |
| Package weight | 45.4 kg |
| Package width | 596 mm |
| Weight | 37.3 kg |
| Width | 432 mm |

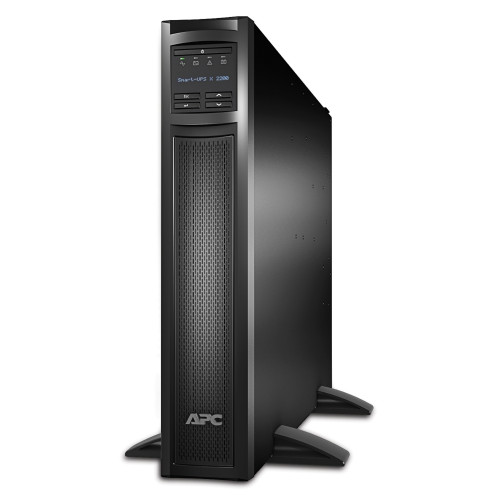

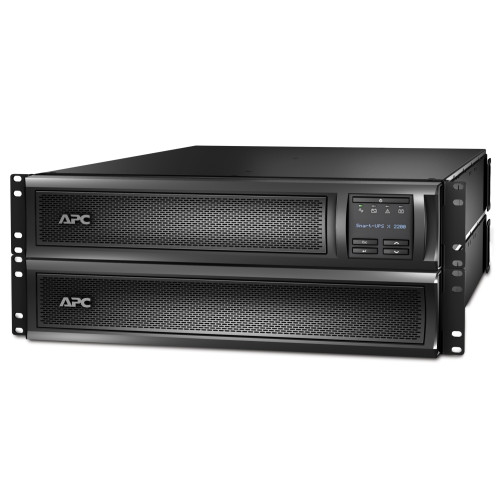

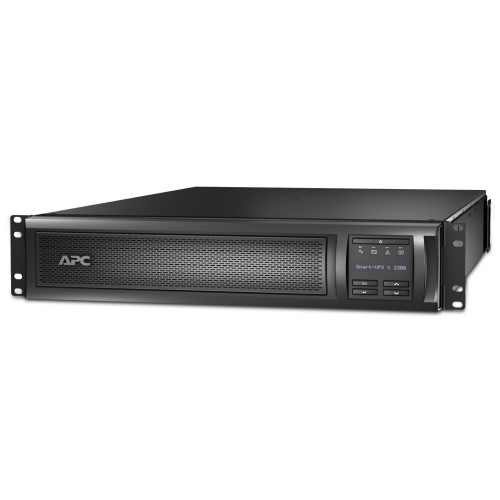

APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1980 W 9 AC outlet(s)
- Brand: APC
- Product Code: SMX2200RMHV2U
- Availability: In Stock
-
$2,385.30
