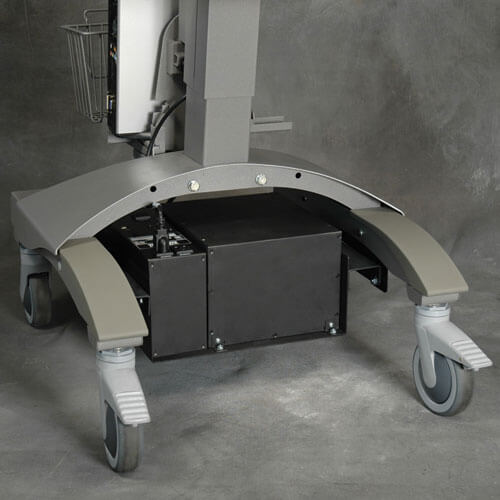

Tripp Lite's Medical-Grade Mobile Power Retrofit Kit provides UL 60601-1 compliance (a required patient shock-prevention measure) for all connected mobile electronic devices. The Mobile Power Retrofit Kit includes everything needed to add AC power to medical carts. The kit's power supply features an isolation transformer that reduces the cumulative shock potential of connected equipment, helping to ensure UL 60601-1 compliance. The included 36 amp-hour battery module provides long-lasting mobile power. Included PowerAlert Software saves valuable patient data from loss or corruption if the cart is left unattended and battery power is depleted. The Mobile Power Retrofit Kit also includes a remote user interface (RUI), mounting hardware and standard cabling.

Tripp Lite's Medical-Grade Mobile Power Retrofit Kit is fully compatible with most popular carts by AFC, Anthro, Datalux, GCX, Hergo, Humanscale, Jaco, Knurr, Stinger and more.

Key Features:

- Provides UL 60601-1 compliance for connected mobile equipment (used in every sector of healthcare facilities, both inside and outside of patient-care areas)
- Adds reliable mobile AC power source for medical carts

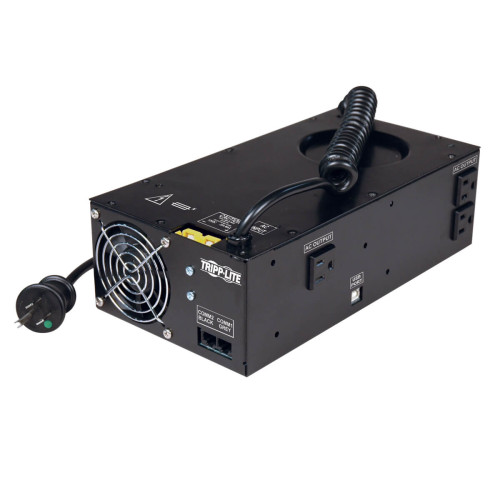

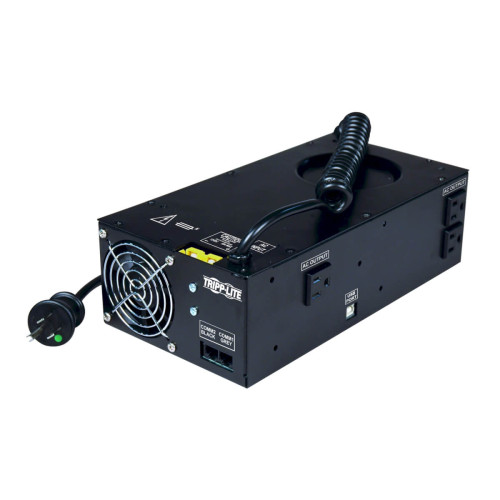

- Medical-Grade Mobile Power Supply (included) features an isolation transformer, providing UL 60601-1 compliance for connected equipment
- The Power Supply's advanced 3-stage charger recharges batteries faster and safer than conventional chargers
- The Power Supply's internal Automatic Transfer Switch (ATS) allows the power supply to simultaneously run connected equipment while recharging the battery module
- The Power Supply also features 3 NEMA 5-15R AC outlets, a 10-ft. coiled AC input cord with a hospital-grade NEMA 5-15PHG plug, a USB communication port and a compact, all-metal housing that stands up to the most demanding environments
- 36-amp hour user-replaceable Battery Module (included) provides long-lasting mobile power. Maintenance-free, spill-/leak-proof sealed lead-acid (SLA) AGM battery features simple, plug-in connection with included cable
- PowerAlert Data-Saving Software (included) automatically saves valuable patient data from loss or corruption if the cart is left unattended and battery power is depleted. Included cable connects the Power Supply to any cart-mounted computer (desktop or laptop)
- Remote User Interface (RUI) displays output and battery charge status at a glance. Includes on/off and alarm-mute switches. Mounts anywhere on the cart for easy access with included mounting material and cable
- Mounting Hardware Kit retrofits most standard medical carts from AFC, Anthro, Datalux, GCX, Hergo, Humanscale, Jaco, Knurr, Stinger and more
Design
Certification UL 60601-1, CAN/CSA-C22.2 No. 601.1-M90, UL 1778
Country of origin China
LED indicators Y
Product colour Black
Features
Power protection features Overload
Logistics data
Harmonized System (HS) code 8504.40.8500
Master (outer) case gross weight 32.2 kg
Master (outer) case height 472.4 mm
Master (outer) case length 375.9 mm
Master (outer) case width 459.7 mm
Products per master (outer) case 1 pc(s)
Other features
Dimensions (WxDxH) 609.6 x 660.4 x 330.2 mm
I/O ports NEMA 5-15P-HG
Power
AC input frequency 60 Hz
AC input voltage 120 V
Peak power 750 W
Total power 300 W
Weight & dimensions
Package depth 375.9 mm
Package height 472.4 mm
Package weight 32.2 kg
Package width 459.7 mm
Weight 32.8 kg

Write a review

Please login or register to review

Tripp Lite HCRK-36 power supply unit 300 W Black

  • Brand: Tripp-Lite
  • Product Code: HCRK-36
  • Availability: In Stock
  • $997.63
