Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
| Data transmission | |
| Forwarding rate | 11.9 Mpps |
| MAC address table | 8000 entries |
| Packet buffer memory | 4 MB |
| Store-and-forward | Yes |
| Switching capacity | 16 Gbit/s |
| Design | |
| LED indicators | Yes |
| Product colour | Black |
| Stackable | No |

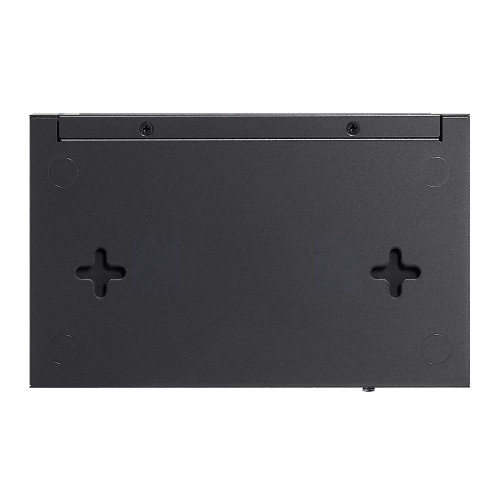

| Wall mountable | Yes |
| Features | |
| Firmware upgradeable | Yes |
| Power over Ethernet (PoE) | No |
| Surge protection | Yes |
| Management features | |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Unified static configuration | Yes |
| Web-based management | Yes |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Fast leave | Yes |
| Flow control support | Yes |
| Jumbo frames | 15000 |
| Jumbo frames support | Yes |
| Link aggregation | Yes |
| Port mirroring | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| VLAN support | Yes |
| Zero Touch Provisioning (ZTP) | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Other features | |
| AC adapter included | Yes |
| DC input voltage | 5 V |
| Number of VLANs | 32 |
| Packaging content | |
| User guide | Yes |
| Performance | |
| Fanless | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power | |
| Heat dissipation | 9.09 BTU/h |
| Input current | 0.6 A |
| Power consumption (max) | 2.7 W |
| Power source | DC |
| Surge protection voltage | 6 kV |
| Power supply | |
| Power supply included | Yes |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Storage | |
| Flash memory | 64 MB |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Mean time between failures (MTBF) | 1141726 h |
| Networking standards | IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q |
| Rack mounting | No |
| Weight & dimensions | |
| Depth | 100.7 mm |
| Height | 25.4 mm |
| Package type | Box |
| Width | 158 mm |

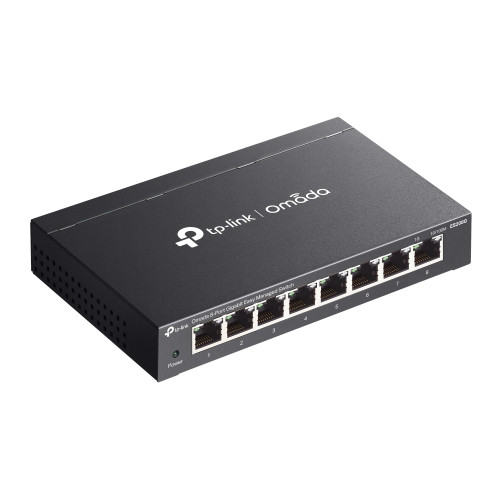

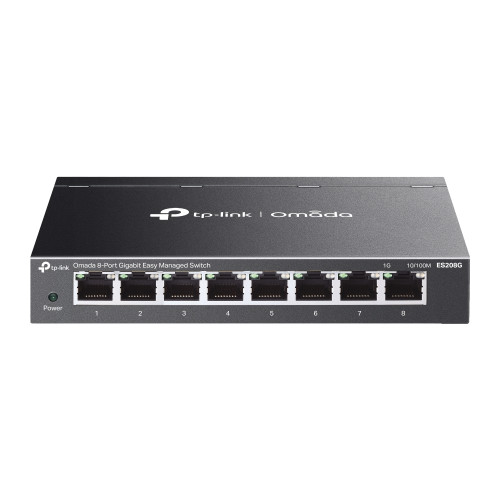

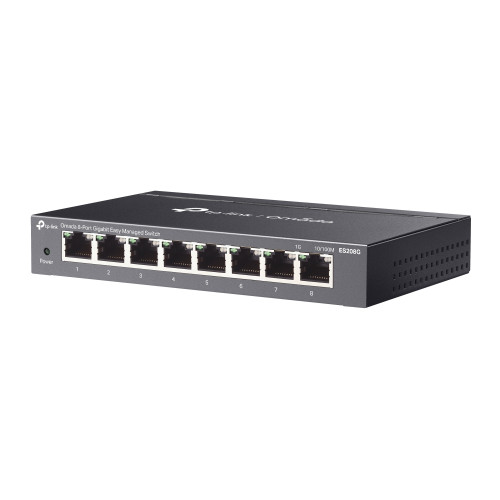

TP-Link Omada ES208G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
- Brand: TP-Link
- Product Code: ES208G
- Availability: In Stock
-
$29.14
