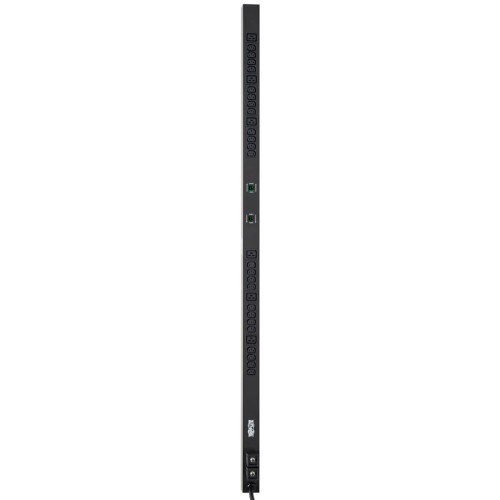

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 30A single phase 208/240V Metered Power Distribution Unit / PDU (Agency derated to 24A continuous)

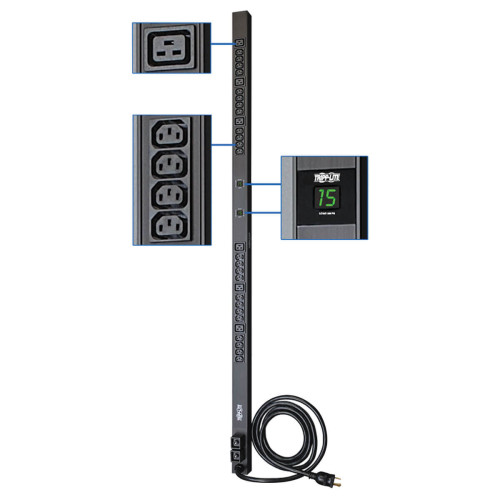

- Set of two lighted meters report PDU output current in amps for each output load bank
- Attached NEMA L6-30P 30A 208/240V input plug and 12ft / 3.6m cord
- 0U 63.75in / 162cm vertical rackmount format installs using no rack spaces
- 30 output receptacles (6 C19, 24 C13)
- Outlets are arranged in two 15 outlet load banks, each with separate 15A breaker and current metering
- Toolless installation in button-mount compatible equipment racks
- 30A single phase 208/240V Metered Power Distribution Unit / PDU (Agency derated to 24A continuous)
- Set of two lighted meters report PDU output current in amps for each output load bank
- Attached NEMA L6-30P 30A 208/240V input plug and 12ft / 3.6m cord
- 0U 63.75in / 162cm vertical rackmount format installs using no rack spaces
- 30 output receptacles (6 C19, 24 C13)
- Outlets are arranged in two 15 outlet load banks, each with separate 15A breaker and current metering
- Toolless installation in button-mount compatible equipment racks
| Design | |
| Certification | UL60950-1 (USA, Canada), NOM (Mexico) |
| Country of origin | China |
| Housing material | Aluminium |
| LED indicators | Y |
| Mounting | Vertical |
| PDU types | Metered |
| Product colour | Black |
| Features | |
| Cable length | 3.05 m |
| Rack capacity | 0U |
| Logistics data | |
| Master (outer) case gross weight | 31 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332139358 |
| Master (outer) case height | 177.8 mm |
| Master (outer) case length | 1663.7 mm |
| Master (outer) case width | 406.4 mm |
| Products per master (outer) case | 6 pc(s) |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Storage temperature (T-T) | -15 - 50 °C |
| Other features | |
| Dimensions (WxDxH) | 57 x 95 x 1620 mm |
| Ports & interfaces | |
| Power plug | NEMA L6-30P |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 30 AC outlet(s) |
| Maximum current | 30 A |
| Nominal input voltage | 200-240 V |
| Nominal output voltage | 200-240 V |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 57.2 mm |
| Height | 1619.2 mm |
| Package depth | 1651 mm |
| Package height | 127 mm |
| Package weight | 5.17 kg |
| Package width | 76.2 mm |
| Weight | 3.63 kg |
| Width | 88.9 mm |
Tripp Lite 5/5.8kW Single-Phase Metered PDU, 208/240V Outlets (6-C19 & 24-C13), L6-30P, 10ft Cord, 0U Vertical
- Brand: Tripp-Lite
- Product Code: PDUMV30HV
- Availability: In Stock
-
$356.42
