The U244-001-VGA-R USB 2.0 to VGA Dual-Monitor Adapter displays video on a VGA monitor or projector via your computer or laptop’s USB 2.0 port. You can extend video from your primary display to another, duplicate the same video on both displays or change the second display to your primary display. The adapter is an ideal tool for multitasking, viewing large spreadsheets, editing documents, giving presentations at trade shows or watching movies and playing games on large screens.

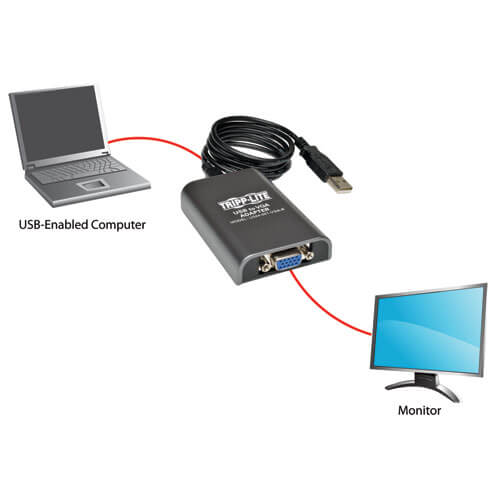

You can add up to six U244-001-VGA-R adapters, each attached to its own USB 2.0 port, to connect a total of seven displays to the video source. Adding or removing a monitor is easy—no need to reboot the system afterward. No external power supply is necessary. First, install the drivers using the included CD. Then, connect the adapter to the display and the source using a VGA cable and the included USB 2.0 cable, respectively.

This USB-to-VGA converter supports high-definition video resolutions up to 1920 x 1080 (1080p) at 60 Hz and features 128 MB DDR SDRAM of memory. Compatible with 32- and 64-bit Windows 7 and later, Windows 10, as well as 32- and 64-bit Intel Mac OS X 10.8.3 and later, Mac 10.11. The adapter also works with Surface tablets running Windows 8 Pro or later.

Easy to Add Displays
Extend video to a second monitor, duplicate the same video on both monitors, or make the second monitor your primary display
Ideal for multitasking, viewing spreadsheet data, editing documents, giving presentations, watching movies and playing video games
Add up to 6 adapters, each connected to its own USB 2.0 port, for a total of 7 displays
No external power supply necessary
No need to reboot system after adding or removing a monitor

Vibrant, Superior Video Quality
Supports high-definition video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
Features 128 MB DDR SDRAM of memory
Uses DisplayLink DL-165 chipset
Resumes automatically from hibernation and suspend modes

PC and Mac Compatible
Works with 32- and 64-bit Windows 7 and later, Windows 10
Works with 32- and 64-bit Intel Mac OS X 10.8.3 and later, Mac 10.11
Works with Surface tablets running Windows 8 Pro or late
Design
Country of origin China
Product colour Black
Features
Chipset DisplayLink DL165
Supported video modes 1080p
Graphics
Maximum resolution 1920 x 1200 pixels
Number of displays supported 1
Logistics data
Harmonized System (HS) code 84733020
Master (outer) case gross weight 5.49 kg
Master (outer) case GTIN (EAN/UPC) 10037332165111
Master (outer) case height 360.7 mm
Master (outer) case length 246.4 mm
Master (outer) case width 396.2 mm
Products per master (outer) case 20 pc(s)
Memory
Internal memory 128 MB

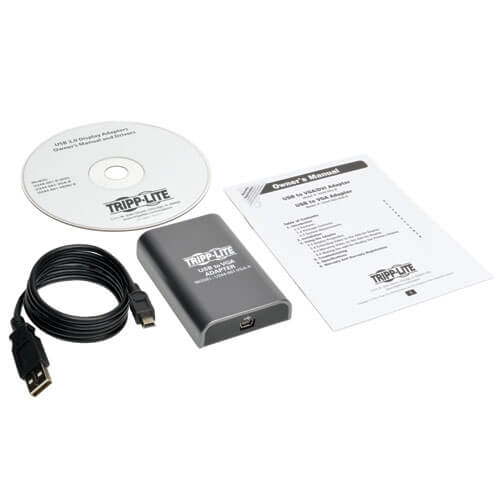

Packaging content
Cables included USB
Quick installation guide Y
Software CD Y
Performance
DisplayPort output N
DVI output N
HDMI output N
Refresh rate at maximum resolution 60 Hz
USB connector gender Male
USB connector type USB Type-A
USB version 2.0
VGA (D-Sub) output Y
Windows operating systems supported Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Sustainability
Sustainability certificates RoHS
System requirements
Mac operating systems supported Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Weight & dimensions
Package depth 57.2 mm
Package height 215.9 mm
Package weight 230 g
Package width 152.4 mm
Weight 50 g

Write a review

Please login or register to review

Tripp Lite U244-001-VGA-R USB 2.0 to VGA Dual-Monitor Adapter, 128 MB SDRAM, 1920 x 1080 (1080p) @ 60 Hz

  • Brand: Tripp-Lite
  • Product Code: U244-001-VGA-R
  • Availability: In Stock
  • $34.79
