USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Mac & Windows

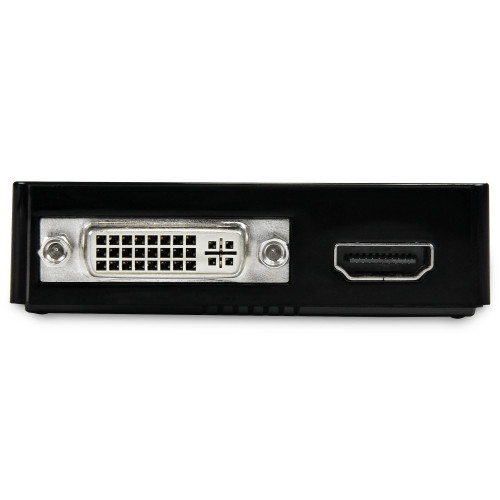

The USB32HDDVII USB 3.0 to HDMI and DVI-I Dual Head Adapter turns an available USB 3.0 port into one DVI-I or VGA port (DVI to VGA adapter included) and one HDMI output, with support for high-definition 1080p and 1920x1200 video and 5.1 surround sound audio (from HDMI port only). Each display can simultaneously support the maximum resolution of 2048x1152 @ 60Hz.
The adapter delivers a convenient external video solution that makes it easy to add multi-monitor capability to a USB enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).

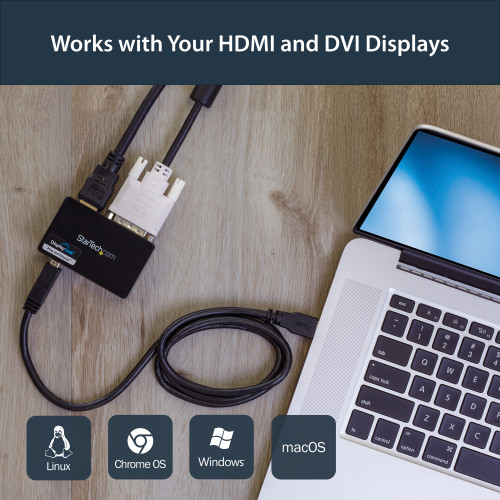

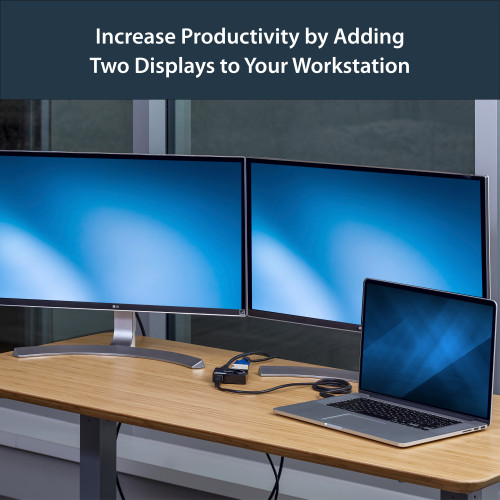

Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the USB video adapter functions as a convenient external graphics card that eliminates having to open the computer case for video card installation. The adapter delivers smooth, high definition content to multiple displays and can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop onto a second or third monitor to double or triple your workspace and increase your productivity.
The USB 3.0 HDMI and DVI-I Adapter is backed by a StarTech.com 2-year warranty and includes free lifetime technical support.
The StarTech.com Advantage

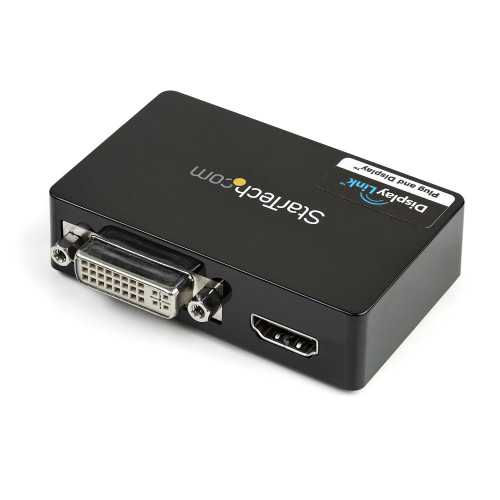

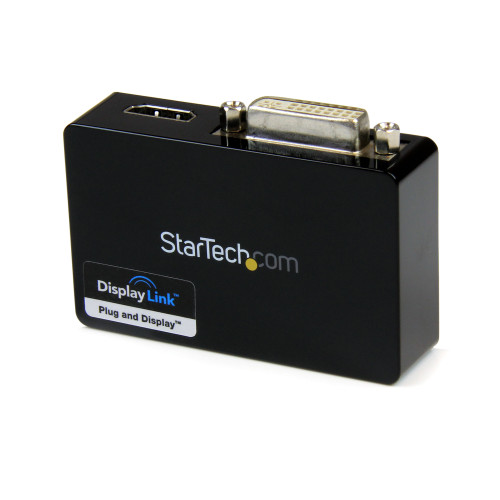

- With two video output ports, the dual head design of the adapter offers a compact multi-monitor solution across both HDMI and DVI technology
- SuperSpeed USB 3.0 to HDMI/DVI conversion delivers improved bandwidth compared to a USB 2.0 connection for smoother high-definition video content
- The adapter is installed externally, through USB, which enables you to add graphics capability to your system without opening the case or voiding system warranties
The USB32HDDVII USB 3.0 to HDMI and DVI-I Dual Head Adapter turns an available USB 3.0 port into one DVI-I or VGA port (DVI to VGA adapter included) and one HDMI output, with support for high-definition 1080p and 1920x1200 video and 5.1 surround sound audio (from HDMI port only). Each display can simultaneously support the maximum resolution of 2048x1152 @ 60Hz.
The adapter delivers a convenient external video solution that makes it easy to add multi-monitor capability to a USB enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).
Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the USB video adapter functions as a convenient external graphics card that eliminates having to open the computer case for video card installation. The adapter delivers smooth, high definition content to multiple displays and can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop onto a second or third monitor to double or triple your workspace and increase your productivity.
The USB 3.0 HDMI and DVI-I Adapter is backed by a StarTech.com 2-year warranty and includes free lifetime technical support.
The StarTech.com Advantage
- With two video output ports, the dual head design of the adapter offers a compact multi-monitor solution across both HDMI and DVI technology
- SuperSpeed USB 3.0 to HDMI/DVI conversion delivers improved bandwidth compared to a USB 2.0 connection for smoother high-definition video content
- The adapter is installed externally, through USB, which enables you to add graphics capability to your system without opening the case or voiding system warranties
| Design | |
| Certification | CE, FCC, TAA, DisplayLink, REACH |
| Housing material | Plastic |
| Product colour | Black |
| Features | |
| Chipset | DisplayLInk - DL-3900 |
| Supported graphics resolutions | 720 x 480, 832 x 624, 1024 x 600, 1152 x 870, 1280 x 800, 1280 x 960, 1366 x 768, 1600 x 900, 2048 x 1152, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 480 (WVGA), 800 x 600 (SVGA) |
| Graphics | |
| Maximum resolution | 2048 x 1152 pixels |
| Number of displays supported | 2 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 475 mm |
| Master (outer) case length | 469 mm |
| Master (outer) case width | 472 mm |
| Products per master (outer) case | 72 pc(s) |
| Memory | |
| Internal memory | 1024 MB |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -5 - 40 °C |
| Other features | |
| Mac compatibility | Y |
| Minimum RAM | 2.05 TB |

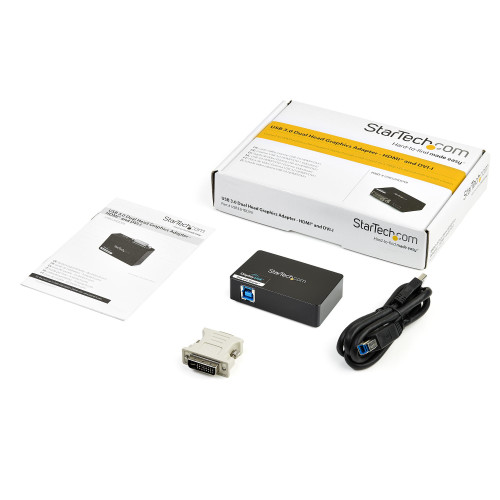

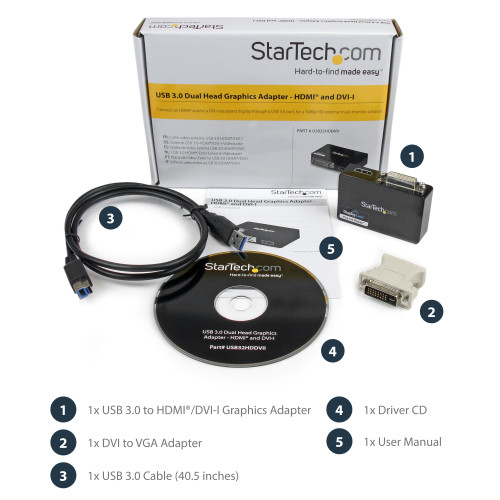

| Packaging content | |
| Cables included | USB |
| Interface adapters included | DVI-I male - VGA female |
| Quick installation guide | Y |
| Packaging data | |
| Drivers included | Y |
| Performance | |
| Audio output channels | 5.1 channels |
| DisplayPort output | N |
| DVI connector type | DVI-I |
| DVI output | Y |
| HDMI output | Y |
| Linux operating systems supported | Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04 |
| Output colour depth | 16/32 bit |
| Refresh rate at maximum resolution | 60 Hz |

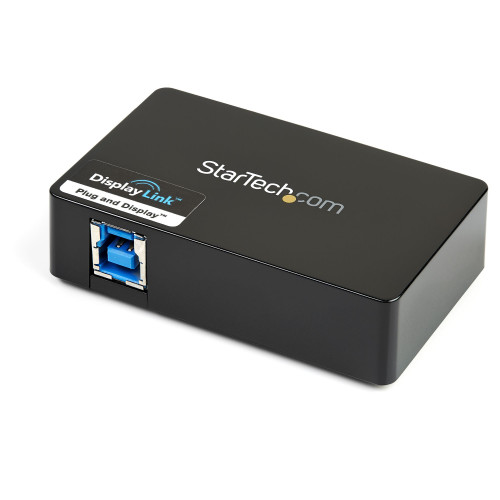

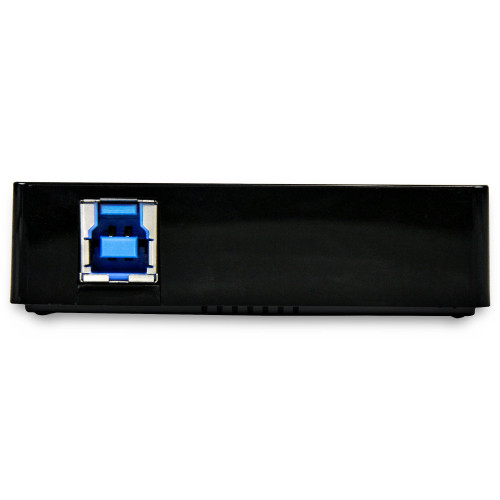

| USB connector gender | Female |
| USB connector type | USB Type-B |
| USB pass-through | N |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Sustainability | |
| Sustainability certificates | RoHS |
| System requirements | |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Minimum processor family | Core i3 |
| Minimum processor speed | 2.8 GHz |
| Other operating systems supported | ChromeOS |

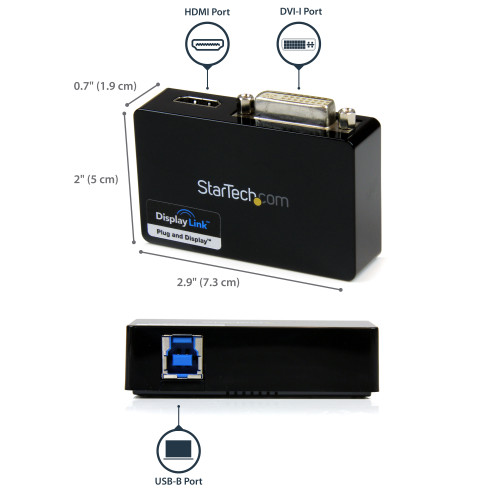

| Weight & dimensions | |
| Depth | 73 mm |
| Height | 19 mm |
| Package depth | 145 mm |
| Package height | 40 mm |
| Package weight | 240 g |
| Package width | 206 mm |
| Weight | 43 g |
| Width | 50 mm |
StarTech.com USB 3.0 to HDMI / DVI Adapter - 2048x1152
- Brand: StarTech.com
- Product Code: USB32HDDVII
- Availability: In Stock
-
$78.96
