Single monitor (HDMI or VGA) or dual-mirrored (HDMI/VGA) video adapter with audio and power delivery pass-throughThis USB-C™ Multiport Video Adapter offers a portable solution for connecting USB Type-C devices to HDMI and/or VGA displays, with up to 100W of Power Delivery.Versatile Video ConnectivityThis Multiport Adapter supports a single HDMI display at resolutions up to 4K 60Hz, a single VGA display at resolutions of up to 1920x1200 60Hz or dual-mirrored HDMI and VGA displays at resolutions of up to 1080p. The 3.5mm audio port can be used for connecting speakers while presenting with a VGA projector/display, or headphones.Extended Cable LengthThe adapter is equipped with an extra-long 12 inch (30cm) attached cable, providing an extended reach, to reduce port and connector strain on 2-in-1 devices, tablets, or laptops on risers/stands.Power DeliveryThe USB C to HDMI and VGA Adapter is bus powered for easy use while traveling. Optionally, connect a USB-C power adapter and charge your laptop using the Power Delivery 3.0 pass-through feature, supporting up to 100W charging.Connectivity for Any LaptopThe USB Type-C Display Adapter is compatible with USB-C DisplayPort Alt-mode, Thunderbolt 3, and Thunderbolt 4 enabled laptops, Ultrabooks, Chromebooks, and MacBooks. Plug and play (driver/software free) compatibility with any operating system such as Windows, macOS, iPadOS, Chrome OS, and Linux.122-USBC-HDMI-4K-VGA is backed for 3-years by StarTech.com, including free 24/5 multi-lingual technical assistance.Note:This adapter does not support MST or dual extended displays.The StarTech.com Advantage
Design
Integrated USB cable Y
Product colour Grey
Graphics
Maximum resolution 3840 x 2160 pixels
Number of displays supported 2
Logistics data
Harmonized System (HS) code 84733020
Master (outer) case height 310 mm
Master (outer) case length 330 mm
Master (outer) case width 530 mm
Products per master (outer) case 60 pc(s)
Operational conditions
Operating relative humidity (H-H) 10 - 85%
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -10 - 70 °C
Performance
Audio output channels 7.1 channels
DisplayPort output N
DVI output N
HDMI output Y
Maximum analog resolution 1920 x 1200 pixels
Maximum resolution (HDMI) 3840 x 2160 pixels
Maximum transfer distance 30 m
Refresh rate at maximum resolution 60 Hz
USB connector form factor Straight
USB connector gender Male
USB connector type USB Type-C
VGA (D-Sub) output Y
Ports & interfaces
HDMI ports quantity 1
HDMI version 2.0b
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
VGA (D-Sub) ports quantity 1
Sustainability
Sustainability certificates CE, RoHS

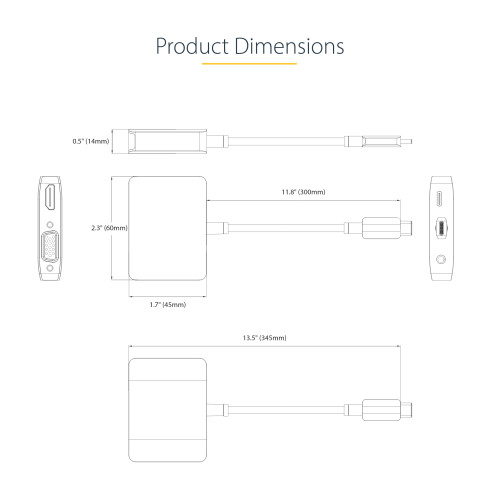

Weight & dimensions
Depth 45 mm
Height 14 mm
Package depth 145 mm
Package height 30 mm
Package weight 245 g
Package width 175 mm
Weight 41 g
Width 60 mm

Write a review

Please login or register to review

StarTech.com USB C Video Adapter, USB C to HDMI VGA Multiport Adapter, 3.5mm Audio, 4K 60Hz HDR, 100W PD Pass-Through, Thunderbolt 3/4 Compatible - USB C Display Travel Adapter

  • Brand: StarTech.com
  • Product Code: 122-USBC-HDMI-4K-VGA
  • Availability: In Stock
  • $53.92
