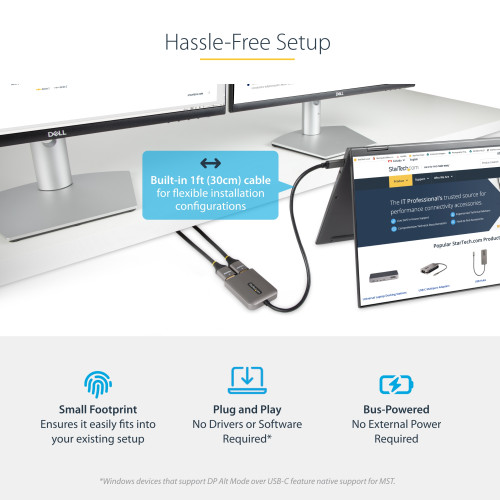

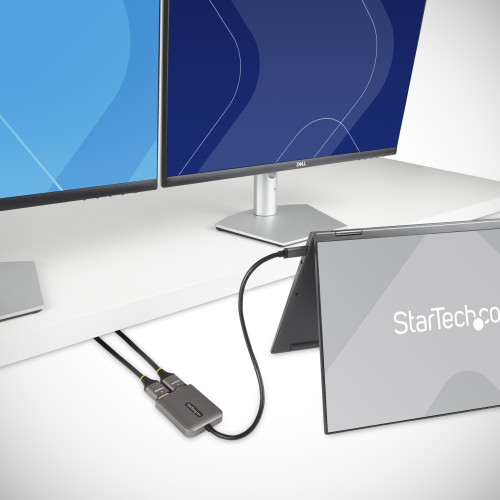

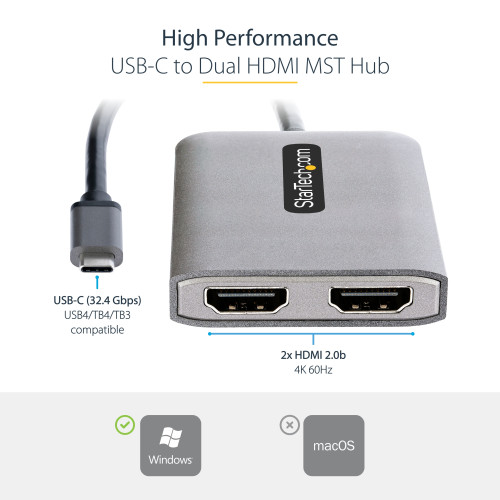

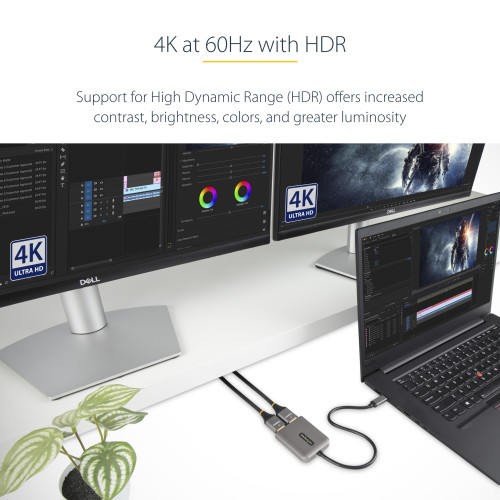

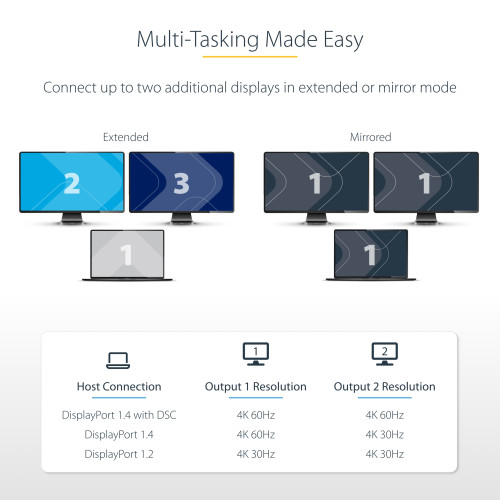

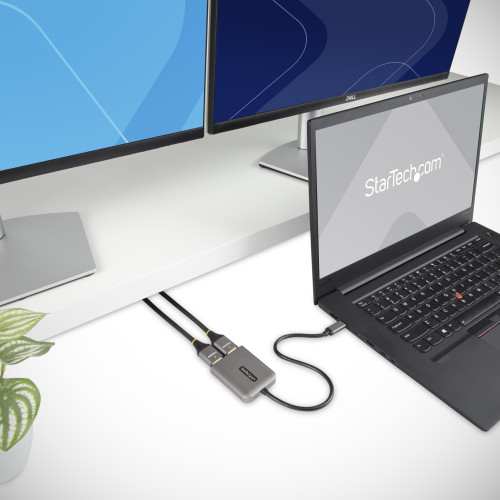

2 x 4K 60Hz | Multi-Monitor Video Splitter | Windows® | DSC | HDRThis USB-C to HDMI MST Hub allows you to connect two HDMI monitors, using a USB-C enabled host device.Multi-tasking Made EasyThis USB-C to HDMI video splitter connects up to two additional displays in extended or mirror mode. Connecting two independent 4K 60Hz displays creates high-performance workstations, for users in your organization enabling easier multi-tasking resulting in increased productivity.Host ConnectionOutput 1 ResolutionOutput 2 ResolutionDisplayPort 1.4 with DSC4K 60Hz4K 60HzDisplayPort 1.44K 60Hz4K 30HzDisplayPort 1.24K 30Hz4K 30Hz4K at 60Hz and HDRMulti-Stream Transport (MST) technology combines multiple video signals into a single signal/stream. This MST Hub separates the single stream into two independent signals, one for each HDMI enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.Hassle-Free SetupWindows devices that support DP Alt Mode over USB-C feature native support for MST. This USB-C to HDMI hub is compatible with Thunderbolt 4, Thunderbolt 3, and USB4 enabled Windows devices. Plug-and-play installation with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, meaning no external power is required.MST14CD122HD is backed by a StarTech.com 3-year warranty, and free lifetime multilingual, North American based technical support.The StarTech.com Advantage
| Design | |
| Housing material | Plastic |
| Integrated USB cable | Y |
| Product colour | Black, Grey |
| USB cable length | 0.3 m |
| Display | |
| High Dynamic Range (HDR) supported | Y |
| Features | |
| Chipset | Synaptics VMM5200 |
| Data transfer rate (max) | 32.4 Gbit/s |
| Graphics | |
| Maximum resolution | 3840 x 2160 pixels |
| Number of displays supported | 2 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 440 mm |
| Master (outer) case length | 331 mm |
| Master (outer) case width | 473 mm |
| Products per master (outer) case | 70 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Performance | |
| Audio output channels | 7.1 channels |
| DisplayPort output | Y |
| DVI output | N |
| HDMI output | Y |
| Refresh rate at maximum resolution | 60 Hz |
| USB connector form factor | Straight |
| USB connector gender | Male |

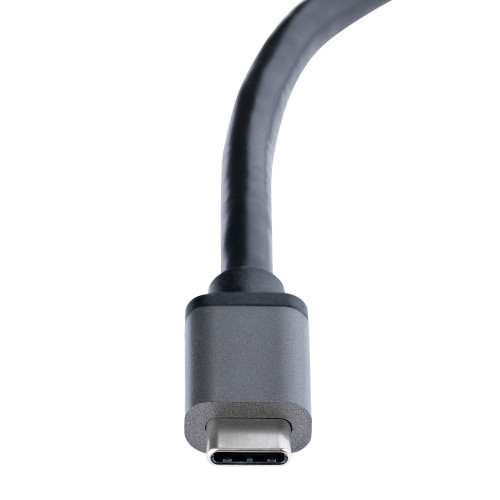

| USB connector type | USB Type-C |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 x64, Windows 11, Windows 11 x64 |
| Ports & interfaces | |
| HDMI ports quantity | 2 |
| Sustainability | |
| Sustainability certificates | CE, RoHS |

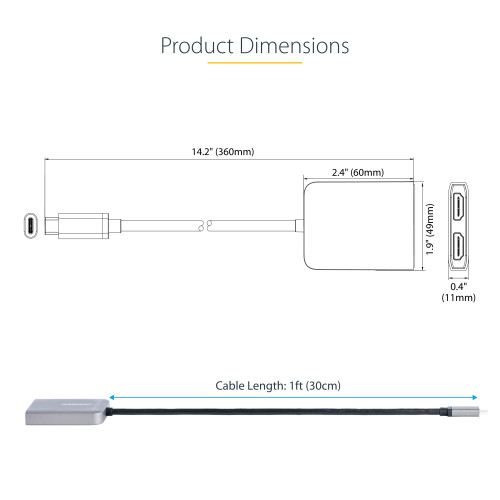

| Weight & dimensions | |
| Depth | 43 mm |
| Height | 14 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 108.8 g |
| Package width | 142 mm |
| Weight | 55 g |
| Width | 105 mm |

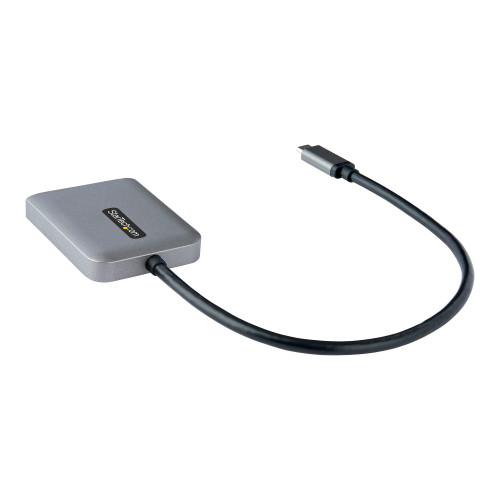

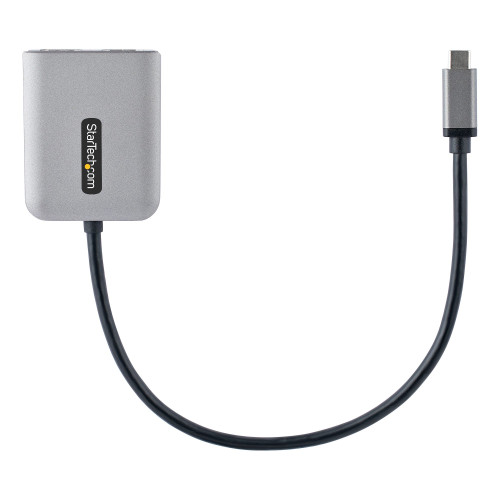

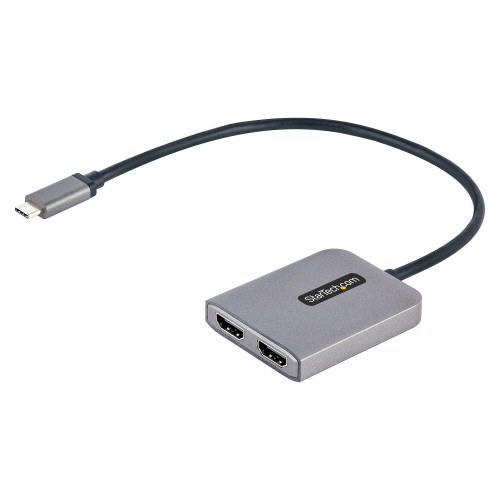

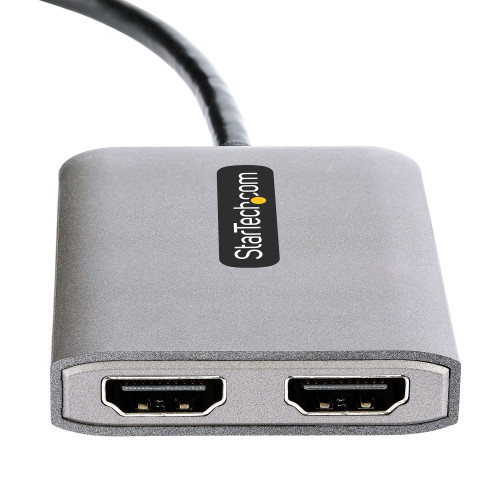

StarTech.com USB-C to Dual HDMI MST HUB - Dual HDMI 4K 60Hz - USB Type C Multi Monitor Adapter for Laptop w/ 1ft/30cm cable - DP 1.4 Multi-Stream Transport Hub - USB-C to HDMI Splitter
- Brand: StarTech.com
- Product Code: MST14CD122HD
- Availability: In Stock
-
$49.59
