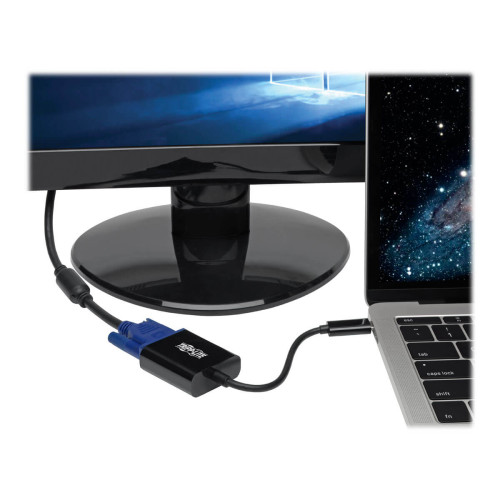

Connects a VGA Display to Your USB-C or Thunderbolt 3 Device
This USB 3.2 Gen 1 to VGA adapter helps you transmit video from your tablet, laptop, Chromebook, MacBook, smartphone or PC to a VGA-enabled television, monitor or projector. It’s ideal for giving video presentations in conference rooms and classrooms, editing multiple documents on a larger screen or streaming video for digital signage in crystal-clear 1080p.

Supports USB DisplayPort Alternate Mode for Transmitting Video Signals
With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.

Transmits Crystal-Clear 1080p Video to a VGA Display
To send high-definition video to a VGA television, projector or monitor, connect the VGA port to the display using a VGA cable (sold separately). The VGA port supports HD video resolutions up to 1920 x 1080 (1080p) at 60 Hz, 36-bit Deep Color (12 bits per channel) and VGA digital transfer rates up to 6.75 Gbps (2.25 Gbps per channel). The U444-06N-VB-AM is also compatible with non-1080p VGA displays.

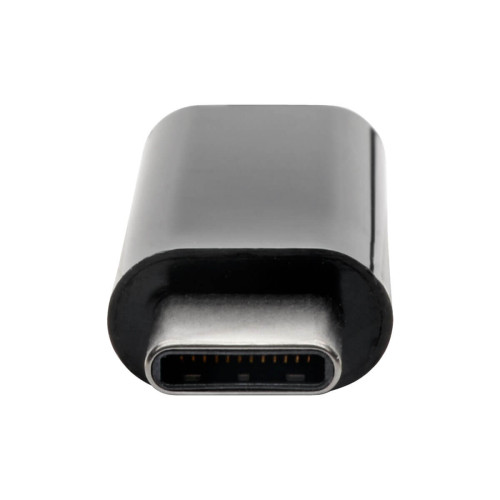

Built-In USB-C Cable Connects in Either Direction
Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.

Ready to Use Right Out of the Package
The plug-and-play Thunderbolt 3 and USB to VGA cord requires no software, drivers or external power. It’s about half the size of a credit card, making it easy to carry in a pocket, briefcase or laptop bag for connecting on the go.

3-Year Warranty and Environmentally Responsible Design
The U444-06N-VB-AM comes with a 3-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting commitment to environmental responsibility.
Design
Certification CE, FCC,REACH
Country of origin Vietnam
Product colour Black
Graphics
Maximum resolution 1920 x 1080 pixels
Number of displays supported 1
Logistics data
Harmonized System (HS) code 84733020
Master (outer) case gross weight 640 g
Master (outer) case GTIN (EAN/UPC) 10037332213324
Master (outer) case height 121.9 mm
Master (outer) case length 256.5 mm
Master (outer) case width 114.3 mm
Products per master (outer) case 10 pc(s)
Operational conditions
Operating relative humidity (H-H) 10 - 85%
Operating temperature (T-T) 0 - 45 °C
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -10 - 70 °C
Performance
DisplayPort output N
DVI output N
HDMI output N
USB connector gender Male
USB connector type USB Type-C
USB version 3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces
VGA (D-Sub) ports quantity 1
Sustainability
Sustainability certificates RoHS
Weight & dimensions
Depth 41.9 mm
Height 20.1 mm
Package depth 121.9 mm
Package height 20.1 mm
Package weight 90 g
Package width 99.1 mm
Weight 30 g
Width 38.1 mm

Write a review

Please login or register to review

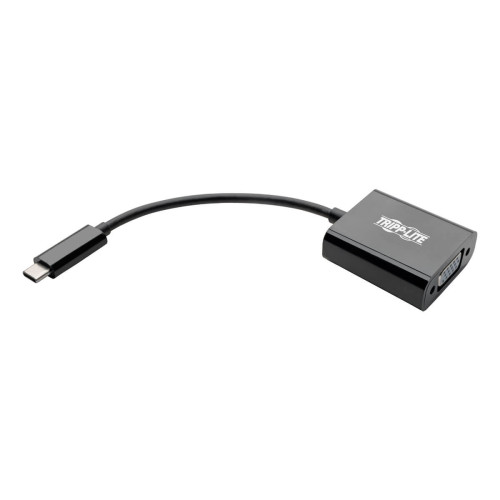

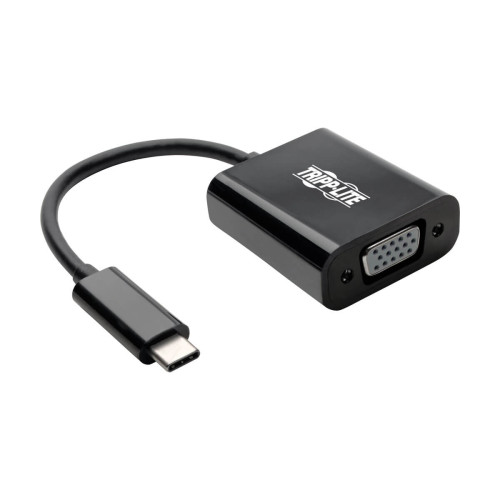

Tripp Lite U444-06N-VB-AM USB-C to VGA Adapter with Alternate Mode - DP 1.2, Black

  • Brand: Tripp-Lite
  • Product Code: U444-06N-VB-AM
  • Availability: In Stock
  • $29.94
