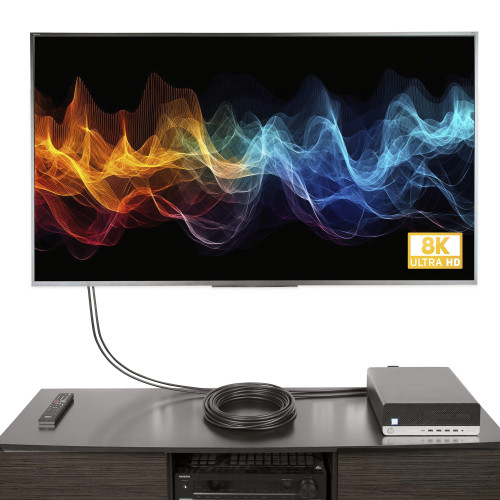

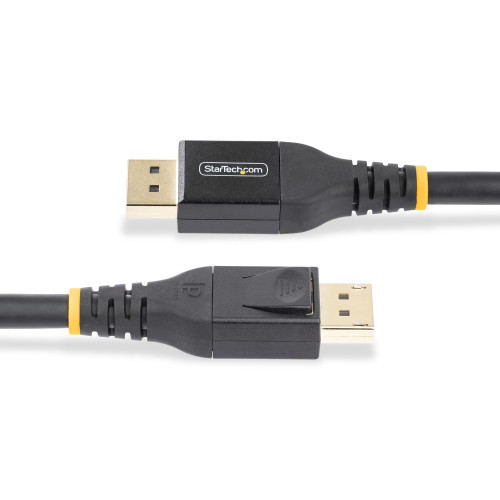

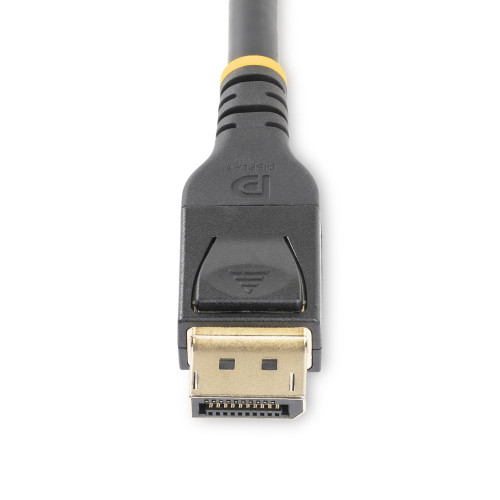

Facilitate a longer 8K connection without requiring an external power sourceConnect a 4K/8K DisplayPort 1.4-enabled monitor to a source or MST-enabled hub, using this VESA-Certified Active DisplayPort 1.4 Cable. The active signal booster delivers reliable audio and 8K video output at up to 25ft (7.6m) without a DisplayPort repeater and external power source. This active DP 1.4 cable is unidirectional with conveniently labeled connectors for source and display to simplify setup.VESA-Certified DP8KFor seamless performance and compatibility between DisplayPort-enabled devices, the Active DisplayPort Cable is VESA Certified, for guaranteed DP 1.4 support and backward compatibility with DP 1.3/1.2Durable DesignThis long DisplayPort cable features a flexible TPE outer jacket to reduce wear from corner bends and long cable runs. Robust strain reliefs enable soft and flexible bends, for convenient positioning of the cable. The latching DP connectors are gold plated for improved conductivity and anti-tarnish properties, and attaches securely to the device to prevent accidental disconnection.Supported DisplayPort 1.4 Features:This 8K DisplayPort cable supports all DP 1.4 features:• Resolutions up to 8K 60Hz, 4K 120Hz, 1440p 240Hz with a compatible DP source and display• HDCP 2.2 support• High Bit Rate 3 (HBR3) bandwidth of 32.4Gbps• High Dynamic Range 10 (HDR10)• Display Stream Compression 1.2 (DSC 1.2)• Multi-Stream Transport (MST) for daisy-chaining multiple monitors• 32 Uncompressed Digital Audio Channels• Backward compatible with 5K 60Hz, 4K 120Hz and previous DP versionsThe Active DP Cable is constructed with aluminum-mylar shielding to minimize EMI interference for clear and reliable audio/video output. This VESA-certified DP cable is designed for long-term reliability, and is the ideal solution for setting up boardrooms, video walls, and TV signage.The StarTech.com Advantage
Design
Product colour Black
Display
Maximum refresh rate 144 Hz
Features
AWG wire size 24/28
Bandwidth 32400 MB/s
Cable length 7.7 m
Cable material Copper
Cable shielding Aluminum mylar foil
Connector 1 DisplayPort
Connector 1 form factor Straight
Connector 1 gender Male
Connector 2 DisplayPort
Connector 2 form factor Straight
Connector 2 gender Male
Connector contacts plating Gold
Display Stream Compression (DSC) Y
Display Stream Compression (DSC) version 1.2
Fire-resistance rating VW-1
HBR3 support Y
HDCP Y
HDCP version 2.2
Jacket material Thermoplastic elastomer (TPE)
Multi-Stream Transport (MST) Y
Supported graphics resolutions 3840 x 2160, 7680 x 4320
Graphics
Maximum resolution 7680 x 4320 pixels
Logistics data
Master (outer) case height 290 mm
Master (outer) case length 380 mm
Master (outer) case width 430 mm
Products per master (outer) case 20 pc(s)
Operational conditions
Operating relative humidity (H-H) 0 - 85%
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Other features
Data transfer rate 25.92 Gbit/s
Ports & interfaces
DisplayPort version 1.4
Sustainability
Sustainability certificates RoHS
Sustainability compliance Y
Weight & dimensions
Cable diameter 7.5 mm
Package depth 252 mm
Package height 100 mm
Package weight 500 g
Package width 330 mm

Write a review

Please login or register to review

StarTech.com 25ft (7m) VESA-Certified Active DisplayPort 1.4 Cable, DP8K DisplayPort Cable w/HBR3, HDR10, MST, DSC 1.2, HDCP 2.2, 8K 60Hz, 4K 120Hz - DP 1.4 Cable M/M

  • Brand: StarTech.com
  • Product Code: DP14A-7M-DP-CABLE
  • Availability: In Stock
  • $96.12
