Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort™-equipped devicesThe StarTech.com Advantage
| Design | |
| Product colour | Black |
| Display | |
| Maximum refresh rate | 60 Hz |
| Features | |
| AWG wire size | 28 |
| Bandwidth | 21600 MB/s |
| Cable length | 2 m |
| Cable rating | CMG (CM) |
| Cable shielding | Aluminum mylar foil |
| Connector 1 | DisplayPort |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| Connector contacts plating | Nickel |
| DisplayPort Content Protection (DPCP) | Yes |
| HDCP | Yes |
| Jacket material | Polyvinyl chloride (PVC) |
| Latching connectors | Yes |
| Multi-Stream Transport (MST) | Yes |
| Number of conductors | 19 |
| Plug and Play | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2400, 2560 x 1600 (WQXGA) |
| Graphics | |
| Maximum resolution | 3840 x 2400 pixels |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case height | 280 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case width | 330 mm |
| Products per master (outer) case | 70 pc(s) |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Ports & interfaces | |
| DisplayPort version | 1.2 |
| Technical details | |
| Compliance certificates | RoHS, CE |
| Weight & dimensions | |
| Cable diameter | 7.3 mm |
| Package depth | 220 mm |
| Package height | 32 mm |
| Package weight | 151 g |
| Package width | 200 mm |
| Weight | 153.6 g |

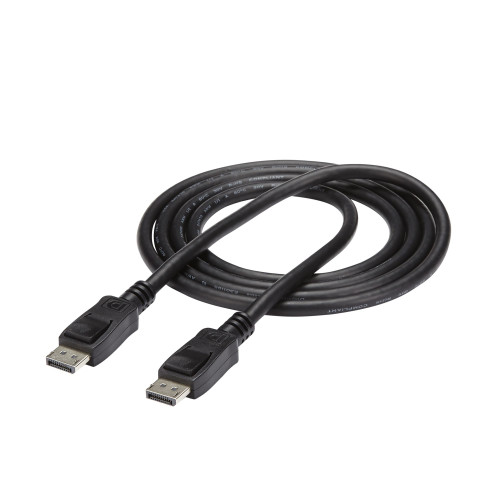

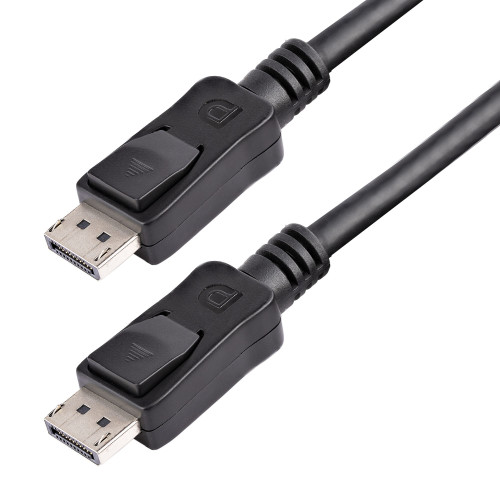

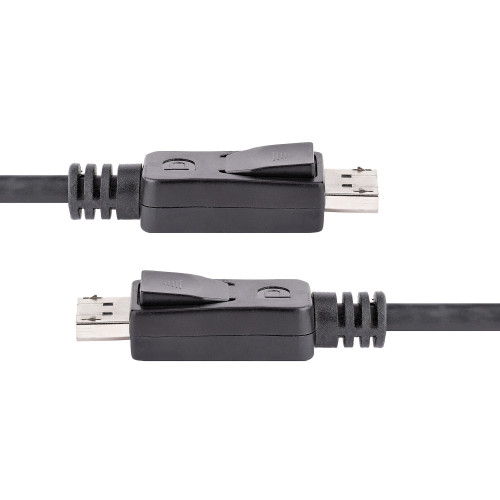

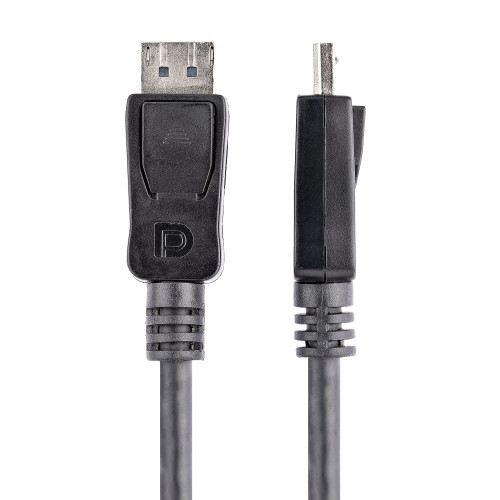

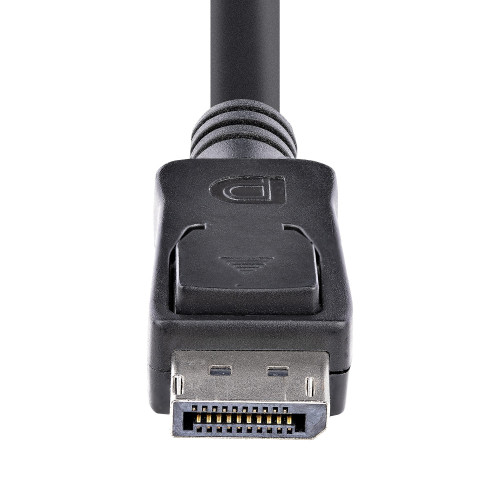

StarTech.com 2m (6ft) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified DisplayPort Cable - DP to DP Cable for Monitor - DP Video/Display Cord - Latching DP Connectors
- Brand: StarTech.com
- Product Code: DISPL2M
- Availability: In Stock
-
$14.38
