LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+This LC to LC Multimode Duplex Fiber Optic Patch cable offers reliable connections for 40GBase-SR4, 100GBase-SR10, SFP+ and QSFP+ transceivers in your 40 and 100 Gigabit networks.Built for PerformanceWith laser-optimized multimode fiber (LOMMF), the patch cable is ideal for 850 nm and 1350 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications.Maximum CompatibilityThis fiber-optic patch cord is backward compatible with your existing 50/125 equipment, ensuring a reliable connection with legacy LANs.High Quality ConstructionHoused in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.Each OM4 fiber cable is also individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.450FBLCLC7 is backed by a StarTech.com lifetime warranty and free lifetime technical support.The StarTech.com Advantage
Design
Product colour Aqua colour
Features
Cable length 7 m
Cladding diameter 125 µm
Connector 1 LC
Connector 1 gender Male
Connector 2 LC
Connector 2 gender Male
Core diameter 50 µm
Fiber mode structure Multi-mode
Fibre optic type OM4
Full duplex Y
Jacket material Low smoke zero halogen (LSZH)
Wavelengths supported 850 nm
Logistics data
Harmonized System (HS) code 85447000
Master (outer) case height 450 mm
Master (outer) case length 410 mm
Master (outer) case width 410 mm
Products per master (outer) case 120 pc(s)
Operational conditions
Operating temperature (T-T) -20 - 60 °C
Storage temperature (T-T) -20 - 60 °C
Other features
Data transfer rate 100 Gbit/s
Packaging data
Quantity per pack 1 pc(s)
Sustainability
Sustainability certificates RoHS, CE
Sustainability compliance Y
Technical details
Doesn't contain Halogen
Weight & dimensions
Package depth 200 mm
Package height 15 mm
Package weight 104 g
Package width 220 mm
Weight 94 g

Write a review

Please login or register to review

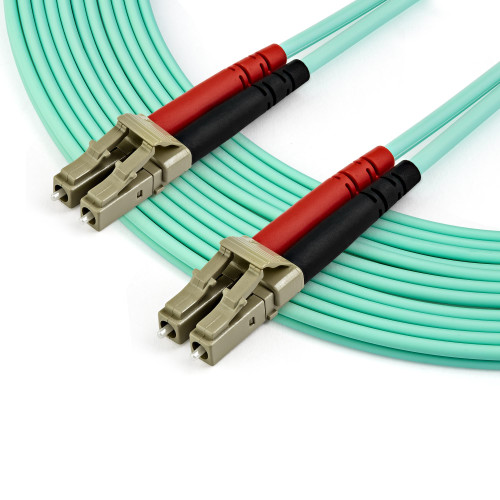

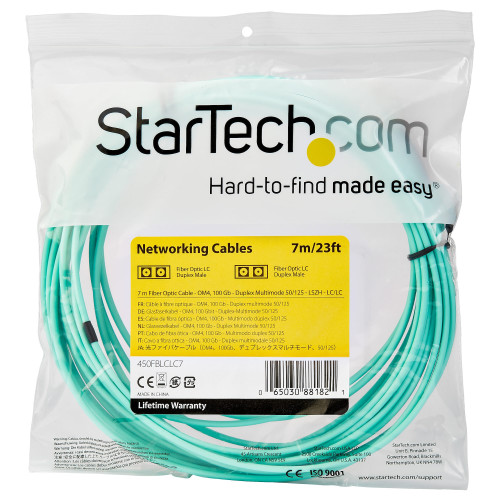

StarTech.com 7m (22ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm LOMMF/VCSEL Zipcord Fiber, 100G Networks, Low Insertion Loss, LSZH Fiber Patch Cord

  • Brand: StarTech.com
  • Product Code: 450FBLCLC7
  • Availability: In Stock
  • $31.31
