40/100/400 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking
The N858B-10M-3X8MG is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This multimode 50/125 OM4 cable is an ideal choice for 400 Gb Ethernet applications up to 100 meters (328 feet) at 850 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb or 400 Gb.
Magenta-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has a magenta jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. The connectors’ slim boots and magenta housings allow easy one-handed installation and removal of the cable.
The N858B-10M-3X8MG is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This multimode 50/125 OM4 cable is an ideal choice for 400 Gb Ethernet applications up to 100 meters (328 feet) at 850 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb or 400 Gb.
Magenta-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has a magenta jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. The connectors’ slim boots and magenta housings allow easy one-handed installation and removal of the cable.
| Design | |
| Country of origin | China |
| Product colour | Black, Magenta |
| Features | |
| Cable length | 10 m |
| Cable type | OFNR |
| Cladding diameter | 125 µm |
| Connector 1 | 3x MTP/MPO |
| Connector 1 gender | Female |
| Connector 2 | 3x MTP/MPO |
| Connector 2 gender | Female |
| Connector polish type | PC |
| Core diameter | 50 µm |
| Fiber mode structure | Multi-mode |
| Fibre optic type | OM4 |
| Insertion loss | 0.35 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Wavelengths supported | 850,1300 nm |
| Logistics data | |
| Harmonized System (HS) code | 8544.70.0000 |
| Master (outer) case gross weight | 4.03 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332273175 |
| Master (outer) case height | 154.9 mm |
| Master (outer) case length | 309.9 mm |
| Master (outer) case width | 375.9 mm |
| Products per master (outer) case | 10 pc(s) |
| Network | |
| Ethernet interface type | 40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Other features | |
| Data transfer rate | 400 Gbit/s |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Sustainability | |
| Sustainability certificates | RoHS, UL ECOLOGO, CE, REACH |
| Sustainability compliance | Y |
| Weight & dimensions | |
| Bending radius | 2 cm |
| Cable diameter | 4.5 mm |
| Package depth | 12.7 mm |
| Package height | 304.8 mm |
| Package weight | 380 g |
| Package width | 266.7 mm |

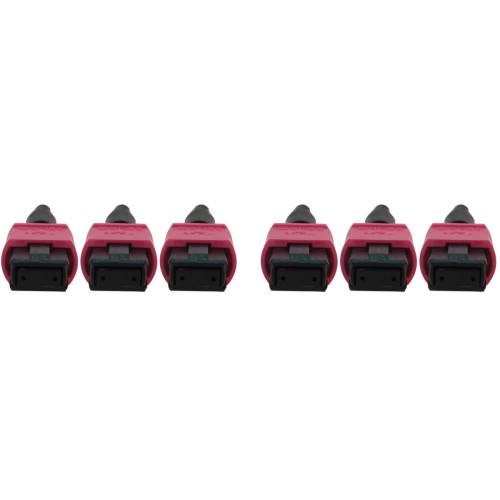

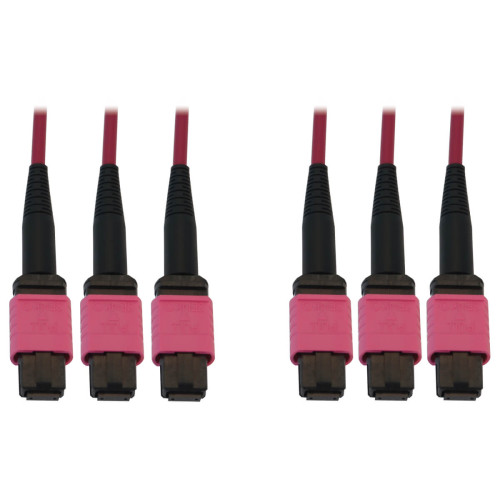

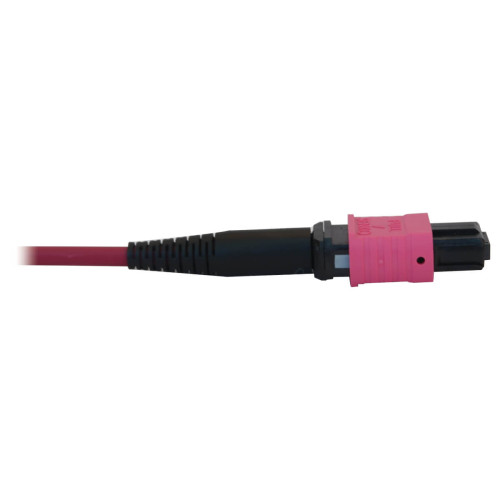

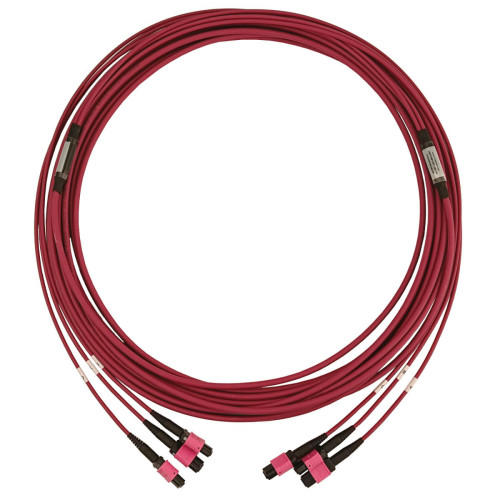

Tripp Lite N858B-10M-3X8MG 40/100/400G Multimode 50/125 OM4 Fiber Optic Cable (3x8F MTP/MPO-PC F/F), LSZH, Magenta, 10 m (32.8 ft.)
- Brand: Tripp-Lite
- Product Code: N858B-10M-3X8MG
- Availability: In Stock
-
$606.15
