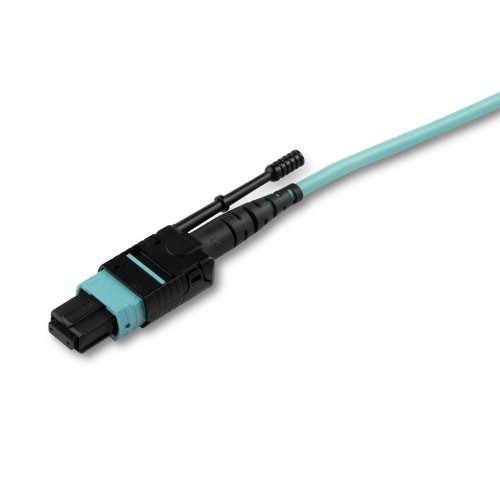

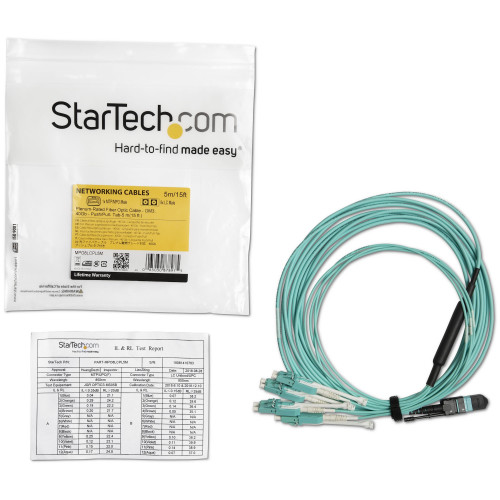

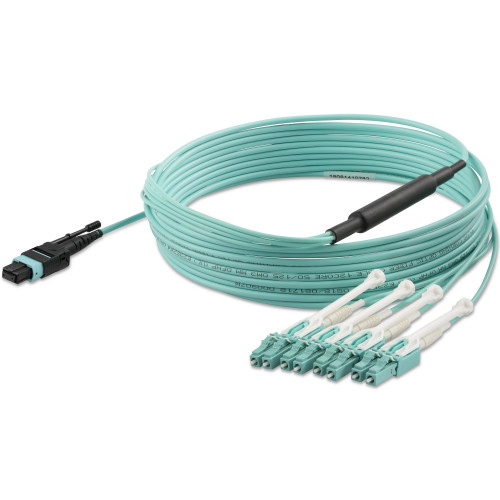

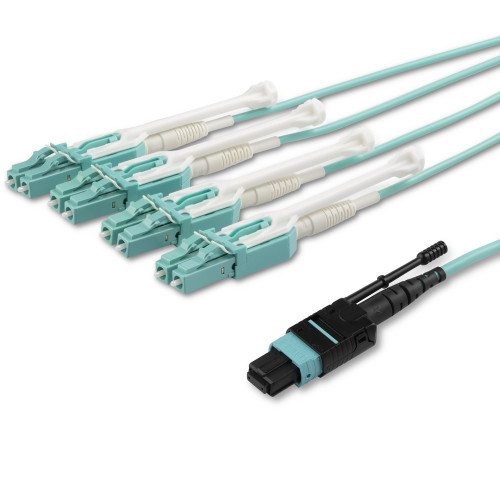

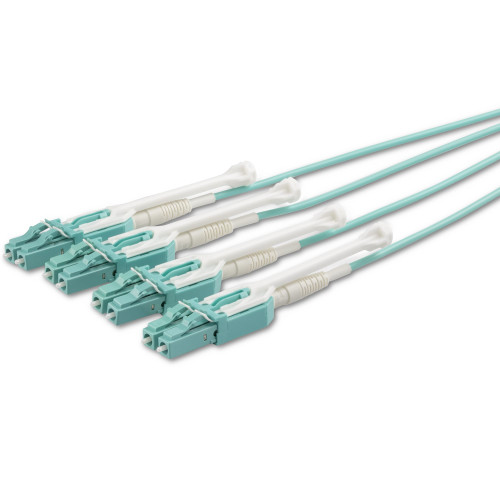

Plenum Rated | OFNP Fiber | Ideal for SANs, data servers, QSFP+This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.The MPO8LCPL5M from StarTech.com is backed by a lifetime warranty.The StarTech.com Advantage
| Design | |
| Product colour | Aqua colour |
| Features | |
| Cable length | 5 m |
| Cladding diameter | 125 µm |
| Connector 1 | MPO/MTP |
| Connector 1 gender | Male |
| Connector 2 | 8x LC |
| Connector 2 gender | Male |
| Core diameter | 50 µm |
| Fiber mode structure | Multi-mode |
| Fibre optic type | OM3 |
| Logistics data | |
| Harmonized System (HS) code | 85447000 |
| Master (outer) case height | 195 mm |
| Master (outer) case length | 385 mm |
| Master (outer) case width | 280 mm |
| Products per master (outer) case | 40 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 70 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Other features | |
| Data transfer rate | 40 Gbit/s |
| Sustainability | |
| Sustainability certificates | RoHS, CE |
| Sustainability compliance | Y |
| Weight & dimensions | |
| Package depth | 220 mm |
| Package height | 10 mm |
| Package weight | 78 g |
| Package width | 200 mm |
| Weight | 84.2 g |
StarTech.com 5m (15ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, OFNP, 8F Type-A, 50/125µm LOMMF, 40G Networks, Low Insertion Loss, MPO to LC Fiber Patch Cord
- Brand: StarTech.com
- Product Code: MPO8LCPL5M
- Availability: In Stock
-
$154.36
