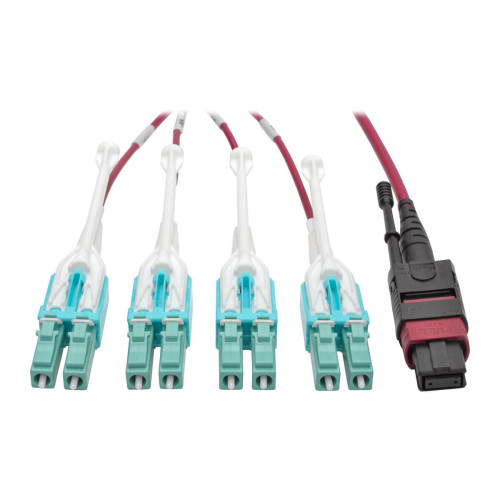

The five-meter N845-05M-8L-MG MTP/MPO to 8xLC Fan-Out Patch Cable supports 40 Gb Ethernet speeds and is designed for high-density connections between 40GBASE-SR4 network equipment. With one male MTP/MPO and eight male LC connectors, this OM4-rated multimode fiber optic fan-out cable supports various multi- and single-fiber connections. It fully transmits 40GBASE-SR with four fibers transmitting at 10 Gbps in each direction. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections.

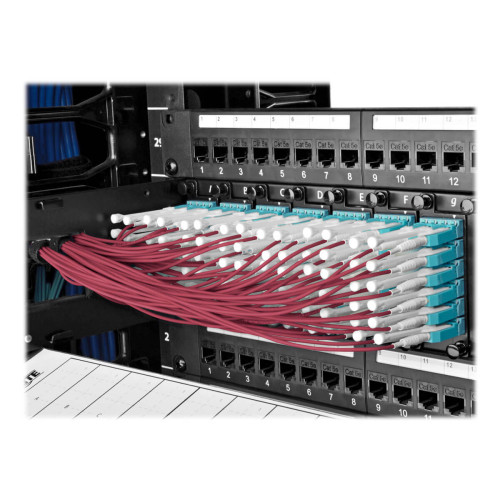

Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The magenta-colored N845-05M-8L-MG features a premium-grade ceramic ferrule for 10 GbE and faster applications. The slim, space-saving uniboot design makes cable easier to manage. The plenum-rated jacket is perfect for connecting high-speed network components in ceilings, walls and ducts. The sturdy plastic housing is built to last a long time.

OM4-Rated for 40 Gb Ethernet Applications
Connects 4 10Gb duplex LC devices to a 40Gb MTP port on a network switch
Designed for high-density connections between 40GBASE-SR4 network equipment
Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
Multimode fiber optic fan-out cable supports various multi- and single-fiber connections.
Fully transmits 40GBASE-SR with four fibers transmitting at 10 Gbps in each direction
Magenta-colored for identification as an OM4 cable

MTP/MPO and LC Connectors with Push/Pull Tabs

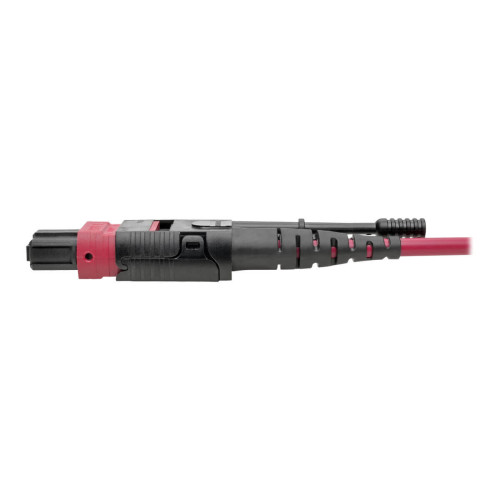

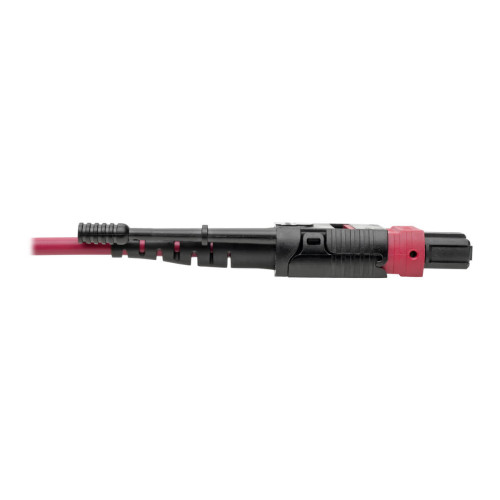

1 male MTP/MPO and 8 male LC connectors
Push/pull tab connectors easy to install and remove with one hand

Error-Free Signal Transfer
Premium-grade ceramic ferrule for 10 GbE and faster applications
Slim, space-saving uniboot design makes cable easier to manage
Plenum-rated jacket for connecting in ceilings, walls and ducts
Sturdy plastic housing built to last a long time
