Connect Your Computer’s DisplayPort and USB Ports to a KVM Switch

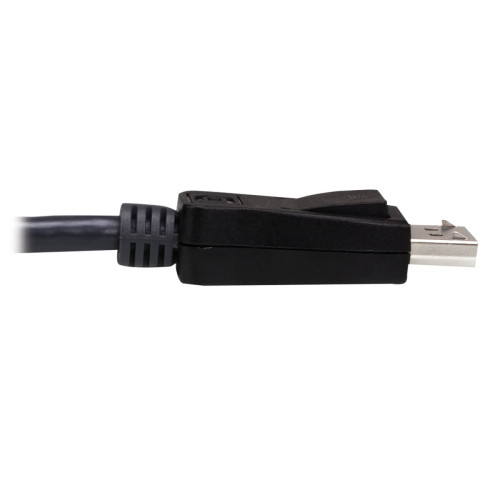

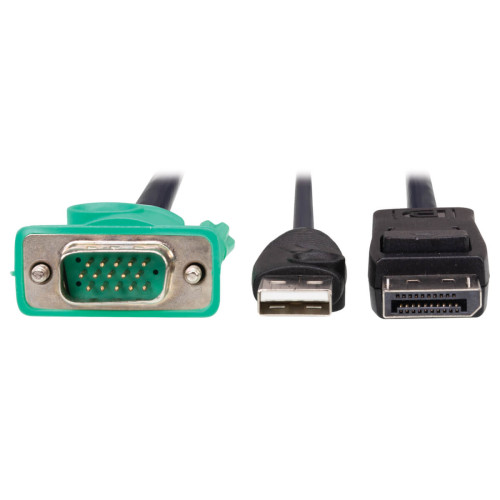

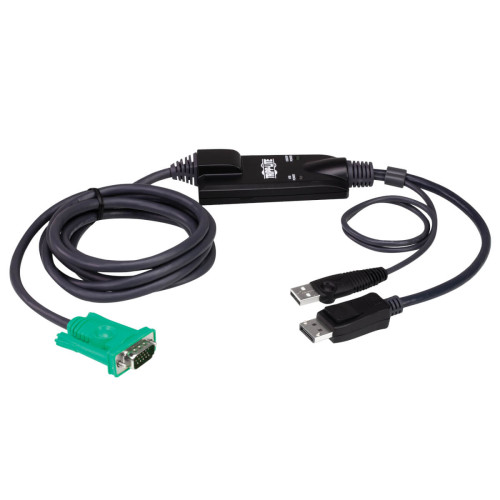

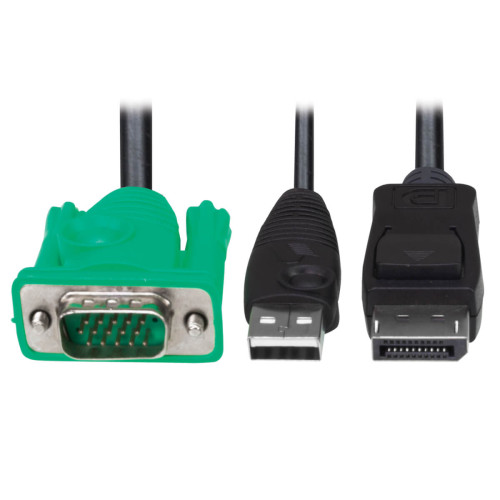

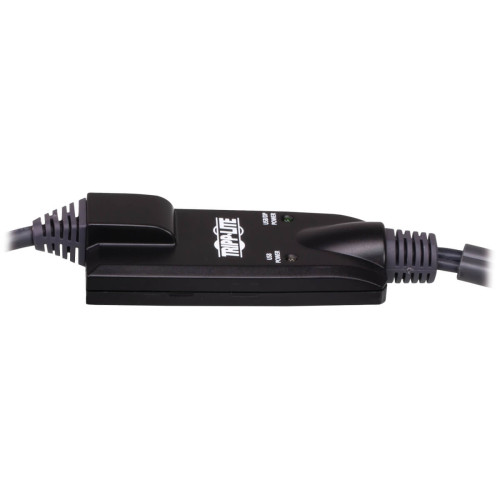

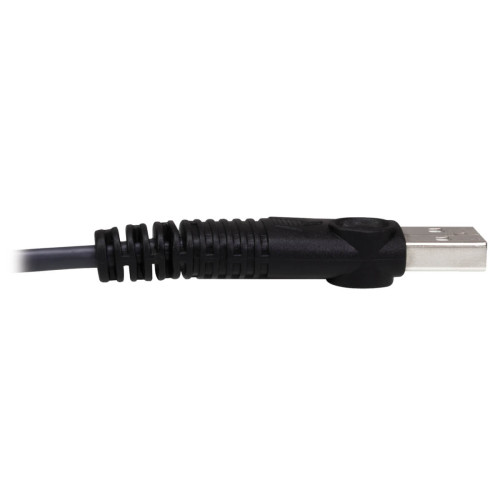

This convenient cable kit saves you money by combining necessary cables into one bunch. For use with B020-U and B022-U KVM switches, the P778-006-DP features male DisplayPort and USB-A connectors for your server or computer and a male HD15 connector for the KVM. The DisplayPort 1.1-compliant cable supports HD resolutions up to 1920 x 1080 (1080p) at 60 Hz with 36-bit Deep Color. The USB 2.0 cable supports 480 Mbps speeds. The bus-powered cable kit requires no software or external power adapter. A sliding switch on the back of the housing lets you decide between USB power mode or USB + DP power mode with LEDs indicating which mode you have chosen.
This convenient cable kit saves you money by combining necessary cables into one bunch. For use with B020-U and B022-U KVM switches, the P778-006-DP features male DisplayPort and USB-A connectors for your server or computer and a male HD15 connector for the KVM. The DisplayPort 1.1-compliant cable supports HD resolutions up to 1920 x 1080 (1080p) at 60 Hz with 36-bit Deep Color. The USB 2.0 cable supports 480 Mbps speeds. The bus-powered cable kit requires no software or external power adapter. A sliding switch on the back of the housing lets you decide between USB power mode or USB + DP power mode with LEDs indicating which mode you have chosen.
| Camera | |
| Maximum video resolution | 1920 x 1080 pixels |
| Design | |
| Country of origin | China |
| Product colour | Black, Green |
| Features | |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable length | 1.83 m |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Logistics data | |
| Harmonized System (HS) code | 8544.42.2000 |
| Master (outer) case gross weight | 11.2 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332263350 |
| Master (outer) case height | 337.8 mm |
| Master (outer) case length | 338.1 mm |
| Master (outer) case width | 490 mm |
| Products per master (outer) case | 40 pc(s) |
| Ports & interfaces | |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Weight & dimensions | |
| Package depth | 119.1 mm |
| Package height | 61 mm |
| Package weight | 320 g |
| Package width | 160 mm |
Tripp Lite P778-006-DP VGA to DisplayPort and USB-A Adapter Cable Kit for B020-U and B022-U KVM, 6 ft. (1.8 m)
- Brand: Tripp-Lite
- Product Code: P778-006-DP
- Availability: In Stock
-
$66.88
