Needed to connect a PS/2 Server to a B070 / B072-Series NetCommander KVM switch via Cat5e cable
Eliminates the need for thicker, heavier KVM cables
Compact, lightweight design
Plug and Play; no software required
No power supply required
Allows a Server/CPU to be located up to 100-ft. (30.5 m) away from the KVM switch
To convert DisplayPort or HDMI computers to VGA, use adapters P134-06N-VGA-V2 or P131-06N
Eliminates the need for thicker, heavier KVM cables
Compact, lightweight design
Plug and Play; no software required
No power supply required
Allows a Server/CPU to be located up to 100-ft. (30.5 m) away from the KVM switch
To convert DisplayPort or HDMI computers to VGA, use adapters P134-06N-VGA-V2 or P131-06N
| Design | |
| Country of origin | Taiwan |
| Product colour | Black, Blue, Green, Violet |
| Features | |
| Cable colour | Black |
| Logistics data | |
| Harmonized System (HS) code | 8471.80.1000 |
| Master (outer) case gross weight | 6.53 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332148435 |
| Master (outer) case height | 388.6 mm |
| Master (outer) case length | 337.8 mm |
| Master (outer) case width | 350.5 mm |
| Products per master (outer) case | 50 pc(s) |
| Performance | |
| Console port | RJ-45 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Package depth | 149.9 mm |
| Package height | 27.9 mm |
| Package weight | 110 g |
| Package width | 130 mm |

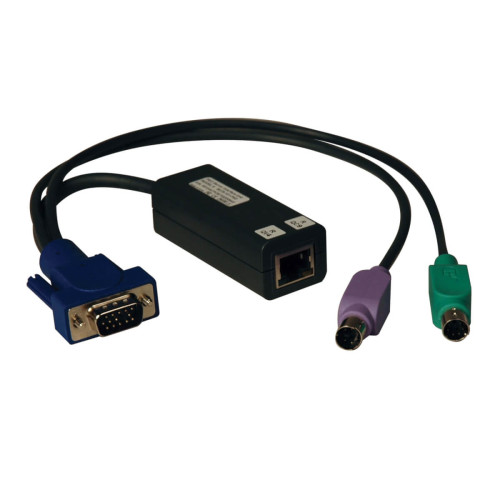

Tripp Lite B078-101-PS2 NetCommander PS2 Server Interface Unit (SIU)
- Brand: Tripp-Lite
- Product Code: B078-101-PS2
- Availability: In Stock
-
$72.64
