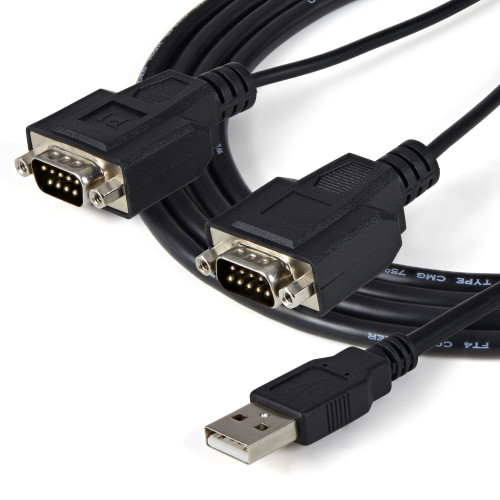

The ICUSB2322F 2-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into 2 RS232 serial DB9 ports to connect, monitor and control your serial devices.
This compact adapter features COM retention, allowing the same COM port values to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. Unlike most USB-serial adapters, this one uses the FTDI chipset, which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.
This USB-serial adapter is compatible with a broad list of Operating Systems, including Windows®, Windows CE, Mac OS and Linux, making this product the perfect solution for integrating into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Simple installation and operation with COM port retention provides robust connectivity for serial devices
- Portable USB-Powered design requires no bulky power adapter or outlet
- The FTDI chipset is highly customizable and compatible, making it the ideal solution for any setup
This compact adapter features COM retention, allowing the same COM port values to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. Unlike most USB-serial adapters, this one uses the FTDI chipset, which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.
This USB-serial adapter is compatible with a broad list of Operating Systems, including Windows®, Windows CE, Mac OS and Linux, making this product the perfect solution for integrating into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Simple installation and operation with COM port retention provides robust connectivity for serial devices
- Portable USB-Powered design requires no bulky power adapter or outlet
- The FTDI chipset is highly customizable and compatible, making it the ideal solution for any setup
| Design | |
| Product colour | Black |
| Features | |
| Cable length | 2.1 m |
| Chipset | FTDI - FT2232D |
| Connector 1 | USB 2.0 A |
| Connector 1 gender | Male |
| Connector 2 | 2 x DB-9 |
| Connector 2 gender | Male |
| FIFO (First In, First Out) | 128 B |
| Parity bit | Even, Mark, N, Odd, Space |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case height | 323 mm |
| Master (outer) case length | 511 mm |
| Master (outer) case width | 402 mm |
| Products per master (outer) case | 40 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Packaging content | |
| Manual | Y |
| Packaging data | |
| Drivers included | Y |
| Quantity per pack | 1 pc(s) |
| Performance | |
| Linux operating systems supported | Y |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Sustainability | |
| Sustainability certificates | CE, RoHS |
| Sustainability compliance | Y |
| System requirements | |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Technical details | |
| Baud rate | 921.6 Kbit/s |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Weight & dimensions | |
| Package depth | 212 mm |
| Package height | 39 mm |
| Package weight | 280 g |
| Package width | 146 mm |
| Weight | 156 g |
StarTech.com 2 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention
- Brand: StarTech.com
- Product Code: ICUSB2322F
- Availability: In Stock
-
$59.29
