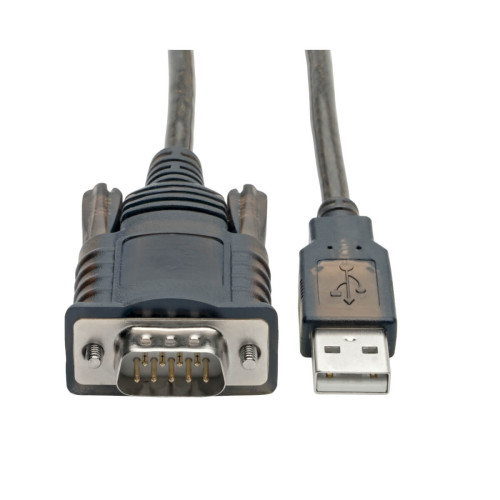

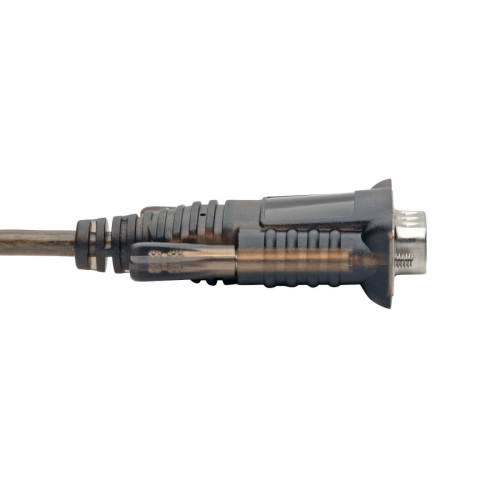

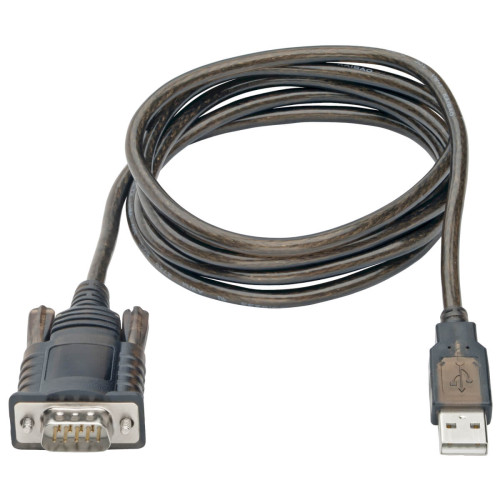

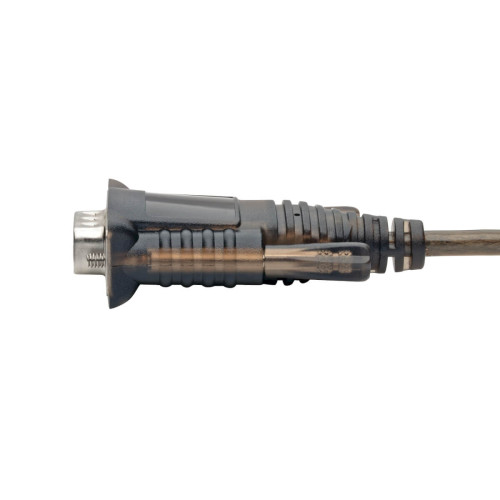

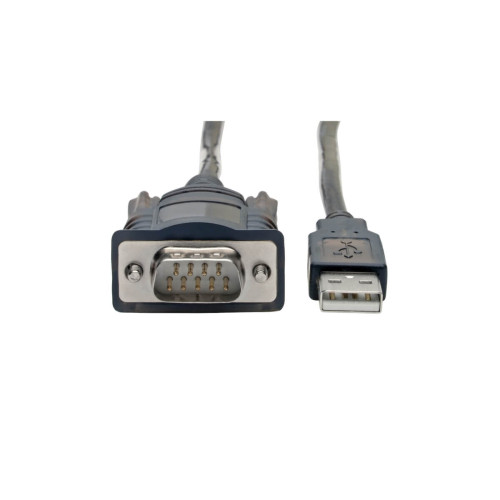

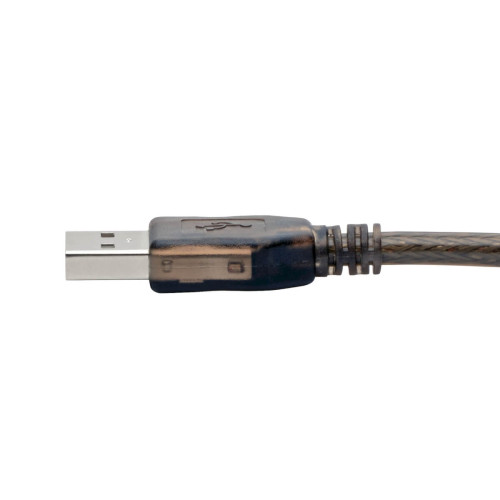

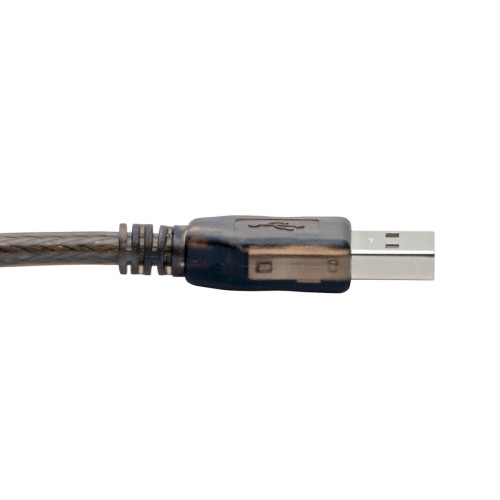

Connects a Barcode Scanner or Other DTE Serial Device to Your Computer’s USB-A Port

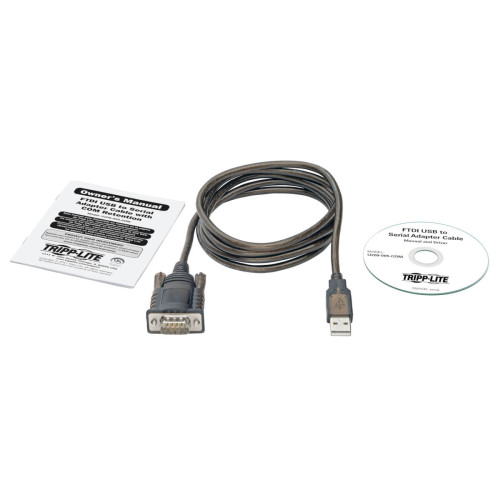

This five-foot serial RS232 to USB adapter cable turns your computer’s USB port into an RS232 serial port and avoids the expense of upgrading your reliable serial devices. No external power source is needed. Just connect the cable to your computer and insert the included CD into your computer’s CD drive in order to launch the driver and assign the cable a COM port. It supports USB 2.0 specifications and data transfer speeds up to 230 Kbps, which is almost twice as fast as a built-in serial port. It is backward compatible with USB 1.1 devices.

COM Retention Feature for Convenient Reassigning of COM Values to Ports
The hot-swappable RS232-port-to-USB adapter with built-in FTDI chipset offers COM retention. It automatically reassigns the same COM port values to each port, so when the cable is disconnected or the system is rebooted, no additional configuration is needed. The cable also supports remote wake-up and power management.

Double Shielding Protects Your Data from Destructive Line Noise
Foil and braid shielding helps fight against electromagnetic interference and radio frequency interference (EMI/RFI) that impedes your signal and can distort or destroy data. The auto-sensing feature solves DCE/DTE conflicts without the need for cross-wired serial cables or adapters.

3-Year Warranty
The U209-005-COM is backed by a 3-year warranty, ensuring reliability and performance.
Design
Certification CE, FCC, REACH, WEEE
Country of origin China
Product colour Black
Features
Cable length 1.52 m
Connector 1 USB Type-A
Connector 1 gender Male
Connector 2 DB-9
Connector 2 gender Male
Connector contacts plating Nickel/Gold
Logistics data
Harmonized System (HS) code 84733080
Master (outer) case gross weight 1.3 kg
Master (outer) case GTIN (EAN/UPC) 10037332210224
Master (outer) case height 115.1 mm
Master (outer) case length 134.9 mm
Master (outer) case width 329.9 mm
Products per master (outer) case 10 pc(s)
Packaging data
Quantity per pack 1 pc(s)
Sustainability
Sustainability certificates RoHS
Weight & dimensions
Package depth 104.9 mm
Package height 31 mm
Package weight 110 g
Package width 118.1 mm
Weight 70 g

Write a review

Please login or register to review

Tripp Lite U209-005-COM RS232 to USB Adapter Cable with COM Retention (USB-A to DB9 M/M), FTDI, 5 ft. (1.52 m)

  • Brand: Tripp-Lite
  • Product Code: U209-005-COM
  • Availability: In Stock
  • $26.28


Specs: Icecat
