Connect your VGA monitor with the highest quality connection available

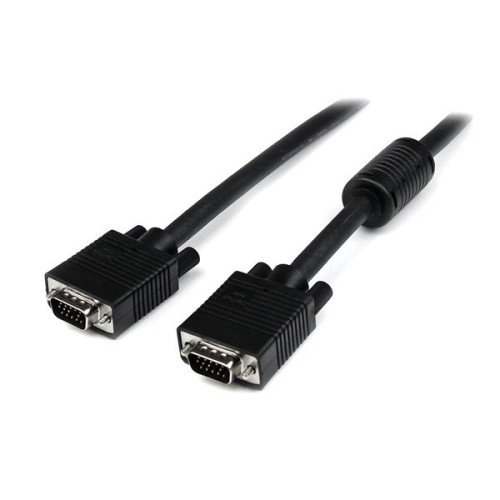

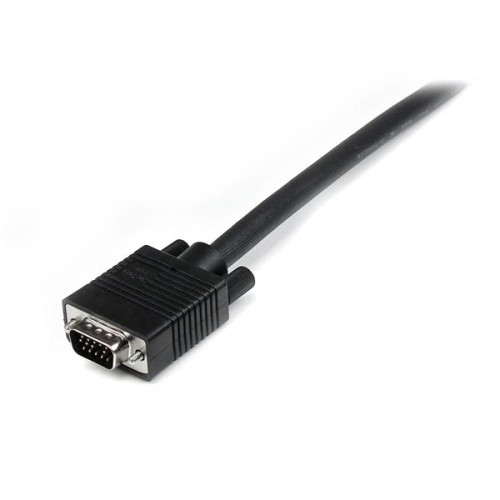

The MXT101MMHQ25 High Resolution VGA Cable (25ft) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
The StarTech.com Advantage
- Extends your VGA signal to work with your monitor, splitters, and projectors
- Supports high resolution VGA video (1920x1200 or above), suitable for a wide range of applications

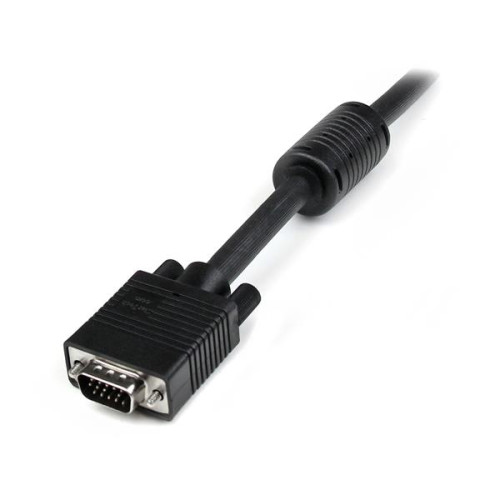

- Ferrite cores help eliminate EMI interference
- Backed by StarTech.com lifetime warranty
The MXT101MMHQ25 High Resolution VGA Cable (25ft) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
The StarTech.com Advantage
- Extends your VGA signal to work with your monitor, splitters, and projectors
- Supports high resolution VGA video (1920x1200 or above), suitable for a wide range of applications
- Ferrite cores help eliminate EMI interference
- Backed by StarTech.com lifetime warranty
| Design | |
| Certification | UL2919 |
| Product colour | Black |
| Features | |
| AWG wire size | 28 |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable length | 7.6 m |
| Cable rating | CMG (CM) |
| Cable shielding | Aluminum mylar foil |

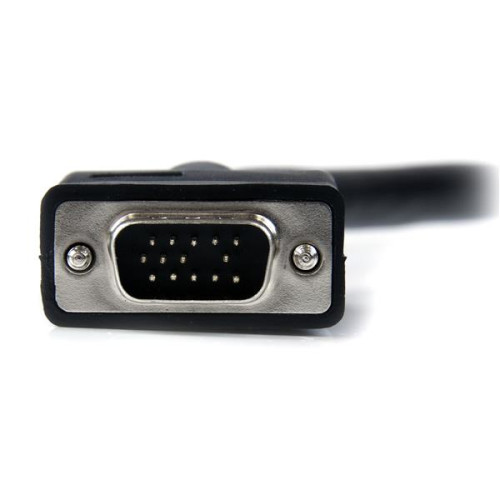

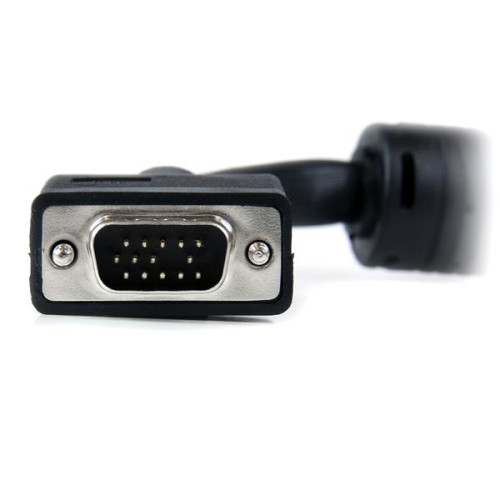

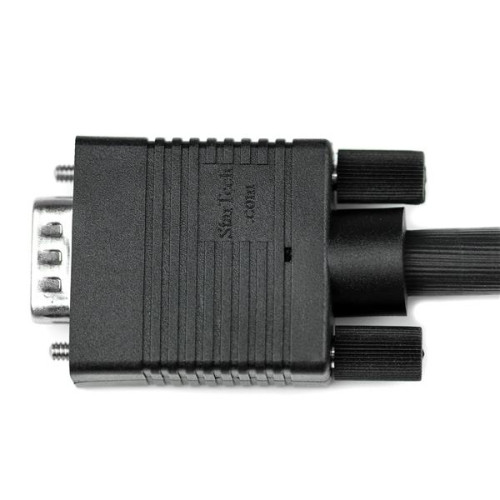

| Connector 1 | VGA (D-Sub) |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | VGA (D-Sub) |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| Connector contacts plating | Nickel |
| Ferrite bead | Y |
| Impedance | 75 Ω |
| Number of conductors | 14 |
| Plug and Play | Y |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Cable diameter | 9 mm |
| Package depth | 245 mm |
| Package height | 312 mm |
| Package weight | 820 g |
| Package width | 42 mm |
| Weight | 818 g |
StarTech.com 25 ft Coax High Resolution Monitor VGA Cable - HD15 M/M
- Brand: StarTech.com
- Product Code: MXT101MMHQ25
- Availability: In Stock
-
$20.42
