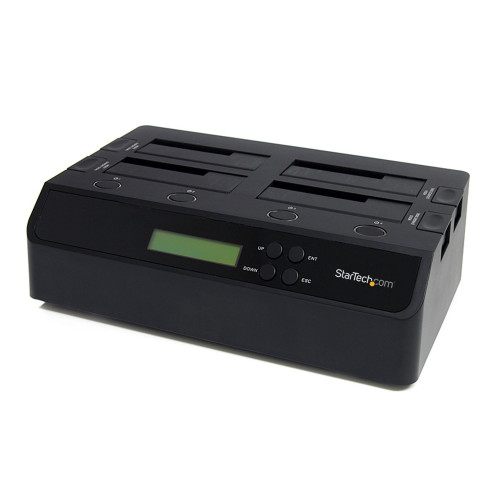

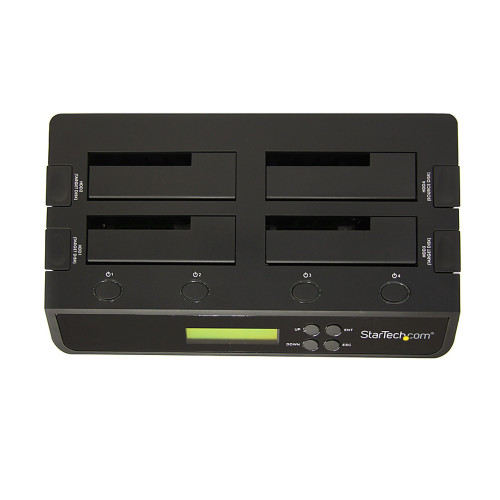

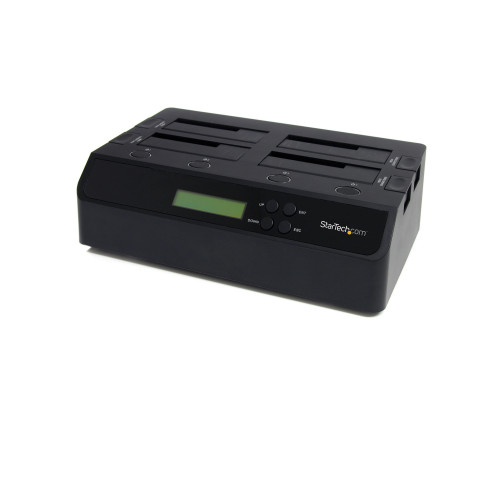

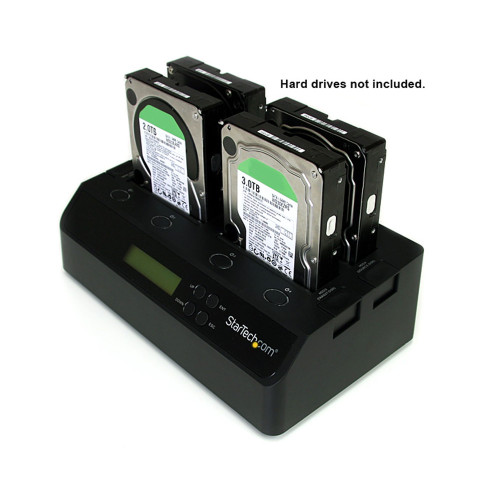

Duplicate one SATA Hard Drive onto three Hard Drives simultaneously

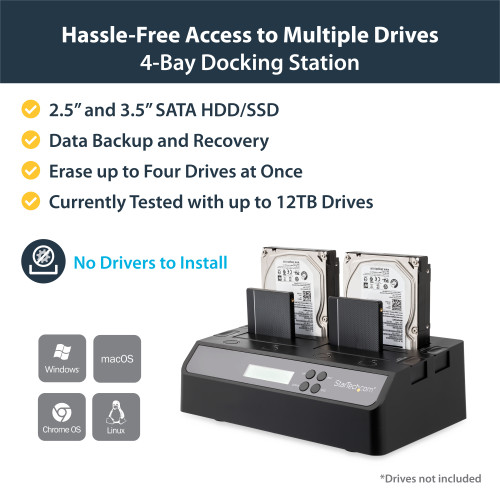

The SATDOCK4U3RE USB 3.0 and eSATA 1-to-3 Hard Drive Duplicator docking station enables you to duplicate/clone a single SATA hard drive to up to three other SATA drives simultaneously, as a standalone device. The duplicator can also function as a regular 4-bay hard drive docking station, by connecting to a host computer system. Large capacity drives (tested with up to 4TB 3.5" and 1TB 2.5" drives per bay) can be used to greatly enhance your computer's storage/backup capabilities.

Able to perform 1:3 sector duplication, including HPA, from a single SATA drive onto three others simultaneously (at a rate of up to 72 MBps), the duplicator/docking station can save you time and effort. As an external HDD dock, it can be connected to your host computer through USB 3.0 or eSATA, providing data transfer speeds up to 5 Gbps or 3Gbps respectively, from the hard drives to your computer system.

Features Quick and Secure Erase functions and support for IDE hard drives using the included SATA to IDE hard drive adapter (SAT2IDEADP).

The StarTech.com Advantage

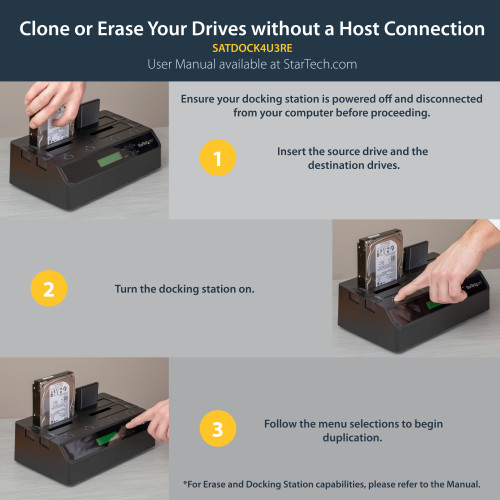

- Create 3 exact copies of a source SATA drive simultaneously, without having to connect to a computer
- Access up to 4 SATA hard drives simultaneously over a single USB 3.0 or eSATA connection
- Dual, variable speed fans allows you to adjust the amount of cooling for any kind of environment or drive type
Design
Certification CE
Housing material Plastic
LED indicators Activity, Power
Product colour Black
Product type HDD duplicator
Supported HDD sizes 2.5,3.5"
Display
Display LCD
Features
Chipset JMicron - JMB394 + JMS539
Fan diameter 6 cm
Number of fans 2 fan(s)
Plug and Play Y
Hard drive
Supported HDD interfaces Serial ATA, Serial ATA II
Logistics data
Master (outer) case height 475 mm
Master (outer) case length 368 mm
Master (outer) case width 364 mm
Products per master (outer) case 4 pc(s)
Operational conditions
Operating relative humidity (H-H) 8 - 90%
Operating temperature (T-T) 5 - 80 °C
Storage temperature (T-T) -40 - 70 °C
Other features
AC adapter included Y

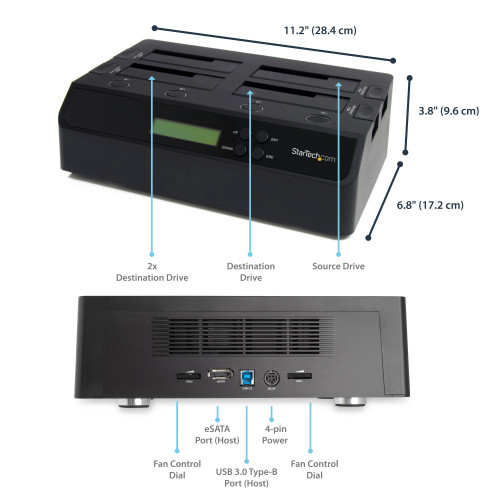

Dimensions (WxDxH) 285 x 170 x 94 mm

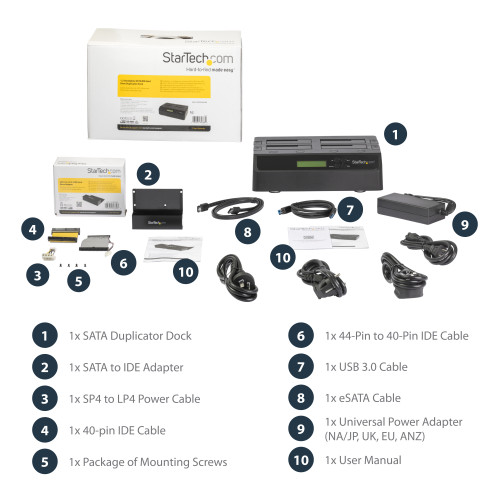

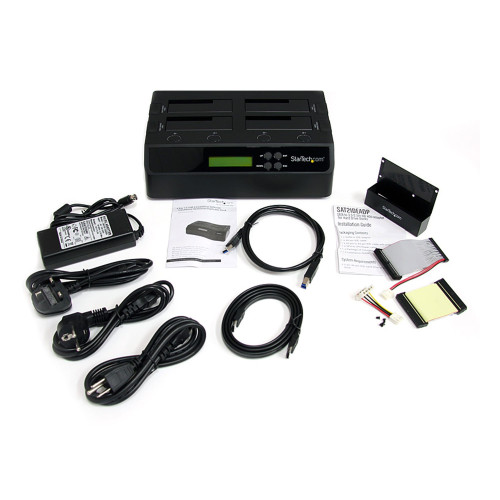

Packaging content
Cables included SATA, USB, eSATA
Included power plug types EU, NA, UK
Manual Y
Performance
Compatible operating systems Windows 2000/ XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ 7(32/64-bit)/ Server 2008 R2, Mac OS X, Linux
USB connector type USB Type-B
Ports & interfaces

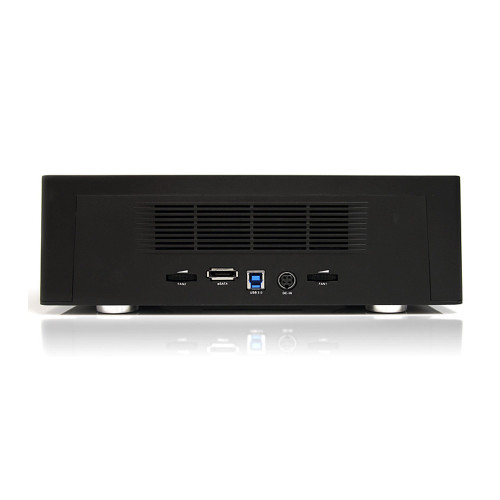

Interface USB/eSATA
Port multiplier Y
Power
AC input voltage 110-240 V
Output current 6.5 A
Output voltage 12 V
Power consumption (typical) 78 W
Sustainability
Sustainability certificates RoHS
Technical details
Duplicator operating modes Copy
Maximum supported storage capacity 16 TB
Number of simultaneous copies 3 copies
Weight & dimensions
Package depth 343 mm
Package height 215 mm
Package weight 2.73 kg
Package width 170 mm
Weight 1.1 kg

Write a review

Please login or register to review

StarTech.com 4 Bay USB 3.0 eSATA to SATA Standalone 1:3 HDD Hard Drive Duplicator Dock

  • Brand: StarTech.com
  • Product Code: SATDOCK4U3RE
  • Availability: In Stock
  • $523.73
