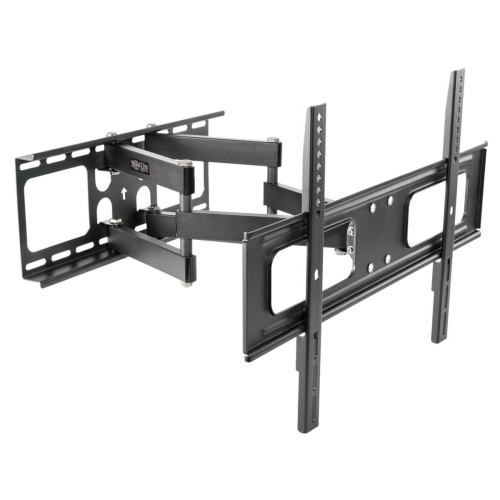

Outdoor TV Wall Mount Positions Your Monitor at the Perfect Viewing Angle
This VESA-compliant full-motion TV wall mount lets you place your outdoor display signage or television where everyone can see it best. It’s ideal for decks, balconies, patios, swimming pools, urgent care facilities, billboards, marquees, hotels, malls, theme parks, transportation hubs and anywhere else people watch a television set or monitor outdoors. It fits most flat-panel TVs from 37 to 80 inches and supports up to 110 pounds (50 kg).


Swivel and Tilt the Screen to Find the Perfect and Most Comfortable Viewing Angle
The full-motion articulating arm adjusts independently to optimize viewing angles, minimize glare and improve ergonomics. To minimize screen glare, reduce eye fatigue and increase viewing comfort, the mount features -20° to +10° tilt and -90° to +90° swivel for positioning your screen just right. Easy -3° to +3° screen adjustment lets you quickly find just the right angle without interrupting your day.


VESA-Compliant Mounting Ensures Display Compatibility
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this TV wall mount supports the following VESA mounting hole patterns: 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400 and 600 x 400. Hardware for mounting on wood or concrete block is included.


Sure to Stand Up Against Weather and Other Outdoor Elements
The weatherproof steel frame, high-grade powder-coated finish, stainless steel hardware and wall plate covers are specifically designed to withstand the stress of repeated adjustments and outdoor use. Monitor cables clip to the arm to eliminate clutter and keep your outdoor setting organized.
Design
Certification REACH
Country of origin China
Housing material Steel
Panel mounting interface 200 x 200,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400
Product colour Black
Display
Tilt adjustment Y
Tilt angle range -20 - 10°
Ergonomics
Swivel angle range -90 - 90°
Features
Cable management N
Maximum screen size 2.03 m (80")
Maximum weight capacity 50 kg
Graphics
Number of displays supported 1
Logistics data
Harmonized System (HS) code 85299097
Master (outer) case gross weight 15.7 kg
Master (outer) case GTIN (EAN/UPC) 10037332258790
Master (outer) case height 759.5 mm
Master (outer) case length 149.9 mm
Master (outer) case width 238.8 mm
Products per master (outer) case 2 pc(s)
Mounting
Maximum VESA mount 600 x 400 mm
Minimum VESA mount 200 x 200 mm
Mounting type Wall
Other features
Minimum screen size 94 cm (37")
Packaging content
Hex key included Y
Manual Y
Number of hex keys included 2
Packaging data
Mounting kit Y
Sustainability
Sustainability certificates RoHS
Weight & dimensions
Depth 429.3 mm
Depth (max) 42.9 cm
Height 510.5 mm
Package depth 66 mm
Package height 739.1 mm
Package weight 7.6 kg
Package width 218.4 mm
Weight 6.99 kg
Width 660.4 mm

Write a review

Please login or register to review

Tripp Lite DWM3780XOUT Outdoor Full-Motion TV Wall Mount with Fully Articulating Arm for 37” to 80” Flat-Screen Displays

  • Brand: Tripp-Lite
  • Product Code: DWM3780XOUT
  • Availability: In Stock
  • $216.62
