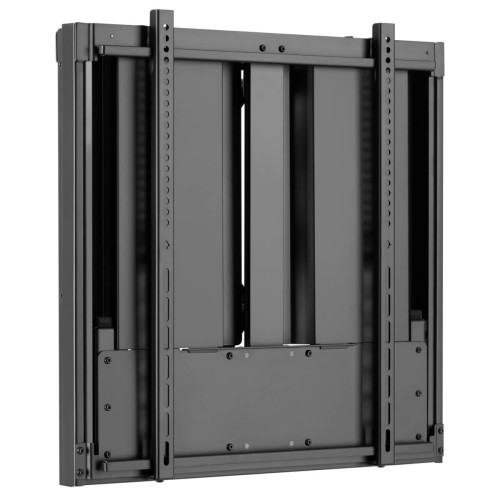

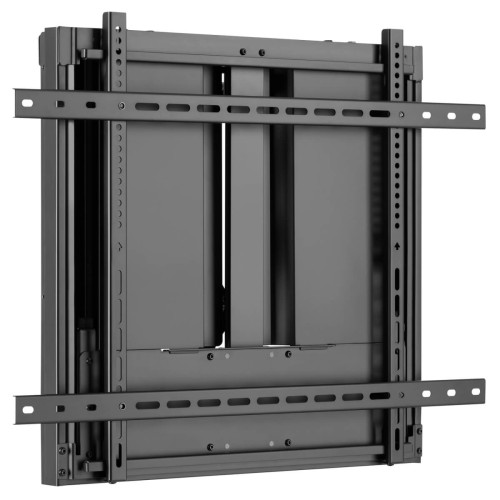

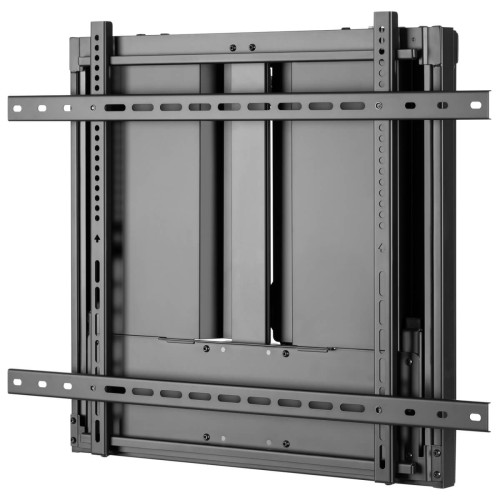

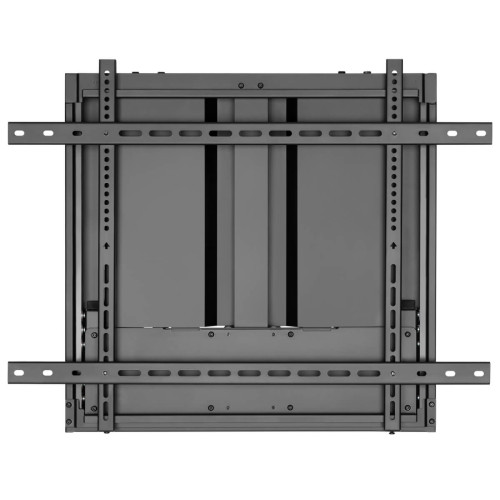

TV Wall Mount Secures Your Interactive Touchscreen Display at Arm’s Length
The VESA-compliant DWM5070HD mounts your television, monitor, whiteboard or interactive display to a wood stud, brick or concrete wall with the included hardware. Recommended for conference rooms, boardrooms and classrooms, this wall mount supports most popular brands of interactive touchscreen displays.

Glides Up and Down with Just a Touch for Perfect Viewing

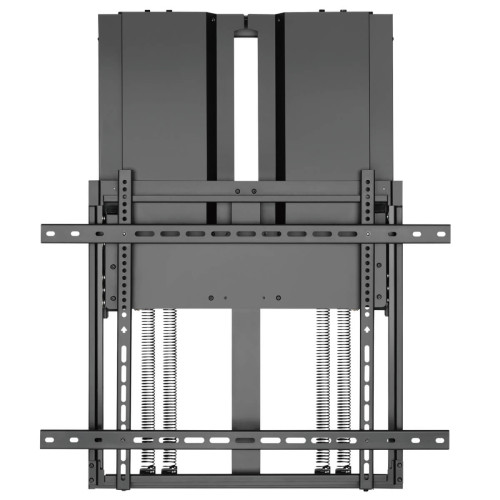

Intricately designed counterbalanced springs allow the connected display to glide up and down the wall, allowing users of all sizes to adjust and work at the interactive touchscreen. With 15.7 inches (40 centimeters) of vertical movement, the DWM5070HD provides easy fingertip control for everyone.

Durable All-Metal Construction Built to Last
This height-adjustable TV wall mount is made from heavy-duty steel with a powder-coated black finish that resists scratches and blends smoothly into any room décor. It is compatible with most flat-screen televisions, monitors and interactive digital whiteboards between 50 and 70 inches and supports 88 to 132 pounds (60 kilograms).

VESA-Compliant Mounting Ensures Display Compatibility
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this TV wall mount supports the following VESA mounting hole patterns: 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 400 x 500, 400 x 600, 600 x 300, 600 x 400, 600 x 500, 600 x 600, 700 x 400, 700 x 500, 700 x 600, 800 x 500 and 800 x 600.
Design
Country of origin China
Housing material Steel
Panel mounting interface 200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,300 x 300,400 x 200,400 x 400,400 x 300,400 x 500,400 x 600,600 x 400,600 x 600,600 x 300,600 x 500,700 x 400,700 x 500,700 × 600,800 x 400,800 x 500,800 x 600
Product colour Black
Ergonomics
Height adjustment Y
Height adjustment type Manual
Features
Maximum screen size 177.8 cm (70")
Maximum weight capacity 70 kg
Graphics
Number of displays supported 1
Logistics data
Harmonized System (HS) code 8302.50.0000
Master (outer) case gross weight 30.6 kg
Master (outer) case GTIN (EAN/UPC) 10037332268829
Master (outer) case height 154.9 mm
Master (outer) case length 795 mm
Master (outer) case width 795 mm
Products per master (outer) case 1 pc(s)
Mounting
Maximum VESA mount 800 x 600 mm
Minimum VESA mount 200 x 200 mm
Mounting type Wall
Other features
Minimum screen size 127 cm (50")
Packaging content
Manual Y
Packaging data
Mounting kit Y
Quantity per pack 1 pc(s)
Performance
Distance to the wall (max) 12.7 cm
Sustainability
Sustainability certificates REACH, RoHS
Weight & dimensions
Depth 127 mm
Height 1039.9 mm
Package depth 739.1 mm
Package height 140 mm
Package weight 27.4 kg
Package width 739.1 mm
Weight 24.4 kg
Width 840 mm

Write a review

Please login or register to review

Tripp Lite DWM5070HD Height-Adjustable TV Wall Mount for 50” to 70” Flat-Panel Interactive Displays

  • Brand: Tripp-Lite
  • Product Code: DWM5070HD
  • Availability: In Stock
  • $430.39
