The VESA-compliant DWM1742MN Swivel/Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 17 to 42 inches.
Adjust the display angle to fit your environment and comfort level. An 80° swivel, -15° to +15° tilt and -4° to +4° screen level adjustment capability minimizes glare and provides comfortable viewing from multiple angles.
Mounts Your TV or Monitor to the Wall
Fits most flat-panel televisions, monitors and other displays from 17 to 42 in.
Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
Display angle adjusts to fit your environment and comfort level

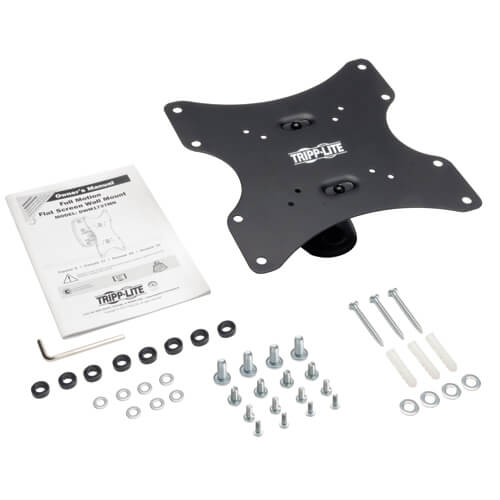

Mounting hardware included
Convenient One-Touch Adjustment
80° swivel, -15° to +15° tilt and -4° to +4° screen level adjustment capability provides comfortable viewing from multiple angles
Durable Metal Construction
Supports up to 115 lbs (52.2 kgs)
Scratch-resistant powder-coated finish
Fully assembled for immediate installation
VESA Compliance
Supports the following VESA mounting hole patterns: 75 x 75 mm, 75 x 100 mm, 75 x 200 mm, 100 x 100 mm, 200 x 100 mm and 200 x 200 mm
Adjust the display angle to fit your environment and comfort level. An 80° swivel, -15° to +15° tilt and -4° to +4° screen level adjustment capability minimizes glare and provides comfortable viewing from multiple angles.
Mounts Your TV or Monitor to the Wall
Fits most flat-panel televisions, monitors and other displays from 17 to 42 in.
Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
Display angle adjusts to fit your environment and comfort level
Mounting hardware included
Convenient One-Touch Adjustment
80° swivel, -15° to +15° tilt and -4° to +4° screen level adjustment capability provides comfortable viewing from multiple angles
Durable Metal Construction
Supports up to 115 lbs (52.2 kgs)
Scratch-resistant powder-coated finish
Fully assembled for immediate installation
VESA Compliance
Supports the following VESA mounting hole patterns: 75 x 75 mm, 75 x 100 mm, 75 x 200 mm, 100 x 100 mm, 200 x 100 mm and 200 x 200 mm
| Design | |
| Country of origin | China |
| Panel mounting interface | 75 x 75,100 x 100,200 x 100,200 x 200 |
| Product colour | Black |
| Display | |
| Tilt angle range | -15 - 15° |
| Ergonomics | |
| Swivel angle | 80° |
| Features | |
| Maximum screen size | 106.7 cm (42") |
| Maximum weight capacity | 52 kg |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
| Master (outer) case gross weight | 16.4 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332183559 |
| Master (outer) case height | 245.1 mm |
| Master (outer) case length | 495 mm |
| Master (outer) case width | 469.9 mm |
| Products per master (outer) case | 10 pc(s) |
| Mounting | |
| Maximum VESA mount | 200 x 200 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting type | Wall |
| Other features | |
| Minimum screen size | 43.2 cm (17") |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 32.5 mm |
| Height | 199.9 mm |
| Package depth | 236.2 mm |
| Package height | 91.4 mm |
| Package weight | 1.63 kg |
| Package width | 231.1 mm |
| Weight | 1.42 kg |
| Width | 55.9 mm |

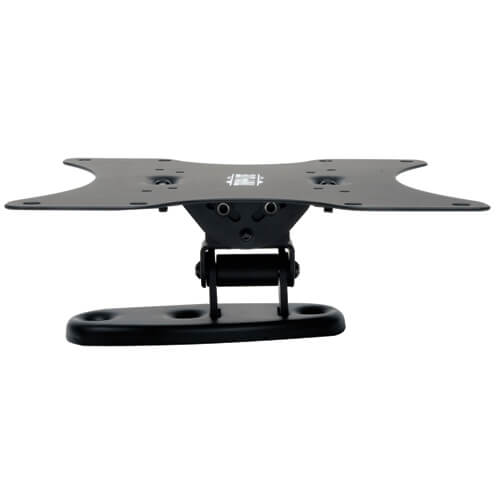

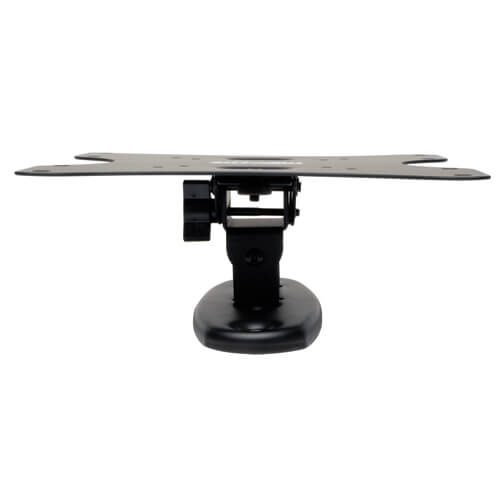

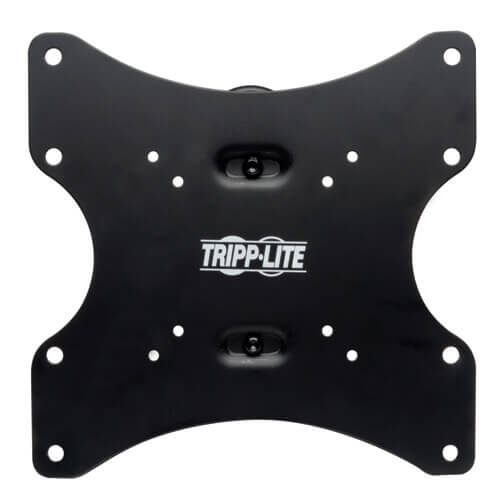

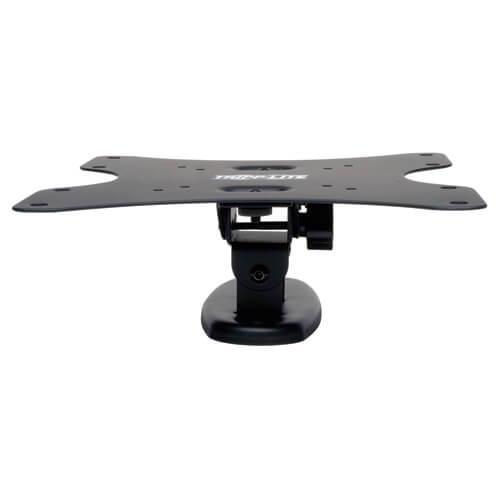

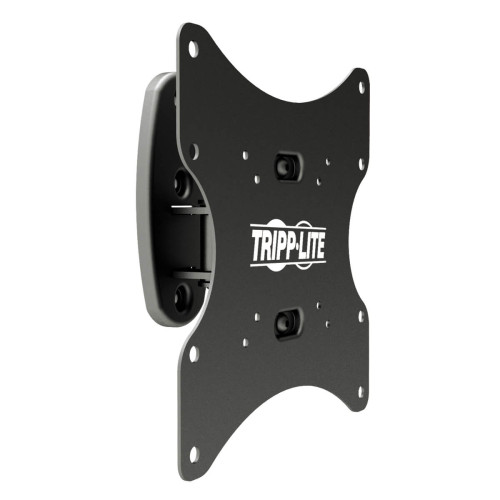

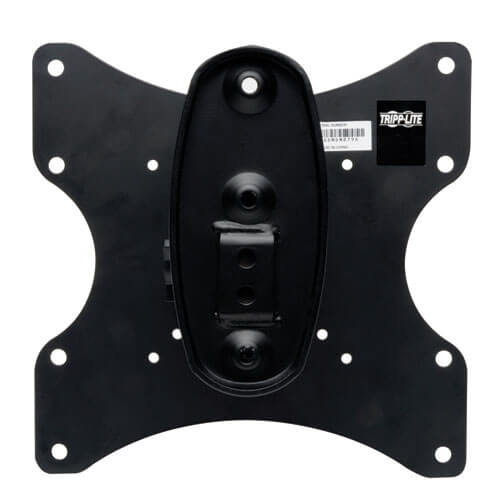

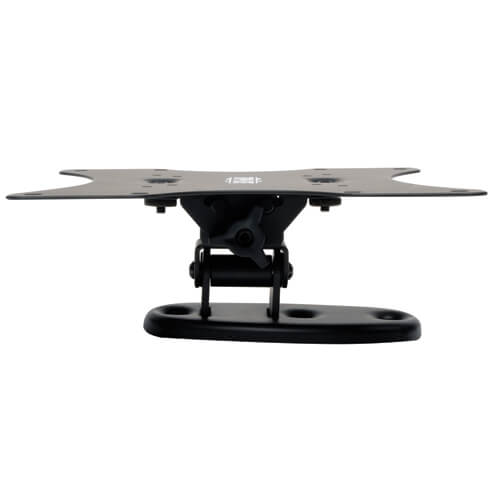

Tripp Lite DWM1742MN Swivel/Tilt Wall Mount for 17" to 42" TVs and Monitors, 80° Swivel, -15° to +15° Tilt, -4° to +4° Screen Adjustment
- Brand: Tripp-Lite
- Product Code: DWM1742MN
- Availability: In Stock
-
$35.99
