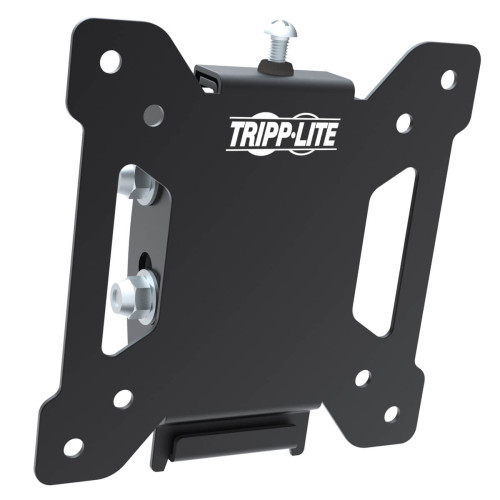

The VESA-compliant DWT1327S Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 13 to 27 inches. A -15° to +10° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Low-profile mount is concealed behind the display to give a sleek, professional appearance. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 88 lbs (39.9 kgs). Comes fully assembled for quick mounting to the wall with included hardware. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 75 x 75 mm, 75 x 100 mm, 100 x 75 mm and 100 x 100 mm.

Mounts Your TV or Monitor to the Wall
Fits most flat-panel televisions, monitors and other displays from 13 to 27 in.
Ideal for classrooms, boardrooms, hotels, bars and restaurants
Mounts out of sight behind display for sleek, professional appearance
Mounting hardware included

Convenient One-Touch Adjustment
-15° to +10° tilt capability provides comfortable viewing from multiple angles
Improves viewing angles in applications where audience is below the display

Durable Metal Construction
Supports up to 88 lbs (39.9 kgs)
Scratch-resistant powder-coated finish
Fully assembled for immediate installation

VESA Compliance
Supports the following VESA mounting hole patterns: 75 x 75 mm, 75 x 100 mm, 100 x 75 mm and 100 x 100 mm.
Design
Country of origin China
Product colour Black
Display
Tilt angle range -15 - 15°
Features
Maximum screen size 68.6 cm (27")
Maximum weight capacity 39 kg
Graphics
Number of displays supported 1
Logistics data
Harmonized System (HS) code 85299097
Master (outer) case gross weight 20.4 kg
Master (outer) case GTIN (EAN/UPC) 10037332183573
Master (outer) case height 228.6 mm
Master (outer) case length 523.2 mm
Master (outer) case width 281.9 mm
Products per master (outer) case 40 pc(s)
Mounting
Maximum VESA mount 100 x 100 mm
Minimum VESA mount 75 x 75 mm
Mounting type Wall
Other features
Minimum screen size 33 cm (13")
Sustainability
Sustainability certificates RoHS
Weight & dimensions
Depth 40.6 mm
Height 119.9 mm
Package depth 132.1 mm
Package height 25.4 mm
Package weight 410 g
Package width 121.9 mm
Weight 410 g
Width 196.1 mm

Write a review

Please login or register to review

Tripp Lite DWT1327S Tilt Wall Mount for 13" to 27" TVs and Monitors

  • Brand: Tripp-Lite
  • Product Code: DWT1327S
  • Availability: In Stock
  • $24.00
