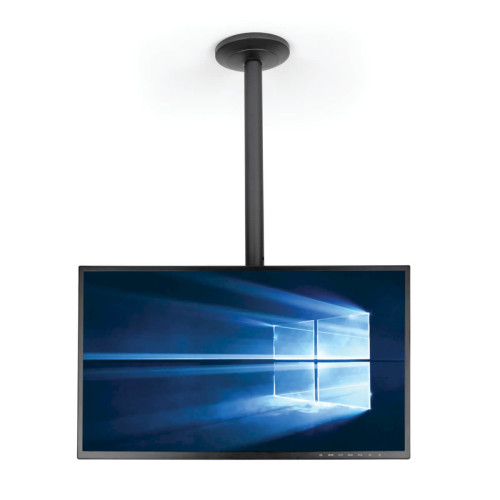

The DCTM Full Motion Ceiling Mount saves valuable wall and floor space by suspending your flat-panel television, monitor or other display from the ceiling. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 23 to 42 inches.

The DCTM adjusts with one easy touch to customize your viewing at any time. A 90° swivel and -20° tilt capability minimizes glare and provides comfortable viewing from multiple angles.

The durable all-metal pole extends from 24 to 34 inches and supports up to 66 lbs (30 kgs). The scratch-resistant powder-coated finish tolerates frequent handling and blends with any décor. Installation hardware is included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 75 x 75 mm, 75 x 100 mm, 75 x 200 mm, 100 x 75 mm, 100 x 100 mm, 100 x 200 mm, 200 x 75mm, 200 x 100 mm and 200 x 200 mm.

Save Valuable Wall and Floor Space
Suspends flat-panel TV, monitor or other display from ceiling
Fits most flat-panel devices from 23 to 42 in.

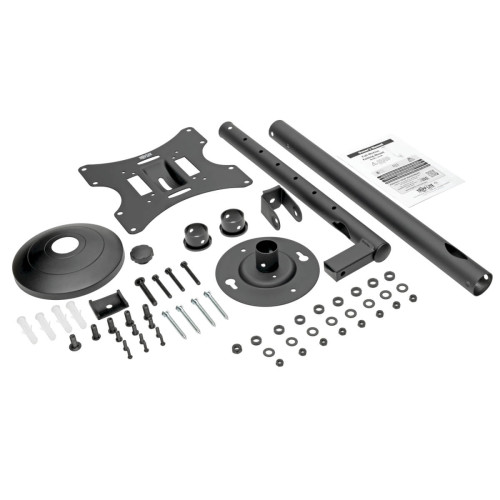

Installation hardware included
Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants

Convenient One-Touch Adjustment

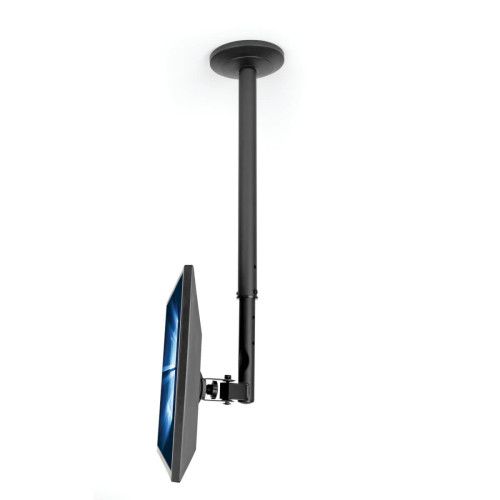

90° swivel and -20° tilt capability provides comfortable viewing from multiple angles

Durable Metal Construction
Supports up to 66 lbs (30 kgs)

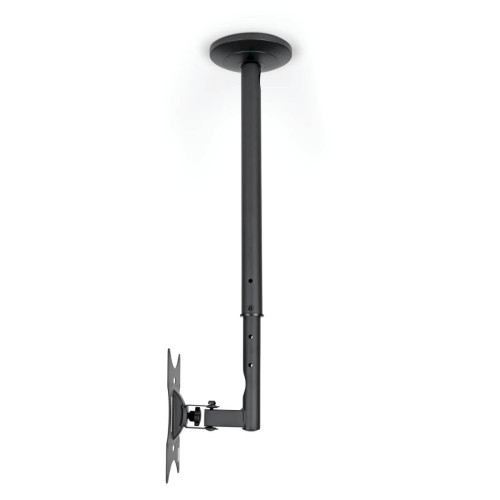

Pole extends from 24 to 34 in.
Scratch-resistant powder-coated finish blends with any décor

VESA Compliance

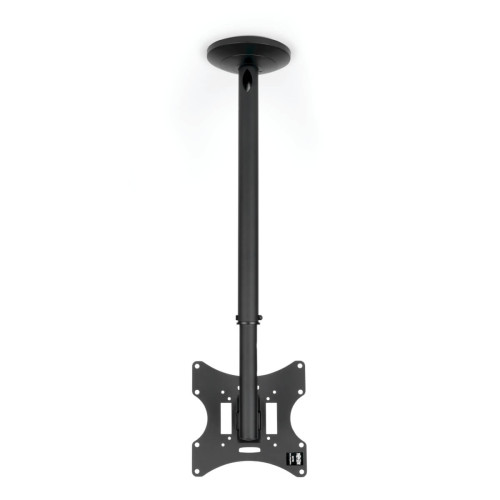

Supports the following VESA mounting hole patterns: 75 x 75 mm, 75 x 100 mm, 75 x 200 mm, 100 x 75 mm, 100 x 100 mm, 100 x 200 mm, 200 x 75mm, 200 x 100 mm and 200 x 200 mm
Design
Country of origin China
Housing material Steel
Panel mounting interface 75 x 75,100 x 100,200 x 100,200 x 200
Product colour Black
Display
Tilt angle range -30 - 0°
Ergonomics
Height adjustment Y
Height adjustment range 279.4 - 533.4 mm
Swivel angle 90°
Features
Maximum screen size 94 cm (37")
Maximum weight capacity 36.28 kg
Graphics
Number of displays supported 1
Logistics data
Harmonized System (HS) code 85299097
Master (outer) case gross weight 12.8 kg
Master (outer) case GTIN (EAN/UPC) 10037332223453
Master (outer) case height 546.1 mm
Master (outer) case length 269.2 mm
Master (outer) case width 320 mm
Products per master (outer) case 5 pc(s)
Mounting
Maximum VESA mount 200 x 200 mm
Minimum VESA mount 75 x 75 mm
Mounting type Ceiling
Other features
Minimum screen size 25.4 cm (10")
Technical details
Adjustable Y
Weight & dimensions
Depth 965.2 mm
Height 137.2 mm
Package depth 510.5 mm
Package height 535.9 mm
Package weight 2.4 kg
Package width 248.9 mm
Weight 2.22 kg
Width 160 mm

Write a review

Please login or register to review

Tripp Lite DCTM Full Motion Ceiling Mount for 23" to 42" TVs and Monitors.

  • Brand: Tripp-Lite
  • Product Code: DCTM
  • Availability: In Stock
  • $47.16
