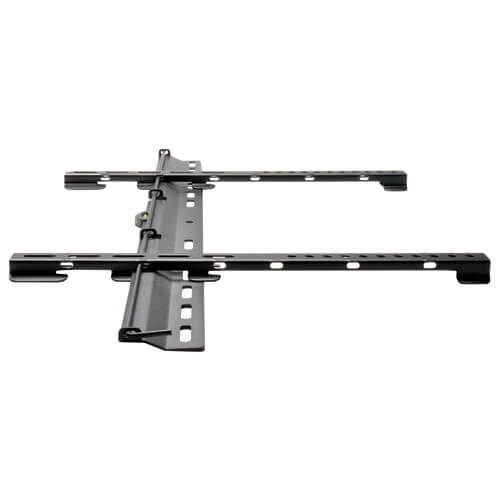

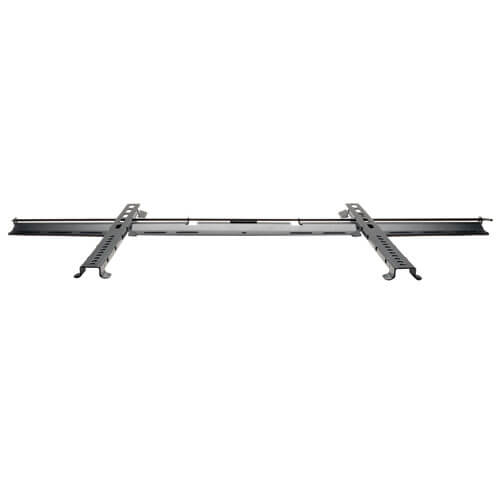

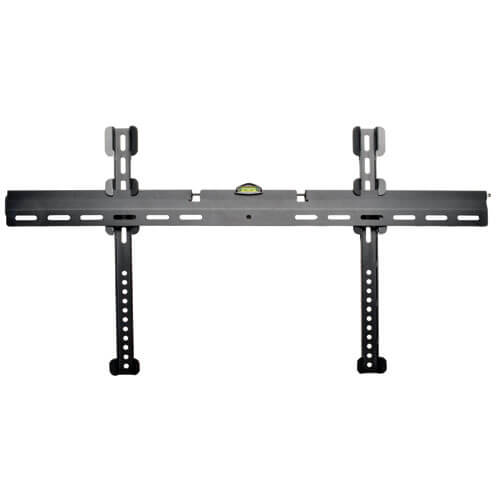

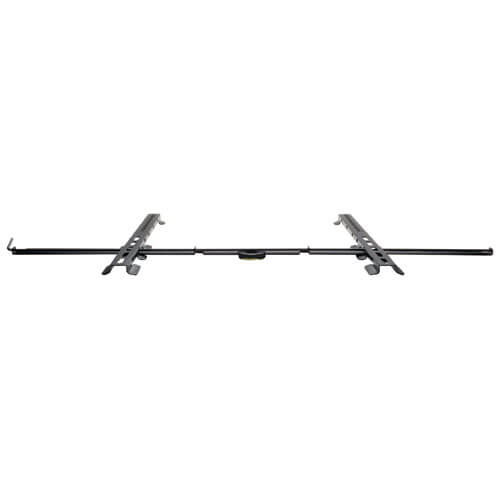

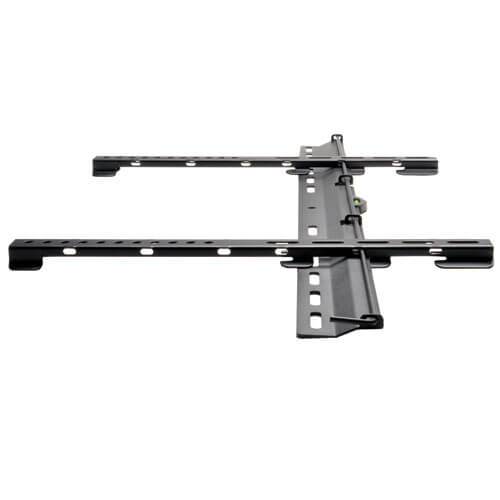

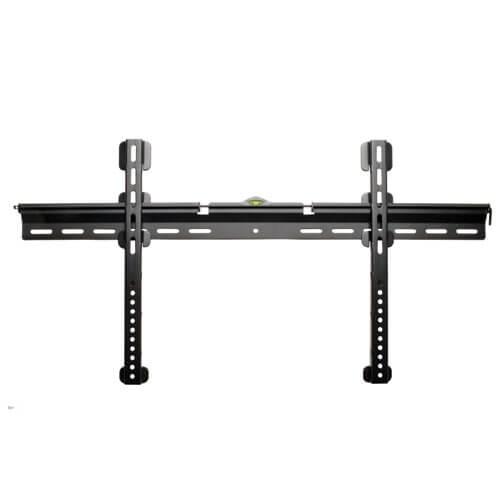

The VESA-compliant DWF3770L Fixed Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 37 to 70 inches. The low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 143 lbs (64.9 kgs). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 200 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 700 x 300, 700 x 400 mm, 800 x 300 mm and 800 x 400 mm.
Mounts Your TV or Monitor to the Wall
Fits most flat-panel televisions, monitors and other displays from 37 to 70 in.
Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
Mounts out of sight behind display for sleek, professional appearance

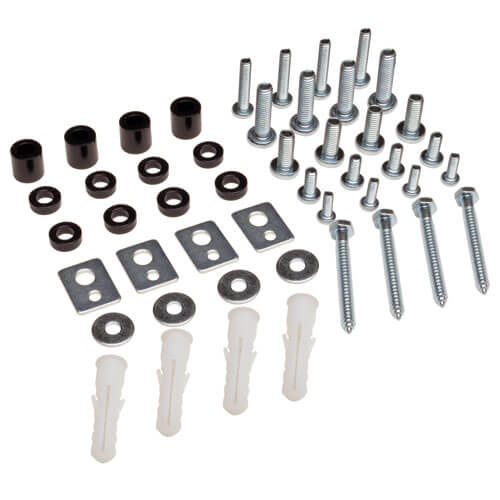

Mounting hardware included
Durable Metal Construction
Supports up to 143 lbs (64.9 kgs)
Open frame allows easy wall access
Adjustable mounting rails compensate for off-center wall studs
Built-in bubble level for accurate display leveling
Scratch-resistant powder-coated finish
VESA Compliance
Supports the following VESA mounting hole patterns: 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 200 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 700 x 300, 700 x 400 mm, 800 x 300 mm and 800 x 400 mm
Mounts Your TV or Monitor to the Wall
Fits most flat-panel televisions, monitors and other displays from 37 to 70 in.
Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
Mounts out of sight behind display for sleek, professional appearance
Mounting hardware included
Durable Metal Construction
Supports up to 143 lbs (64.9 kgs)
Open frame allows easy wall access
Adjustable mounting rails compensate for off-center wall studs
Built-in bubble level for accurate display leveling
Scratch-resistant powder-coated finish
VESA Compliance
Supports the following VESA mounting hole patterns: 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 200 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 700 x 300, 700 x 400 mm, 800 x 300 mm and 800 x 400 mm
Design | |
Country of origin | China |
Housing material | Metal |
Panel mounting interface | 300 x 300,400 x 200,400 x 400,600 x 400,800 x 400 |
Product colour | Black |
Ergonomics | |
Distance to the wall (min) | 1.95 mm |
Features | |
Maximum screen size | 177.8 cm (70") |
Maximum weight capacity | 65 kg |
Graphics | |
Number of displays supported | 1 |
Logistics data | |
Harmonized System (HS) code | 85299097 |
Master (outer) case gross weight | 18.6 kg |
Master (outer) case GTIN (EAN/UPC) | 10037332181708 |
Master (outer) case height | 185.4 mm |
Master (outer) case length | 914.4 mm |
Master (outer) case width | 350.5 mm |
Products per master (outer) case | 8 pc(s) |
Mounting | |
Maximum VESA mount | 800 x 400 mm |
Minimum VESA mount | 300 x 300 mm |
Mounting type | Wall |
Other features | |
Minimum screen size | 94 cm (37") |
Packaging content | |
Manual | Y |
Packaging data | |
Mounting kit | Y |
Sustainability | |
Sustainability certificates | RoHS |
Weight & dimensions | |
Depth | 19.3 mm |
Height | 439.9 mm |
Package depth | 901.7 mm |
Package height | 160 mm |
Package weight | 2.27 kg |
Package width | 44.4 mm |
Weight | 1.54 kg |
Width | 870 mm |
Tripp Lite DWF3770L Fixed Wall Mount for 37" to 70" TVs and Monitors
- Brand: Tripp-Lite
- Product Code: DWF3770L
- Availability: In Stock
-
$37.87
