Mounts Your TV or Monitor on the Wall for a Perfect Viewing Angle
Recommended for home theaters, classrooms, conference rooms, hotels, bars, restaurants or anywhere else you may want to show off a television or monitor, this low-profile TV wall mount is hidden out of sight behind the display for a sleek, professional appearance. It fits most curved- and flat-screen displays from 32 to 80 inches and up to 165 pounds (75 kilograms).
Tilt Feature Lets You Adjust the Viewing Angle to Your Specifications
You can adjust the horizontal angle of your display from -8° to +0°. This will minimize glare on the screen and allow you to customize the angle for comfortable viewing.
Durable All-Metal Construction Provides Convenient Cable Access
The DWT3280X is constructed from heavy-duty steel with a powder-coated black finish that resists scratches. Its open frame design with smooth edges enables easy access to cabling. Horizontal mounting rails adjust to compensate for off-center wall studs. Removing and replacing the display is fast and simple using the automatic spring locks with quick-release cords.
VESA-Compliant Mounting Ensures Display Compatibility
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this mount supports the following VESA mounting hole patterns: 150 x 100, 150 x 150, 200 x 100, 200 x 200, 200 x 400, 300 x 200, 300 x 300, 350 x 350, 400 x 200, 400 x 300, 400 x 400, 600 x 200, 600 x 300 and 600 x 400. Mounting hardware is included.
Recommended for home theaters, classrooms, conference rooms, hotels, bars, restaurants or anywhere else you may want to show off a television or monitor, this low-profile TV wall mount is hidden out of sight behind the display for a sleek, professional appearance. It fits most curved- and flat-screen displays from 32 to 80 inches and up to 165 pounds (75 kilograms).
Tilt Feature Lets You Adjust the Viewing Angle to Your Specifications
You can adjust the horizontal angle of your display from -8° to +0°. This will minimize glare on the screen and allow you to customize the angle for comfortable viewing.
Durable All-Metal Construction Provides Convenient Cable Access
The DWT3280X is constructed from heavy-duty steel with a powder-coated black finish that resists scratches. Its open frame design with smooth edges enables easy access to cabling. Horizontal mounting rails adjust to compensate for off-center wall studs. Removing and replacing the display is fast and simple using the automatic spring locks with quick-release cords.
VESA-Compliant Mounting Ensures Display Compatibility
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this mount supports the following VESA mounting hole patterns: 150 x 100, 150 x 150, 200 x 100, 200 x 200, 200 x 400, 300 x 200, 300 x 300, 350 x 350, 400 x 200, 400 x 300, 400 x 400, 600 x 200, 600 x 300 and 600 x 400. Mounting hardware is included.
| Design | |
| Country of origin | China |
| Housing material | Steel |
| Panel mounting interface | 150 x 100,150 x 150,200 x 100,200 x 200,200 x 400,300 x 200,300 x 300,350 x 350,400 x 200,400 x 400,400 x 300,600 x 200,600 x 300,600 x 400 |
| Product colour | Black |
| Display | |
| Tilt adjustment | Y |
| Tilt angle range | -8 - 0° |
| Ergonomics | |
| Suitable for curved screen | Y |
| Features | |
| Maximum screen size | 2.03 m (80") |
| Maximum weight capacity | 75 kg |
| Graphics | |
| Number of displays supported | 1 |
| Logistics data | |
| Harmonized System (HS) code | 8302.50.0000 |
| Master (outer) case gross weight | 20.6 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332275780 |
| Master (outer) case height | 500.4 mm |
| Master (outer) case length | 170.2 mm |
| Master (outer) case width | 490.2 mm |
| Products per master (outer) case | 6 pc(s) |
| Mounting | |
| Maximum VESA mount | 600 x 400 mm |
| Minimum VESA mount | 150 x 100 mm |
| Mounting type | Wall |
| Other features | |
| Minimum screen size | 81.3 cm (32") |
| Packaging content | |
| Manual | Y |
| Packaging data | |
| Mounting kit | Y |
| Quantity per pack | 1 pc(s) |
| Performance | |
| Distance to the wall (max) | 3.7 cm |
| Sustainability | |
| Sustainability certificates | REACH, RoHS |
| Sustainability compliance | Y |
| Weight & dimensions | |
| Depth | 38.1 mm |
| Height | 419.1 mm |
| Package depth | 48.3 mm |
| Package height | 472.4 mm |
| Package weight | 1.8 kg |
| Package width | 236.2 mm |
| Weight | 1.47 kg |
| Width | 640.1 mm |

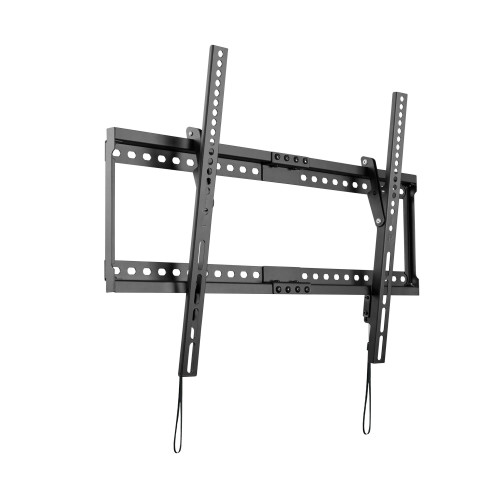

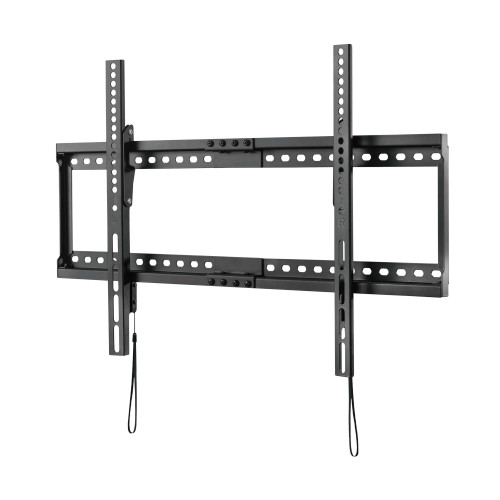

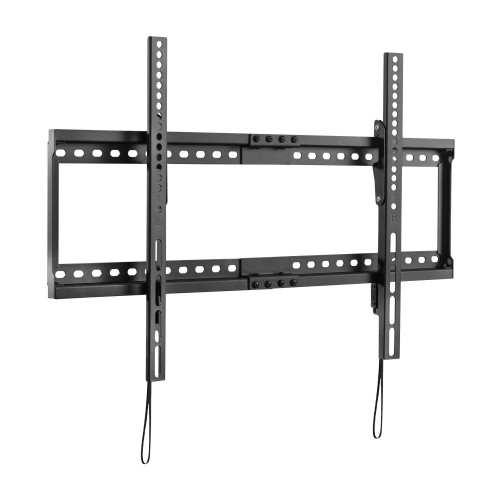

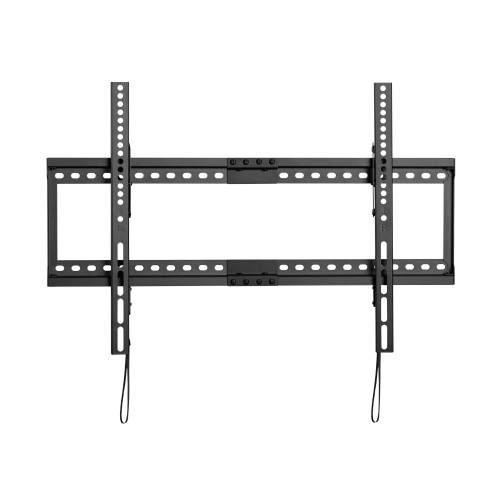

Tripp Lite DWT3280X Heavy-Duty Tilt Wall Mount for 32” to 80” Curved or Flat-Screen Displays
- Brand: Tripp-Lite
- Product Code: DWT3280X
- Availability: In Stock
-
$73.14
