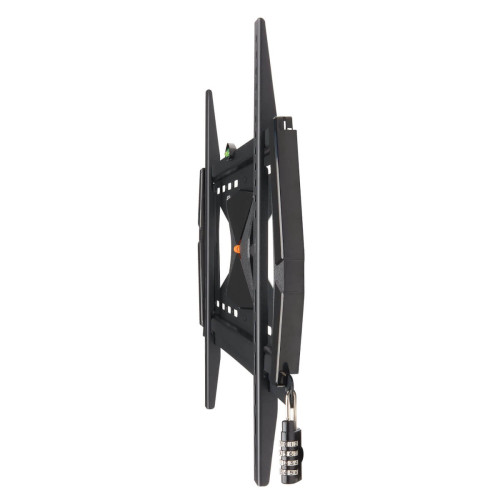

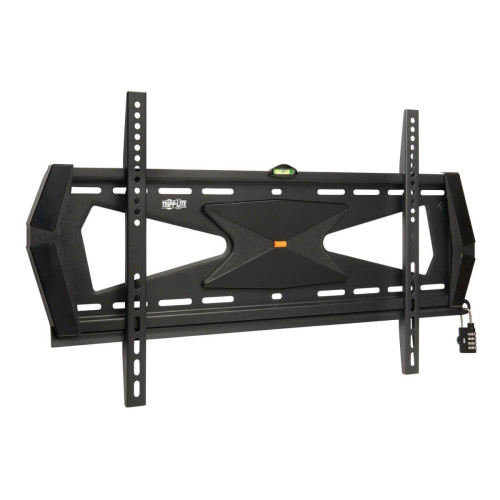

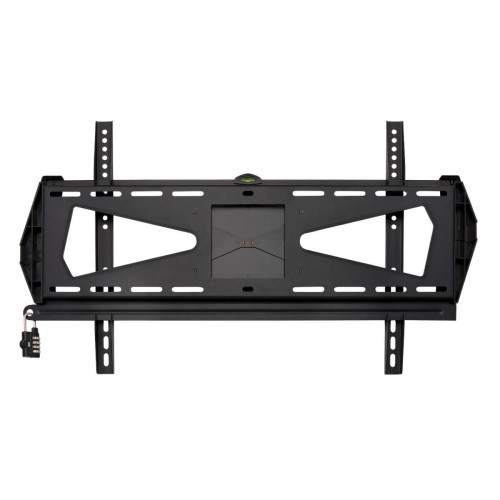

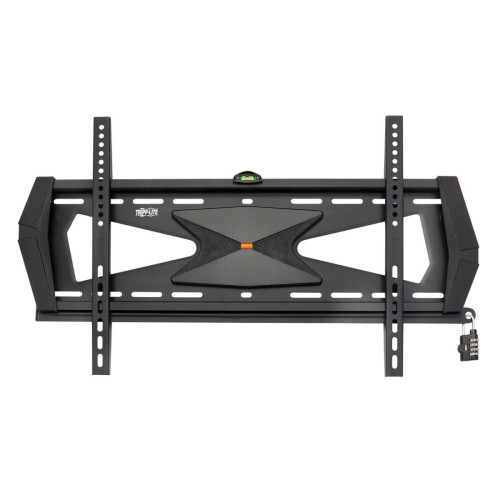

Security Wall Mount Hangs Your Flat-Panel or Curved-Screen TV or Monitor on the Wall
Ideal for home theaters, classrooms, conference rooms, hotels, bars, restaurants or anywhere else you may want to show off a television or monitor, this heavy-duty TV wall mount is hidden out of sight behind the display for a sleek, professional appearance. It fits most flat-panel or curved-screen displays from 37 to 80 inches and up to 88 lbs (39.9 kgs). Mounting hardware is included.

Durable All-Metal Construction Provides Convenient Cable Access
The fixed TV wall mount is constructed from heavy-duty steel with a powder-coated black finish that resists scratches. Rear openings with smooth edges enable easy access to cables. A built-in bubble level helps ensure your display is evenly mounted. This heavy-duty wall mount is function- and weight-tested to 200 lbs (90.7 kgs) in accordance with UL Standard 2442.

Designed to Keep Your Display Safe and Secure

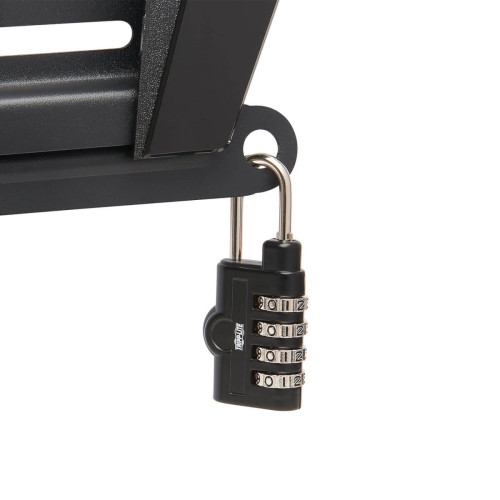

This security wall mount was conceived with your television or monitor's safety in mind, especially if the display is located in a public area with unguarded traffic, such as a library, classroom or hotel lobby. It comes with a solid steel security bar that slides through the mounting brackets and is secured into place with an included four-position combination lock.

Complies with VESA Standards
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing industry-wide standards for products like flat-panel TVs and monitors. To comply with these standards, most manufacturers use a series of universal mounting hole patterns, measured in millimeters, on the backs of the products. Measure the vertical and horizontal distances between the holes on the back of your display or refer to your display's owner's manual to find its VESA pattern. This monitor wall mount conforms to VESA-compliant displays with any of the following standard mounting hole patterns: 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 500 x 200, 500 x 300, 500 x 400, 600 x 300 and 600 x 400.

5-Year Warranty
The DWFSC3780MUL is backed by a 5-year warranty, ensuring reliability and performance.
Design
Certification UL
Country of origin China
Housing material Steel
Panel mounting interface 200 x 200,300 x 300,400 x 200,400 x 400
Product colour Black
Features
Cable management N
Maximum screen size 2.03 m (80")
Maximum weight capacity 40 kg
Logistics data
Harmonized System (HS) code 85299097
Master (outer) case gross weight 9.98 kg
Master (outer) case GTIN (EAN/UPC) 10037332213737
Master (outer) case height 762 mm
Master (outer) case length 175.3 mm
Master (outer) case width 251.5 mm
Products per master (outer) case 3 pc(s)
Mounting
Maximum VESA mount 400 x 400 mm
Minimum VESA mount 200 x 200 mm
Mounting type Wall
Suitable for computer monitor Y
Other features
Minimum screen size 94 cm (37")

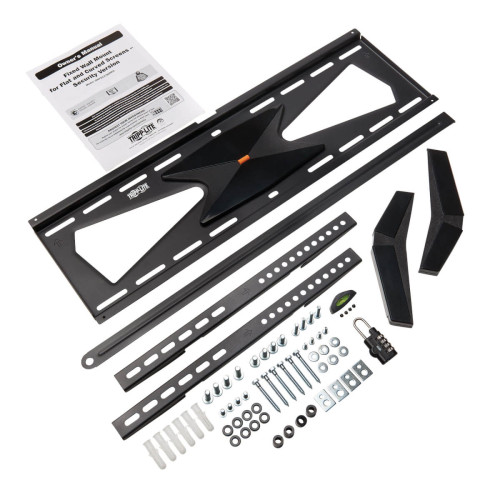

Packaging content
Adapter bracket included Y
Anchors included Y
Manual Y
Screws included Y
Spacer included Y
Washers included Y
Sustainability
Sustainability certificates RoHS
Weight & dimensions
Depth 22.9 mm
Height 784.9 mm
Package depth 50.8 mm
Package height 744.2 mm
Package weight 3.22 kg
Package width 231.1 mm
Weight 2.36 kg
Width 419.1 mm

Write a review

Please login or register to review

Tripp Lite DWFSC3780MUL Heavy-Duty Fixed Security TV Wall Mount for 37-80" Televisions & Monitors - Flat/Curved, UL Certified

  • Brand: Tripp-Lite
  • Product Code: DWFSC3780MUL
  • Availability: In Stock
  • $64.16
