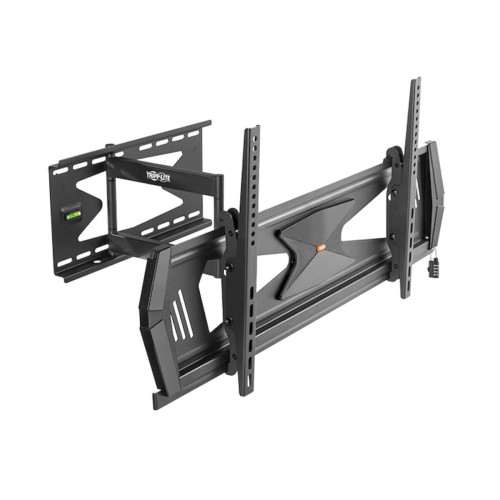

Security Wall Mount Hangs Your Flat-Panel or Curved-Screen TV or Monitor
Ideal for home theaters, classrooms, conference rooms, hotels, bars, restaurants or anywhere else you may want to show off a television or monitor, this heavy-duty TV wall mount is hidden out of sight behind the display for a sleek, professional appearance. It fits most flat-panel or curved-screen displays from 37 to 80 inches and up to 88 lbs (39.9 kgs). Mounting hardware is included.

Durable All-Metal Construction Provides Convenient Cable Access
The curved-TV wall mount is constructed from heavy-duty steel with a powder-coated black finish that resists scratches. Rear openings with smooth edges enable easy access to cables. A built-in bubble level helps ensure your display is evenly mounted. This heavy-duty wall mount is function- and weight-tested to 200 lbs (90.7 kgs) in accordance with UL Standard 2442.

Designed to Keep Your Display Safe and Secure
This security wall mount was conceived with your television or monitor's safety in mind, especially if the display is located in a public area with much unguarded traffic, such as a library, classroom or hotel lobby. It comes with a solid steel security bar that slides through the mounting brackets and is secured into place with an included four-position combination lock.

Tilt and Swivel Features Let You Adjust the Viewing Angle to Your Specifications
The full-motion TV wall mount allows adjustment of your display's horizontal angle from -10° to +5°. It also swivels your monitor or television 90° left to right. This will minimize glare on the screen and allow you to customize the angle for comfortable viewing.

Complies with VESA Standards
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing industry-wide standards for products like flat-panel TVs and monitors. To comply with these standards, most manufacturers use a series of universal mounting hole patterns, measured in millimeters, on the backs of the products. Measure the vertical and horizontal distances between the holes on the back of your display or refer to your display's owner's manual to find its VESA pattern. This heavy-duty wall mount conforms to VESA-compliant displays with any of the following standard mounting hole patterns: 300 x 200, 300 x 300, 300 x 400, 300 x 500, 300 x 600, 300 x 700, 300 x 800, 400 x 200, 400 x 300, 400 x 400, 500 x 200, 500 x 300, 500 x 400, 600 x 300, 600 x 400, 700 x 300, 700 x 400, 800 x 300 and 800 x 400.
Design
Country of origin China
Housing material Steel
Panel mounting interface 300 x 300,400 x 200,400 x 400,600 x 400,800 x 400
Product colour Black
Display
Tilt angle range -10 - 5°
Ergonomics
Swivel angle 90°
Features
Maximum screen size 94 cm (37")
Maximum weight capacity 91 kg
Graphics
Number of displays supported 1
Logistics data
Harmonized System (HS) code 85299097
Master (outer) case gross weight 22.3 kg
Master (outer) case GTIN (EAN/UPC) 10037332225068
Master (outer) case height 1018.5 mm
Master (outer) case length 154.9 mm
Master (outer) case width 353.1 mm
Products per master (outer) case 2 pc(s)
Mounting
Maximum VESA mount 800 x 400 mm
Minimum VESA mount 300 x 300 mm
Mounting type Wall
Other features
Minimum screen size 2.03 m (80")
Sustainability
Sustainability certificates RoHS
Weight & dimensions
Depth 439.4 mm
Height 548.6 mm
Package depth 68.6 mm
Package height 1000.8 mm
Package weight 10.7 kg
Package width 335.3 mm
Weight 9.98 kg
Width 985.5 mm

Write a review

Please login or register to review

Tripp Lite DWMSC3780MUL Heavy-Duty Full-Motion Security TV Wall Mount for 37" to 80", Flat or Curved, UL Certified

  • Brand: Tripp-Lite
  • Product Code: DWMSC3780MUL
  • Availability: In Stock
  • $191.45
