Portrait Wall Mount Hangs Your Flat-Panel TV or Monitor on the Wall
Recommended for classrooms, conference rooms, hotels, bars, restaurants or anywhere else you may want to show off a television or monitor in portrait mode, this heavy-duty anti-theft TV wall mount is hidden out of sight behind the display for a sleek, professional appearance. It fits most flat-panel displays from 45 to 55 inches and up to 110 lbs (49.9 kgs). Mounting hardware is included.

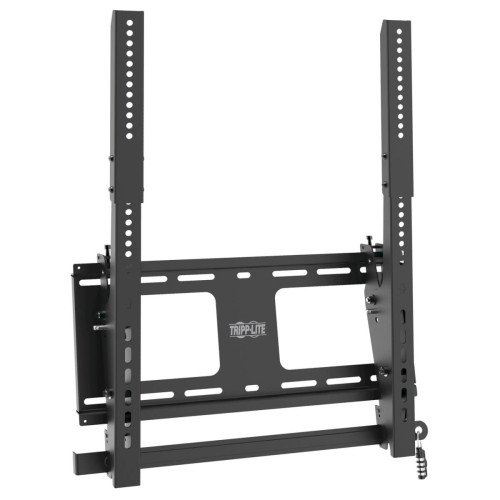

Durable All-Metal Construction Provides Convenient Cable Access

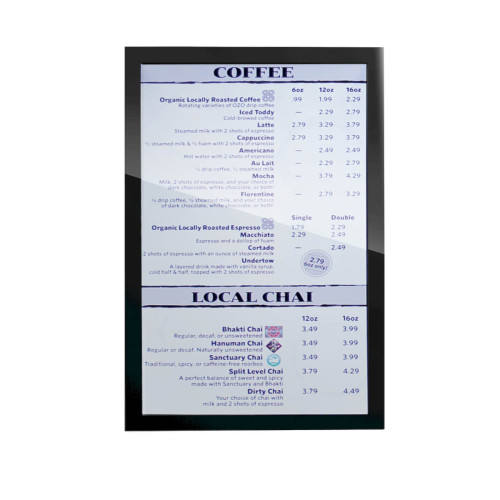

The tilt TV wall mount is constructed from heavy-duty steel with a powder-coated black finish that resists scratches. Rear openings with smooth edges enable easy access to cables. A built-in bubble level helps ensure your display is evenly mounted. The DWTPSC4555M is designed for portrait viewing, making it ideal for menus, schedules and announcements.

Designed to Keep Your Display Safe and Secure

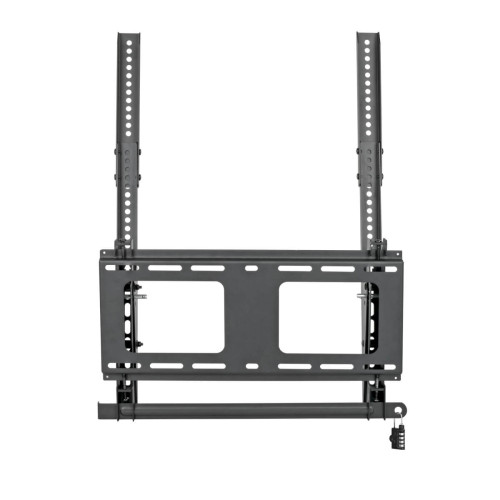

This security wall mount was conceived with your television or monitor's safety in mind, especially if the display is located in a public area with unguarded traffic, such as a library, classroom or hotel lobby. It comes with a solid steel security bar that slides through the mounting brackets and is secured into place with an included four-position combination lock.

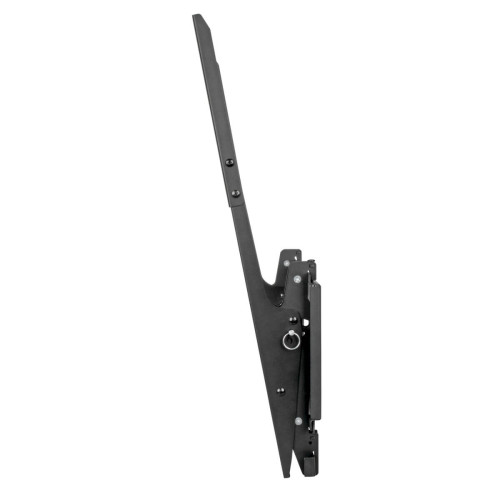

Tilt Feature Lets You Adjust the Viewing Angle to Your Specifications
You can adjust the horizontal angle of your display up to 10°. This will minimize glare on the screen and allow you to customize the angle for comfortable viewing.

Complies with VESA Standards
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing industry-wide standards for products like flat-panel TVs and monitors. To comply with these standards, most manufacturers use a series of universal mounting hole patterns, measured in millimeters, on the backs of the products. Measure the vertical and horizontal distances between the holes on the back of your display or refer to your display's owner's manual to find its VESA pattern. This monitor wall mount conforms to VESA-compliant displays with any of the following standard mounting hole patterns: 200 x 100, 200 x 200, 200 x 300, 200 x 400, 200 x 500, 300 x 200, 300 x 300, 300 x 400, 300 x 500, 300 x 600, 400 x 200, 400 x 300, 400 x 400, 400 x 500 and 400 x 600.
Design
Accepts padlock Y
Country of origin China
Housing material Steel
Panel mounting interface 200 x 200,200 x 300,200 x 400,300 x 400,300 x 300,400 x 400,400 x 600
Product colour Black
Features
Maximum screen size 139.7 cm (55")
Maximum weight capacity 50 kg
Graphics
Number of displays supported 1
Logistics data
Harmonized System (HS) code 85299097
Master (outer) case gross weight 17.1 kg
Master (outer) case GTIN (EAN/UPC) 10037332238549
Master (outer) case height 269.2 mm
Master (outer) case length 563.9 mm
Master (outer) case width 261.6 mm
Products per master (outer) case 3 pc(s)
Mounting
Maximum VESA mount 400 x 600 mm
Minimum VESA mount 200 x 200 mm
Mounting type Wall
Suitable for computer monitor Y
Other features
Minimum screen size 114.3 cm (45")
Packaging content
Manual Y
Packaging data
Mounting kit Y
Performance
Distance to the wall (max) 7.9 cm
Sustainability
Sustainability certificates RoHS
Weight & dimensions
Depth 78.7 mm
Height 500.4 mm
Package depth 551.2 mm
Package height 78.7 mm
Package weight 5.58 kg
Package width 241.3 mm
Weight 4.49 kg
Width 680 mm

Write a review

Please login or register to review

Tripp Lite DWTPSC4555M Heavy-Duty Tilt Security TV Wall Mount for 45-55" TVs & Monitors - Flat Screen, Portrait Mode

  • Brand: Tripp-Lite
  • Product Code: DWTPSC4555M
  • Availability: In Stock
  • $135.27
