The 4-Port HDMI Switch - 4K 60Hz is a 4-input 1-output switch supporting up to 4K (3840 x 2160 at 60hz, 4:4:4) video, ideal for applications utilizing the HDMI 2.0 standard. A perfect solution for connecting and switching between computers, Blu-ray™ players, gaming consoles, digital cable or satellite boxes, and A/V receivers.

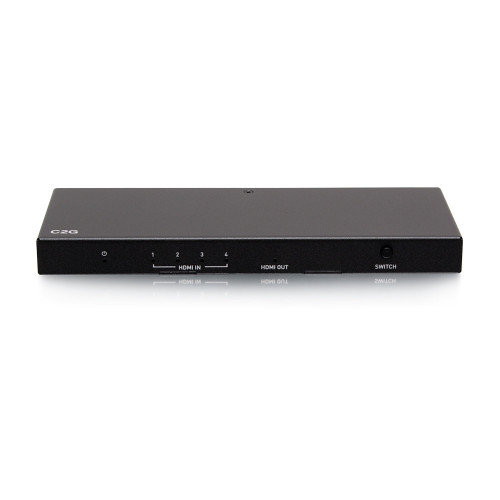

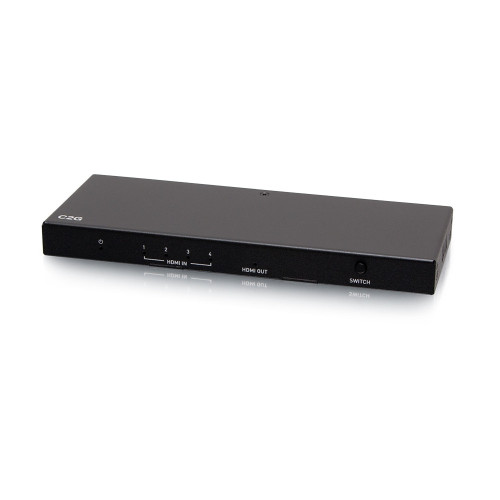

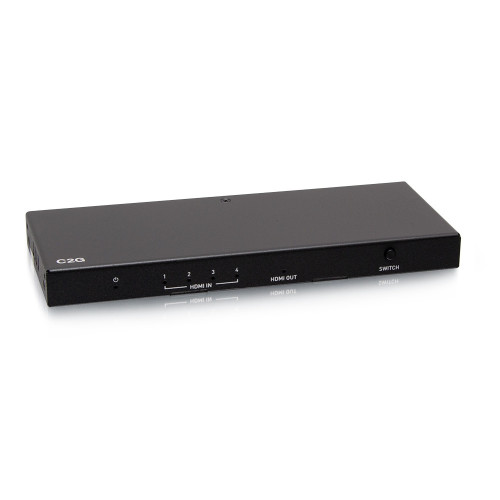

This product offers control and flexibility via a manual push button located conveniently on the front of the switch or by remote control over IR, allowing for quick changes between video sources.
The HDMI switch is HDCP 2.2 compliant and supports exceptional 4K Ultra HD resolutions up to 4096 x 2160 at 60hz, handling total HDMI data rates up to 18Gbps.
This product offers control and flexibility via a manual push button located conveniently on the front of the switch or by remote control over IR, allowing for quick changes between video sources.
The HDMI switch is HDCP 2.2 compliant and supports exceptional 4K Ultra HD resolutions up to 4096 x 2160 at 60hz, handling total HDMI data rates up to 18Gbps.
| Design | |
| Country of origin | China |
| Product colour | Black |
| Display | |
| HD type | 4K Ultra HD |
| High Dynamic Range (HDR) supported | Yes |
| Maximum refresh rate | 60 Hz |
| Features | |
| Cable length | 1.8 m |
| Dolby technologies | DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby TrueHD |
| HDCP | Yes |
| HDCP version | 2.2 |
| Graphics | |
| Maximum resolution | 4096 x 2160 pixels |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
| Other features | |

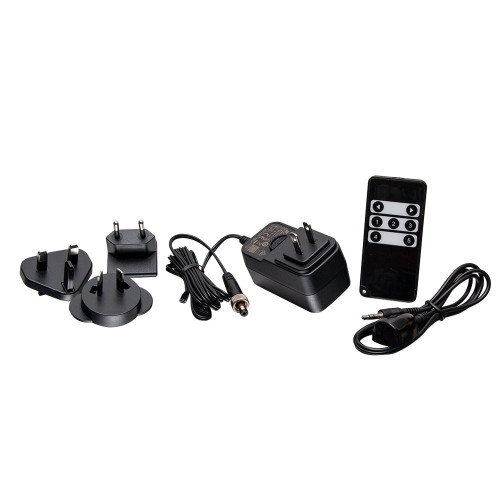

| AC adapter included | Yes |
| Packaging content | |
| Cables included | IR |
| Manual | Yes |
| Packaging data | |
| Mounting brackets included | Yes |
| Quantity per pack | 1 pc(s) |

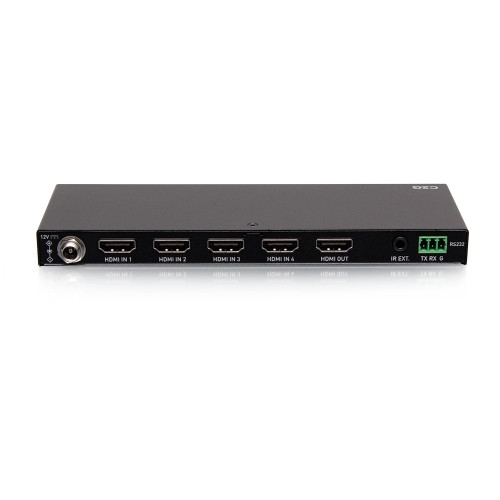

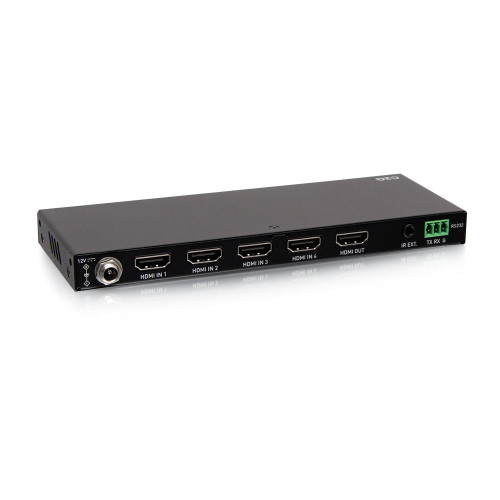

| Ports & interfaces | |
| HDMI in | 4 |
| HDMI ports quantity | 5 |
| Number of HDMI outputs | 1 |
| RS-232 ports | 1 |
| Video port type | HDMI |
| Power | |
| AC adapter input current | 0.4 A |
| AC adapter input voltage | 50/60 V |
| AC adapter output current | 1 A |
| AC adapter output voltage | 12 V |
| AC input voltage | 100 - 240 V |
| Technical details | |
| Warranty period | 5 year(s) |
| Weight & dimensions | |
| Depth | 66.2 mm |
| Height | 18 mm |
| Width | 175 mm |
