LSZH | 10GbE | 100W PoE++ | Snagless RJ-45
Cat6a Ethernet Low-Smoke Zero-Halogen (LSZH) Shielded cables support Multi-Gigabit/Multi-speed 1/2.5/5Gbps/10Gbp connections. It offers robust protection against electromagnetic interference (EMI/RFI) and noise, ensuring a fast, safe, and reliable network.
Low-Smoke Zero-Halogen (LSZH) CAT6A Ethernet Cable
LSZH Cat6a Network Cables are more eco-friendly than PVC cables. In the event of a fire, LSZH cables produce low levels of corrosive fumes and smoke. Low levels of acrid combustion pollutants promote increased visibility, resulting in safe and quick building evacuations by staff and first responders.
100W Power over Ethernet (PoE++)
This high performance Ethernet cable complies with the IEEE 802.3bt-2018 standard. It supports 100W PoE++, providing ample power to Type 4 PoE devices.

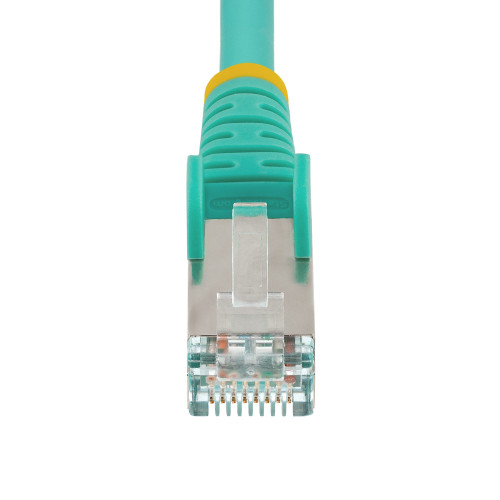

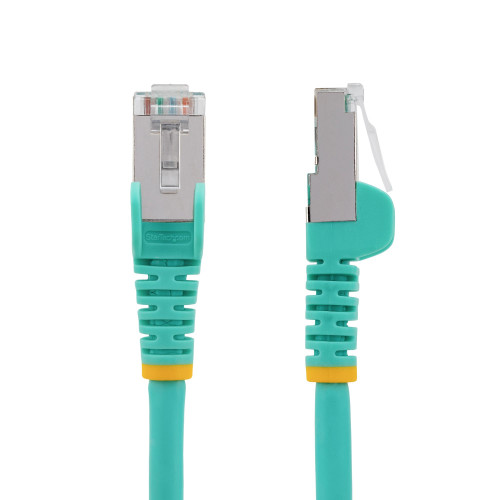

RJ45 Connectors with Snagless Clips
The Cat6a cable features snag-less connectors. Snagless molded boots protect the tab/latch on each RJ45 connector. The boots prevent the cable from snagging during cable routing and/or installation into network devices.
The molded boots feature integrated strain reliefs that prevent sharp connector/cable angles at the termination points.
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Cat6a Ethernet Low-Smoke Zero-Halogen (LSZH) Shielded cables support Multi-Gigabit/Multi-speed 1/2.5/5Gbps/10Gbp connections. It offers robust protection against electromagnetic interference (EMI/RFI) and noise, ensuring a fast, safe, and reliable network.
Low-Smoke Zero-Halogen (LSZH) CAT6A Ethernet Cable
LSZH Cat6a Network Cables are more eco-friendly than PVC cables. In the event of a fire, LSZH cables produce low levels of corrosive fumes and smoke. Low levels of acrid combustion pollutants promote increased visibility, resulting in safe and quick building evacuations by staff and first responders.
100W Power over Ethernet (PoE++)
This high performance Ethernet cable complies with the IEEE 802.3bt-2018 standard. It supports 100W PoE++, providing ample power to Type 4 PoE devices.
RJ45 Connectors with Snagless Clips
The Cat6a cable features snag-less connectors. Snagless molded boots protect the tab/latch on each RJ45 connector. The boots prevent the cable from snagging during cable routing and/or installation into network devices.
The molded boots feature integrated strain reliefs that prevent sharp connector/cable angles at the termination points.
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
| Design | |
| Product colour | Aqua colour |
| Features | |
| AWG wire size | 27 |
| Cable length | 0.305 m |
| Cable shape | Round |
| Cable shielding | S/FTP (S-STP) |
| Cable standard | Cat6a |
| Conductor material | Copper |
| Conductor type | Stranded |
| Connector 1 | RJ-45 |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | RJ-45 |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Frequency | 500 MHz |
| Jacket material | Low smoke zero halogen (LSZH) |
| Plug and Play | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Snagless cable boot | Yes |
| Total Power over Ethernet (PoE) budget | 100 W |
| Logistics data | |
| Master (outer) case height | 290 mm |
| Master (outer) case length | 220 mm |
| Master (outer) case width | 430 mm |
| Products per master (outer) case | 220 pc(s) |
| Network | |
| Cabling technology | 10GBase-T |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 85% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Data transfer rate | 10000 Mbit/s |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Outer diameter | 5.7 mm |
| Package depth | 195 mm |
| Package height | 8 mm |
| Package weight | 28.8 g |
| Package width | 220 mm |
| Weight | 21 g |

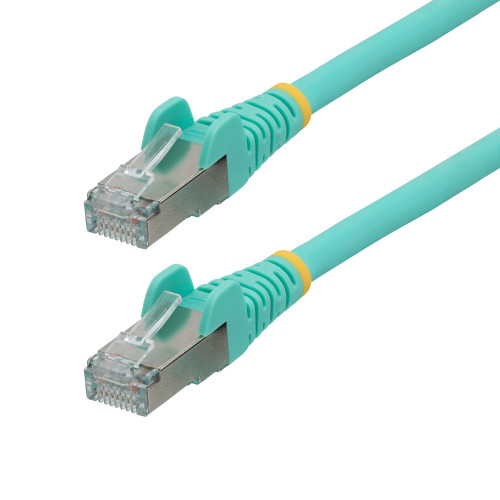

StarTech.com 1ft CAT6a Ethernet Cable - Aqua - Low Smoke Zero Halogen (LSZH) - 10GbE 500MHz 100W PoE++ Snagless RJ-45 w/Strain Reliefs S/FTP Network Patch Cord
- Brand: StarTech.com
- Product Code: NLAQ-1F-CAT6A-PATCH
- Availability: In Stock
-
$9.96
