Connects network hardware with a C16 power inlet, such as an Ethernet switch, to a PDU, UPS system or other AC power source with a NEMA 5-15R outlet.
- Right-angle C15 connector easy to connect in tight spaces
- Flexible 14 AWG wire for easy routing
- 125V/15A rating
- UL-listed
- Recommended for Cisco®, HP and other C15-compatible hardware

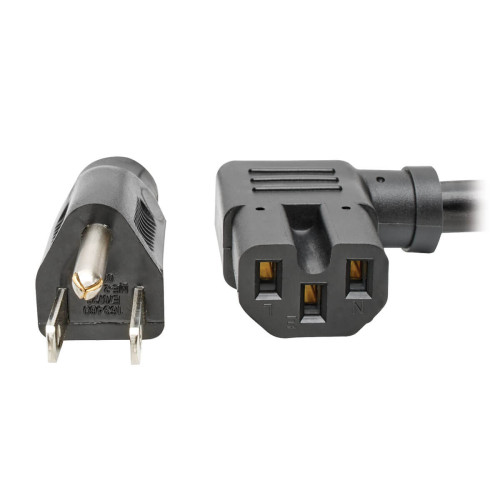

The P019-008-C15RA Heavy-Duty Power Cord features molded NEMA 5-15P and C15 connectors for attaching network hardware with a C16 inlet to a PDU, UPS system or other AC power source with a NEMA 5-15R outlet. This eight-foot cord supports voltages up to 125V. It’s UL listed and features a flexible SJT jacket and 14 AWG wire for easy routing through tight areas. In addition, the C15 connector is fixed at a right angle to allow more room for the cord and allow equipment to be pushed against a wall. The P019-008-C15RA is recommended for Cisco, HP and other hardware that accept C15 power connectors.
Heavy-Duty Power Solution
Connects network hardware with C16 power inlet to PDU, UPS system or AC wall socket with NEMA 5-15R outlet
Ideal for replacing an old or lost cord
Recommended for Cisco, HP and other C15-compatible hardware

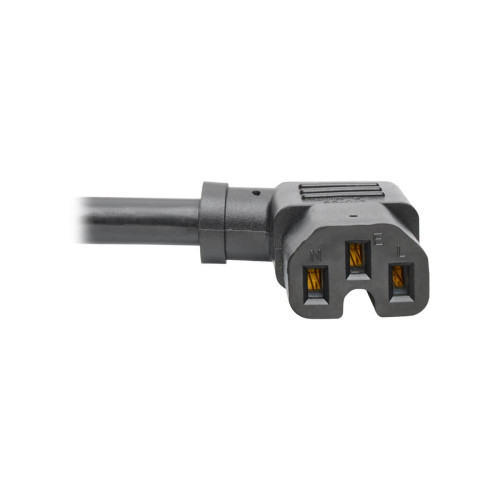

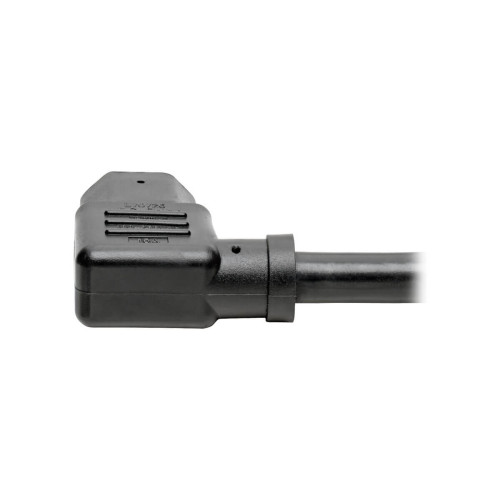

Right-Angle C15 Connector
Allows more room for connecting in tight spaces and moving connected equipment against a wall
Optimum Construction

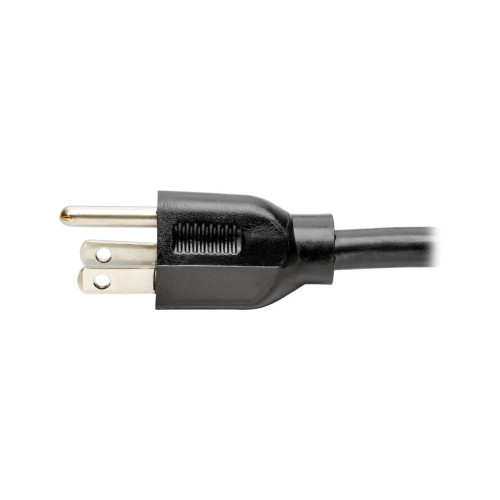

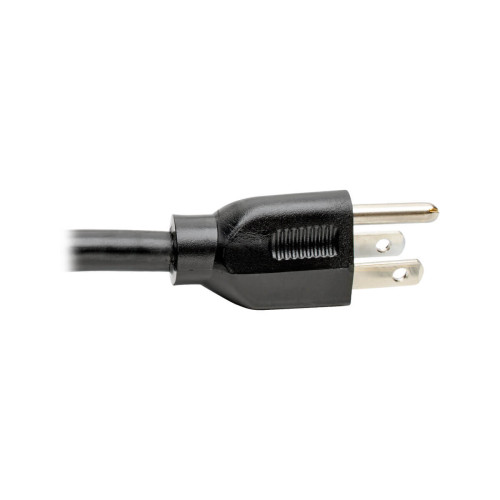

- Molded NEMA 5-15P and C15 connectors
- Flexible SJT jacket and 14 AWG wire for easy routing
- 125V/15A rating
- UL-listed
- Right-angle C15 connector easy to connect in tight spaces
- Flexible 14 AWG wire for easy routing
- 125V/15A rating
- UL-listed
- Recommended for Cisco®, HP and other C15-compatible hardware
The P019-008-C15RA Heavy-Duty Power Cord features molded NEMA 5-15P and C15 connectors for attaching network hardware with a C16 inlet to a PDU, UPS system or other AC power source with a NEMA 5-15R outlet. This eight-foot cord supports voltages up to 125V. It’s UL listed and features a flexible SJT jacket and 14 AWG wire for easy routing through tight areas. In addition, the C15 connector is fixed at a right angle to allow more room for the cord and allow equipment to be pushed against a wall. The P019-008-C15RA is recommended for Cisco, HP and other hardware that accept C15 power connectors.
Heavy-Duty Power Solution
Connects network hardware with C16 power inlet to PDU, UPS system or AC wall socket with NEMA 5-15R outlet
Ideal for replacing an old or lost cord
Recommended for Cisco, HP and other C15-compatible hardware
Right-Angle C15 Connector
Allows more room for connecting in tight spaces and moving connected equipment against a wall
Optimum Construction
- Molded NEMA 5-15P and C15 connectors
- Flexible SJT jacket and 14 AWG wire for easy routing
- 125V/15A rating
- UL-listed
Design | |
Certification | UL |
Country of origin | China |
Product colour | Black |
Features | |
AWG wire size | 14 |
Cable length | 2.5 m |
Cable type | SJT |
Connector 1 | NEMA 5-15P |
Connector 1 form factor | Straight |
Connector 1 gender | Male |
Connector 2 | IEC 320 |
Connector 2 form factor | Angled |
Connector 2 gender | Female |
Logistics data | |
Master (outer) case gross weight | 3.9 kg |
Master (outer) case GTIN (EAN/UPC) | 10037332202410 |
Master (outer) case height | 25.4 mm |
Master (outer) case length | 543.6 mm |
Master (outer) case width | 317.5 mm |
Products per master (outer) case | 10 pc(s) |
Products per pallet | 1 pc(s) |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 85% |
Operating temperature (T-T) | -20 - 60 °C |
Storage relative humidity (H-H) | 10 - 85% |
Storage temperature (T-T) | -20 - 60 °C |
Packaging data | |
Quantity per pack | 1 pc(s) |
Power | |
Input current | 15 A |
Input voltage | 125 V |
Sustainability | |
Sustainability certificates | RoHS |
Weight & dimensions | |
Package depth | 355.6 mm |
Package height | 12.7 mm |
Package weight | 450 g |
Package width | 299.7 mm |
Tripp Lite P019-008-C15RA power cable Black 2.5 m NEMA 5-15P IEC 320
- Brand: Tripp-Lite
- Product Code: P019-008-C15RA
- Availability: In Stock
-
$22.34
