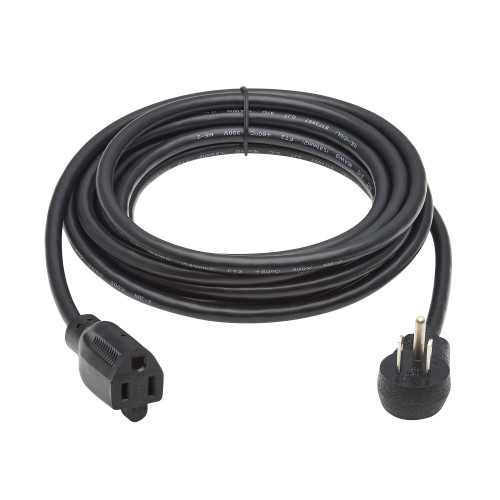

13-amp extension cord connects two devices with 5-15P/5-15R power connectors or extends your existing power connection.
15-Foot Extension Cord Connects Printers, Servers and Other Equipment

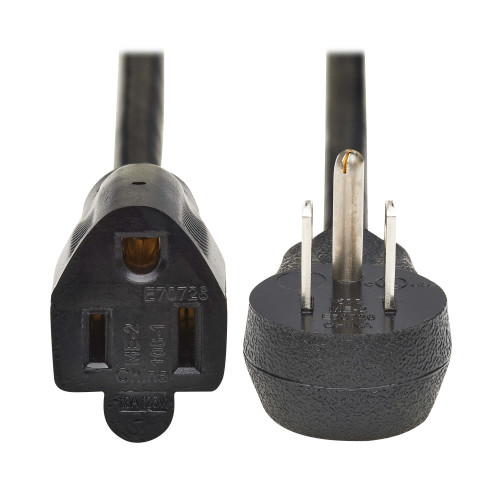

This power extension cable is designed for small data center or office workstation applications that do not require a heavy-gauge connection. With a right-angle NEMA 5-15P plug on one end and a NEMA 5-15R receptacle on the other, this cord can be used to power a printer or monitor; attach a rack server to a UPS system or PDU; or extend an existing connection up to 15 feet (4.6 meters). The 15-foot length allows you great flexibility in placing equipment with respect to the power outlet.

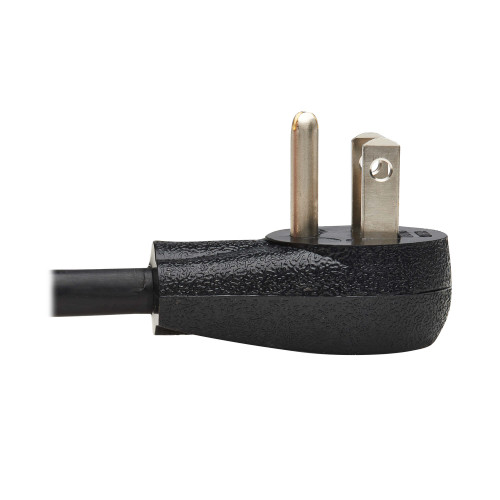

Right-Angle Plug Makes Connecting in Tight Spaces Easier
The space-saving right-angle NEMA 5-15P connector is easy to install in confined spaces, such as behind your computer desk or workstation. The right-angle construction also relieves strain on the cable and connector and prevents the cable from bending awkwardly.
15-Foot Extension Cord Connects Printers, Servers and Other Equipment
This power extension cable is designed for small data center or office workstation applications that do not require a heavy-gauge connection. With a right-angle NEMA 5-15P plug on one end and a NEMA 5-15R receptacle on the other, this cord can be used to power a printer or monitor; attach a rack server to a UPS system or PDU; or extend an existing connection up to 15 feet (4.6 meters). The 15-foot length allows you great flexibility in placing equipment with respect to the power outlet.
Right-Angle Plug Makes Connecting in Tight Spaces Easier
The space-saving right-angle NEMA 5-15P connector is easy to install in confined spaces, such as behind your computer desk or workstation. The right-angle construction also relieves strain on the cable and connector and prevents the cable from bending awkwardly.
| Design | |
| Country of origin | China |
| Product colour | Black |
| Features | |
| AWG wire size | 16 |
| Cable length | 4.6 m |
| Cable type | SJT |
| Connector 1 | NEMA 5-15P |
| Connector 1 form factor | Angled |
| Connector 1 gender | Male |

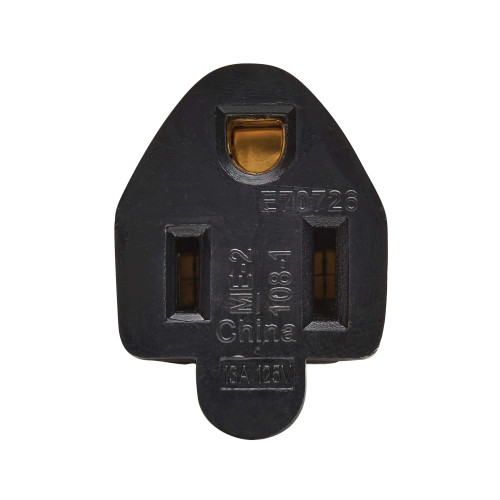

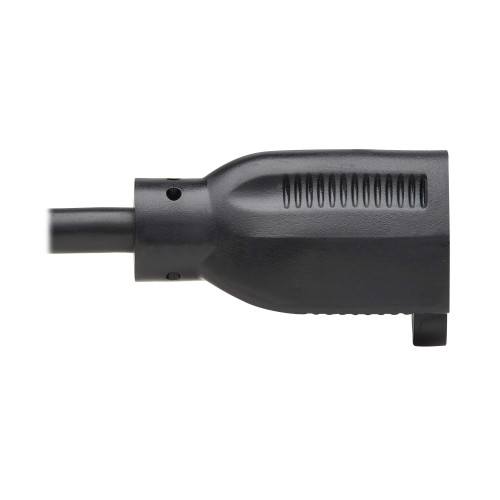

| Connector 2 | NEMA 5-15R |
| Connector 2 form factor | Straight |
| Connector 2 gender | Female |
| Connector angle | 90° |
| Jacket material | Polyvinyl chloride (PVC) |
| Number of conductors | 3 |
| Logistics data | |
| Harmonized System (HS) code | 8544.42.9010 |
| Master (outer) case gross weight | 5.22 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332275247 |
| Master (outer) case height | 549.9 mm |
| Master (outer) case length | 25.4 mm |
| Master (outer) case width | 329.9 mm |
| Products per master (outer) case | 10 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Power | |
| Input current | 13 A |
| Input voltage | 125 V |
| Sustainability | |
| Sustainability certificates | REACH, RoHS |
| Sustainability compliance | Y |
| Weight & dimensions | |
| Diameter | 8.3 mm |
| Package depth | 12.7 mm |
| Package height | 359.9 mm |
| Package weight | 480 g |
| Package width | 299.7 mm |
Tripp Lite Power Extension Cord, Right-Angle NEMA 5-15P to NEMA 5-15R - 13A, 120V, 16 AWG, 15 ft. (4.6 m), Black
- Brand: Tripp-Lite
- Product Code: P022-015-13A15D
- Availability: In Stock
-
$6.34
