C20 to C19 Power Cable for Network Devices That Require a Heavy-Gauge Connection
This rugged cord features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. It can be used to connect a server, router, switch, blade server enclosure or other network device to a UPS system or PDU. It is also an ideal replacement or upgrade from the standard power cord provided by the device's manufacturer. The 6-ft. (1.83 m) length allows you flexibility in placing equipment with respect to the power outlet.

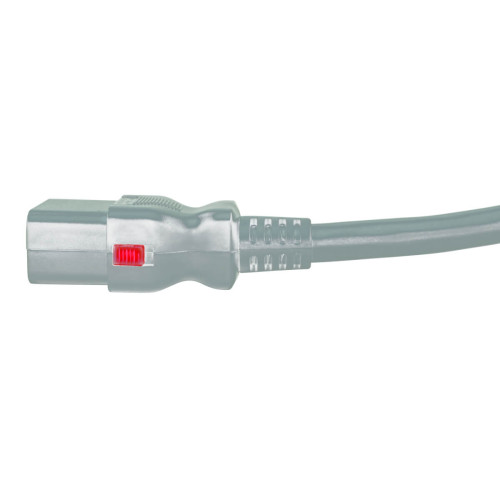

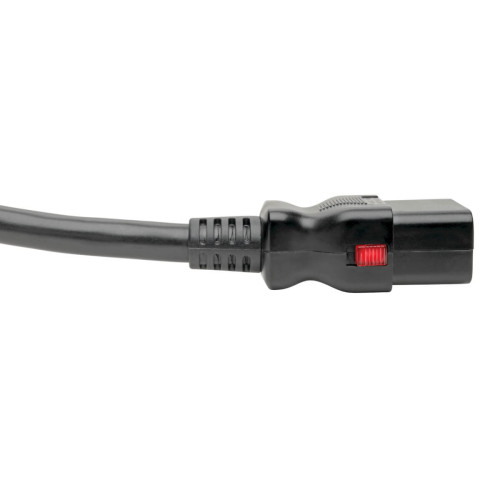

Locking C19 Connector Helps Prevent Accidental Disconnection and Expensive Downtime
Having a cable come loose accidentally can mean the loss of power and costly downtime. The locking C19 connector helps you avoid such danger, protecting critical equipment by maintaining a secure link without failure. The locking cable is also invaluable when moving equipment in a rack or removing equipment from tight areas, ensuring the power cord always stays connected.
Lifetime Warranty
The P036-L06 is backed by a lifetime warranty, ensuring reliability and performance.
This rugged cord features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. It can be used to connect a server, router, switch, blade server enclosure or other network device to a UPS system or PDU. It is also an ideal replacement or upgrade from the standard power cord provided by the device's manufacturer. The 6-ft. (1.83 m) length allows you flexibility in placing equipment with respect to the power outlet.
Locking C19 Connector Helps Prevent Accidental Disconnection and Expensive Downtime
Having a cable come loose accidentally can mean the loss of power and costly downtime. The locking C19 connector helps you avoid such danger, protecting critical equipment by maintaining a secure link without failure. The locking cable is also invaluable when moving equipment in a rack or removing equipment from tight areas, ensuring the power cord always stays connected.
Lifetime Warranty
The P036-L06 is backed by a lifetime warranty, ensuring reliability and performance.
| Design | |
| Certification | UL Listed |
| Country of origin | China |
| Product colour | Black |
| Features | |
| AWG wire size | 12 |
| Cable length | 1.8 m |
| Connector 1 | IEC C20 |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | IEC C19 |
| Connector 2 form factor | Straight |
| Connector 2 gender | Female |
| Connector 2 lockable | Y |
| Number of conductors | 3 |
| Suitable for use in country/location | North America |
| Logistics data | |
| Master (outer) case gross weight | 4.45 kg |
| Master (outer) case GTIN (EAN/UPC) | 10037332218312 |
| Master (outer) case height | 450.1 mm |
| Master (outer) case length | 25.4 mm |
| Master (outer) case width | 450.1 mm |
| Products per master (outer) case | 10 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 65% |
| Operating temperature (T-T) | -20 - 105 °C |
| Storage temperature (T-T) | -20 - 105 °C |
| Power | |
| Input voltage | 100 - 250 V |
| Maximum current | 20 A |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Package depth | 12.7 mm |
| Package height | 325.1 mm |
| Package weight | 440 g |
| Package width | 218.2 mm |

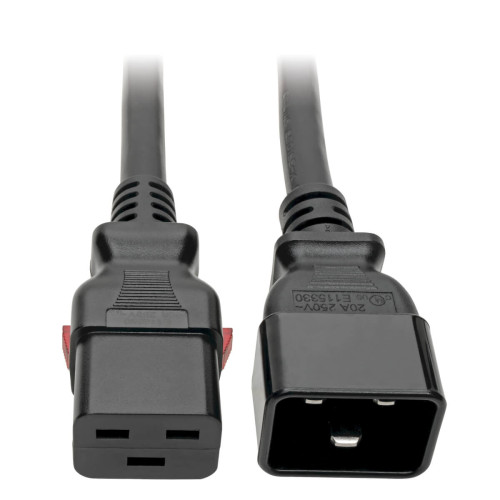

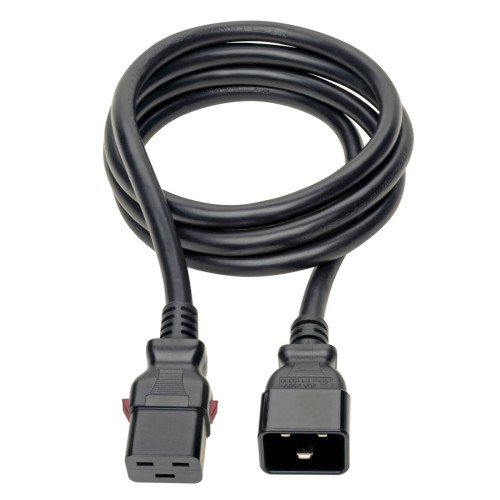

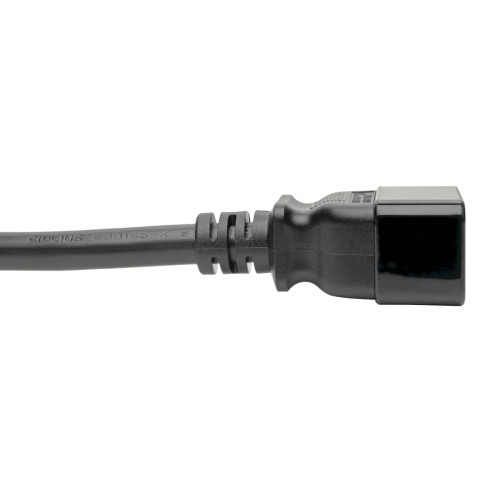

Tripp Lite P036-L06 Power Extension Cord, Locking C19 to C20 - Heavy-Duty, 20A, 100-250V, 12 AWG, 6 ft. (1.83 m), Black
- Brand: Tripp-Lite
- Product Code: P036-L06
- Availability: In Stock
-
$23.35
