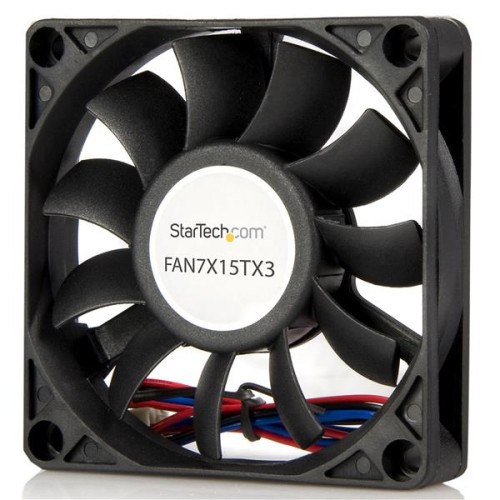

Add additional chassis cooling with a 70mm ball bearing fan

This versatile 70mm fan is an ideal replacement fan for keeping your computer running cool. The fan can be powered through a TX3 connection, and features a dual ball bearing design that ensures reliable cooling and longer fan lifespan.

The fan can be used to replace the fan component of some CPU coolers or mounted to the side panel of a computer case and features a tachometer pin on the TX3 motherboard connector that provides the host system with fan operating status information.

The Advantage

- A dual ball bearing design ensures reliability and longer life
- Backed by a 2-year warranty and free lifetime technical support
Certification RoHS
Product colour Black
Fan diameter 7 cm
Material Plastic
Number of fans 1 fan(s)
Type Fan
Logistics data
Harmonized System (HS) code 84733080
Operational conditions
Operating relative humidity (H-H) 0 - 65%
Operating temperature (T-T) -10 - 70 °C
Storage temperature (T-T) -40 - 75 °C
Other features
Connector(s) 1 - TX3 Female
Dimensions (WxDxH) 10 x 60 x 60 mm
Product life 50000 h
Rotational speed 3500 RPM
Maximum airflow 29.58 cfm
Noise level (high speed) 34 dB
Rotational speed (max) 3500 RPM
Suitable location Computer case
Power consumption (typical) 3.12 W
Rated current 0.18 A
Voltage 12 V
Sustainability certificates RoHS
Technical details
Mean time between failures (MTBF) 50000 h
Weight & dimensions
Depth 70 mm
Height 70 mm
Package depth 143 mm
Package height 32 mm
Package weight 75 g
Package width 96 mm
Weight 38 g
Width 15 mm
