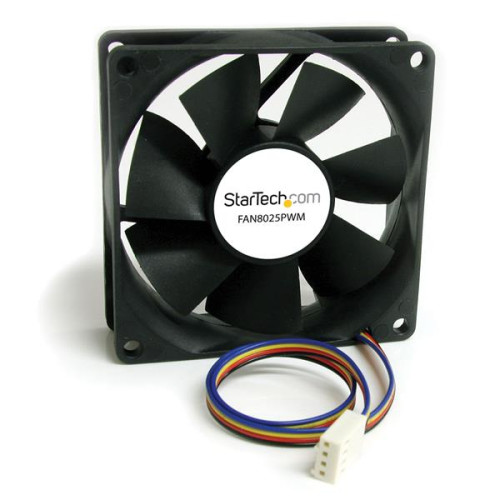

Add a Variable Speed, PWM-Controlled Cooling Fan to a Computer Case

The FAN8025PWM 80mm PWM Case Fan adds an efficient air cooling solution to computer cases or other enclosures, to keep components running optimally.

With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.

Backed by a 2-year warranty and free lifetime technical support.

The Advantage

- PWM control enables the fan to be controlled by the motherboard according to current system requirements, ensuring optimal system performance
- Ever Lubricate bearing design increases reliability and lifespan over fans with a traditional sleeve bearing design
- Backed by a 2-year warranty and free lifetime technical support
Product colour Black
Fan diameter 8 cm
Fan performance 25.02 cfm
Material Plastic
Type Fan
Logistics data
Harmonized System (HS) code 84733080
Operational conditions
Operating relative humidity (H-H) 0 - 65%
Operating temperature (T-T) -10 - 70 °C
Storage relative humidity (H-H) -20 - 70%
Other features
Connector(s) 1 - Molex Fan (4 pin; PWM)
Dimensions (WxDxH) 80 x 80 x 25 mm
Rotational speed 2500 RPM
Noise level (high speed) 28 dB
Suitable location Computer case
Rated current 0.16 A
Voltage 12 V
Technical details
Mean time between failures (MTBF) 40000 h
Weight & dimensions
Package depth 143 mm
Package height 32 mm
Package weight 111 g
Package width 96 mm
Weight 86 g

Write a review

Please login or register to review 80x25mm Computer Case Fan with PWM – Pulse Width Modulation Connector

  • Brand:
  • Product Code: FAN8025PWM
  • Availability: In Stock
  • $11.36
