Add additional chassis cooling with a 80mm ball bearing fan

This versatile PC case fan measures 8cm x 8cm x 2.5cm (3 1/8" x 3 1/8" x 1"), designed to fit a broad range of computer case designs, helping to improve internal airflow within the computer case by circulating cool air into the case or exhausting warm air away from the computer. A quiet cooling solution, the 8cm dual ball-bearing fan features a high-efficiency blade design that's capable of moving 32 CFM throughout the computer case. This broadly compatible PC cooling solution can be powered through a simple TX3 (3-pin) connection to the computer power supply and is backed by StarTech.com's 2-year warranty.

The StarTech.com Advantage

- A dual ball bearing design ensures reliability and longer life
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Design
Fan connector 3-pin
Product colour Black
Features
Fan diameter 8 cm
Material Plastic
Number of fans 1 fan(s)
Type Fan
Logistics data
Harmonized System (HS) code 84733080
Operational conditions
Operating temperature (T-T) -10 - 80 °C
Packaging content
Screws included Y
Packaging data
Number of screws 4
Performance
Bearing type Ball bearing
Maximum airflow 37.3 cfm
Noise level (high speed) 34 dB
Rotational speed (max) 3000 RPM
Suitable location Computer case
Power
Power consumption (typical) 1.92 W
Rated current 0.16 A
Voltage 12 V
Sustainability
Sustainability certificates RoHS
Technical details
Mean time between failures (MTBF) 56609 h
Weight & dimensions
Depth 80 mm
Height 25 mm
Package depth 142 mm
Package height 32 mm
Package weight 97 g
Package width 97 mm
Weight 70 g
Width 80 mm

Write a review

Please login or register to review

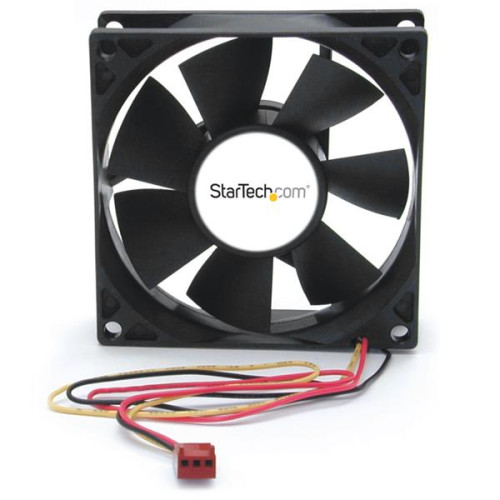

StarTech.com 80x25mm Dual Ball Bearing Computer Case Fan w/ TX3 Connector

  • Brand: StarTech.com
  • Product Code: FANBOX2
  • Availability: In Stock
  • $10.22
