PCI | RS-232 Serial | IEEE 1284 Parallel | Lifetime WarrantyThe StarTech.com Advantage
| Design | |
| Product colour | Black |
| Features | |
| Chipset | Asix - MCS9865 |
| Data transfer rate (max) | 0.0015 Gbit/s |
| FIFO (First In, First Out) | 256 B |
| Flow Control type | N, RTS/CTS, XON/XOFF |
| Parity bit | Even, Mark, N, Odd, Space |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 340 mm |
| Master (outer) case length | 385 mm |
| Master (outer) case width | 360 mm |
| Products per master (outer) case | 40 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Other features | |
| Internal | Y |
| Packaging content | |
| User guide | Y |
| Packaging data | |
| Mounting brackets included | Y |
| Performance | |
| Linux operating systems supported | Y |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Ports & interfaces | |
| Expansion card form factor | Full-height / Low-profile |
| Host interface | PCI/PCI-X |
| Output interface | Serial |
| Serial ports quantity | 2 |
| Sustainability | |
| Sustainability certificates | CE, RoHS |
| System requirements | |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Technical details | |
| Baud rate | 115.2 Kbit/s |
| Data bits | 5, 6, 7, 8, 9 |
| Serial interface type | RS-232 |
| Stop bits | 1, 1.5, 2 |
| Weight & dimensions | |
| Depth | 134 mm |
| Height | 120 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 190 g |
| Package width | 142 mm |
| Weight | 141 g |
| Width | 21.6 mm |

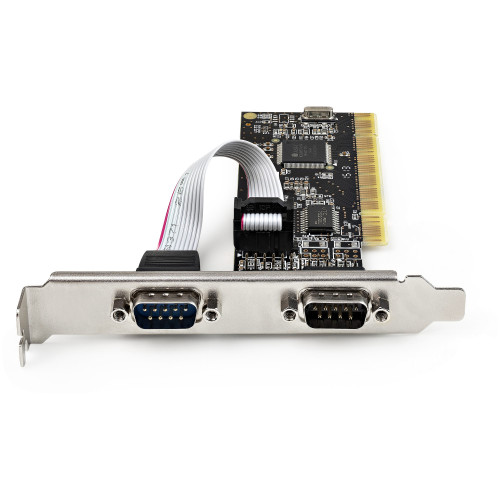

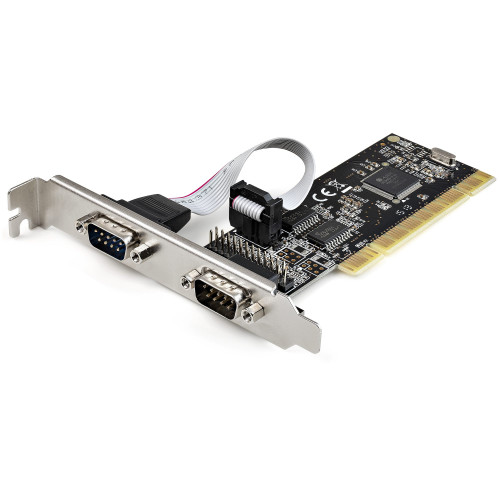

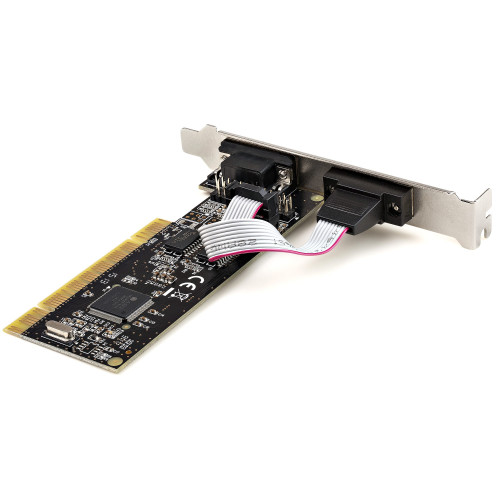

StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25) - PCI Combo Adapter Card - PCI Expansion Card Controller - PCI to Printer Card
- Brand: StarTech.com
- Product Code: PCI2S1P2
- Availability: In Stock
-
$28.98
