Install half-height/low profile x1 PCI Express interface cards in a standard PCI expansion slot

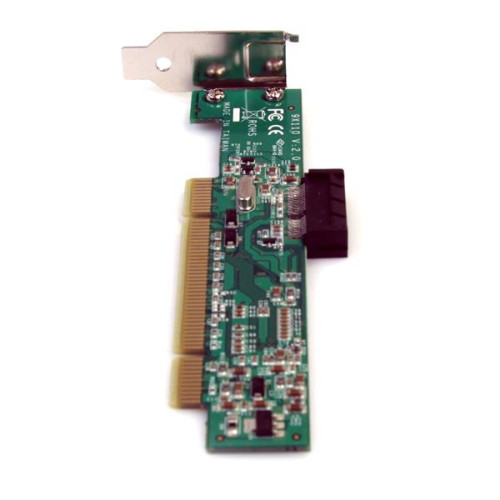

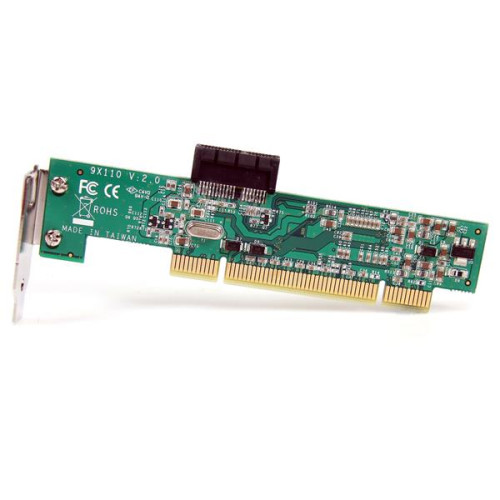

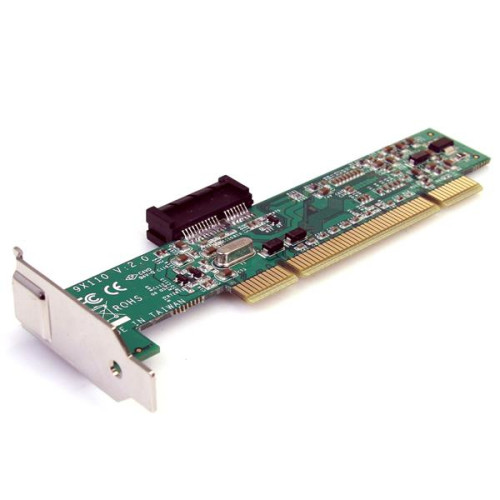

The PCI1PEX1 PCI to PCI Express Adapter card lets you use low profile PCIe expansion cards in a server/desktop motherboard PCI slot. The adapter connects through a 32-bit PCI slot to provide a low profile PCIe x1 slot in its place; a spare, full size bracket is included for installation in larger desktop or server expansion slots that can accommodate a full-sized card.

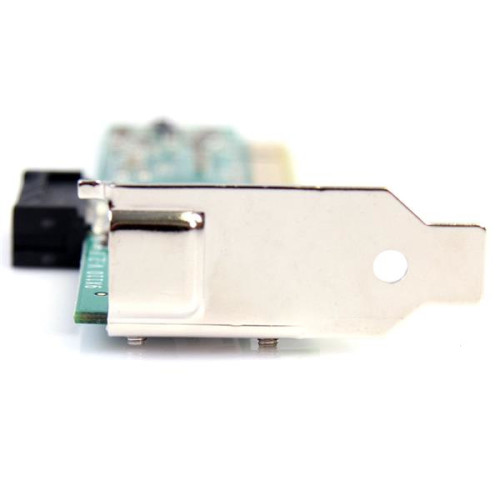

The PCI to PCI Express Adapter features an innovative bracket design that adapts and secures the low profile PCI Express card into the converted slot, ensuring a versatile and economical solution for extending the usability of older PCI motherboards or using low profile PCIe cards that do not have PCI equivalents.
The StarTech.com Advantage
- The unique bracket design allows a low profile/half-height PCI Express card to work seamlessly in a PCI-based expansion slot
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
The PCI1PEX1 PCI to PCI Express Adapter card lets you use low profile PCIe expansion cards in a server/desktop motherboard PCI slot. The adapter connects through a 32-bit PCI slot to provide a low profile PCIe x1 slot in its place; a spare, full size bracket is included for installation in larger desktop or server expansion slots that can accommodate a full-sized card.
The PCI to PCI Express Adapter features an innovative bracket design that adapts and secures the low profile PCI Express card into the converted slot, ensuring a versatile and economical solution for extending the usability of older PCI motherboards or using low profile PCIe cards that do not have PCI equivalents.
The StarTech.com Advantage
- The unique bracket design allows a low profile/half-height PCI Express card to work seamlessly in a PCI-based expansion slot
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
| Design | |
| Certification | CE, FCC, TAA |
| Features | |
| Chipset | Pericom - PI7C9X111SL |
| Quantity | 1 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -10 - 95 °C |
| Other features | |
| Internal | Y |
| Packaging content | |
| Manual | Y |
| Ports & interfaces | |
| Expansion card standard | PCI 2.3 |
| Host interface | PCI |
| Output interface | PCIe |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Depth | 135 mm |
| Height | 20 mm |
| Package depth | 173 mm |
| Package height | 33 mm |
| Package weight | 102 g |
| Package width | 140 mm |
| Weight | 32 g |
| Width | 60 mm |
StarTech.com PCI to PCI Express Adapter Card
- Brand: StarTech.com
- Product Code: PCI1PEX1
- Availability: In Stock
-
$44.30
