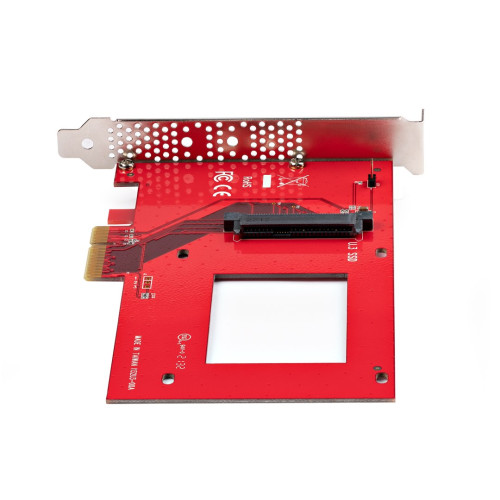

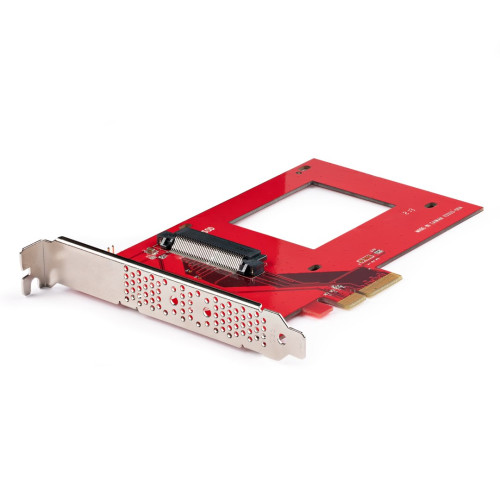

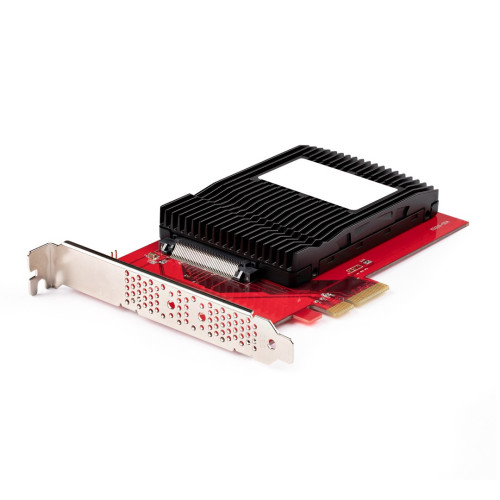

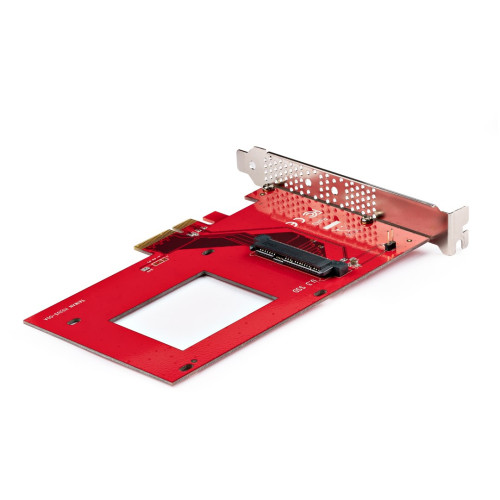

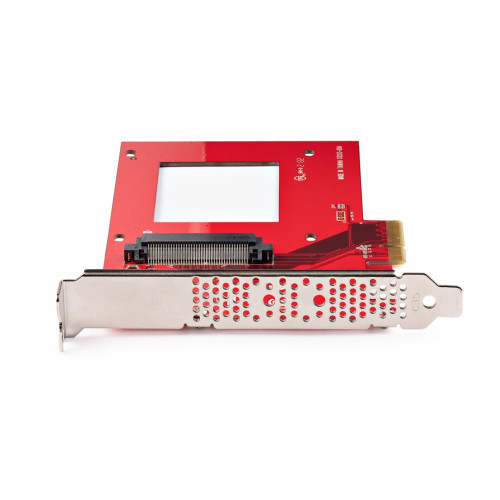

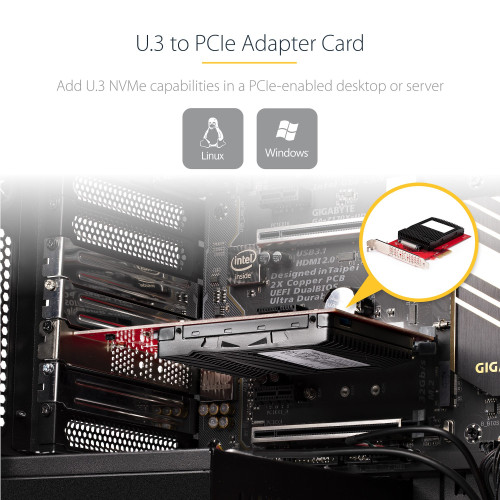

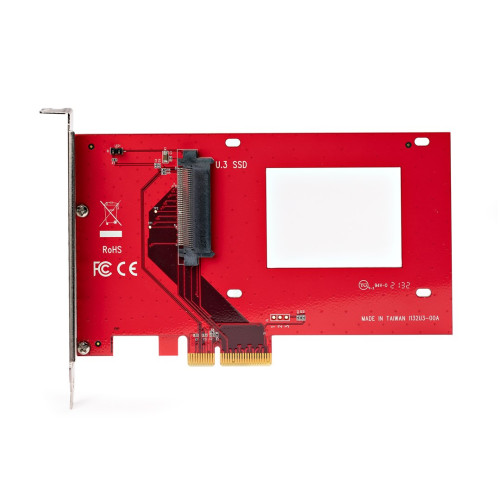

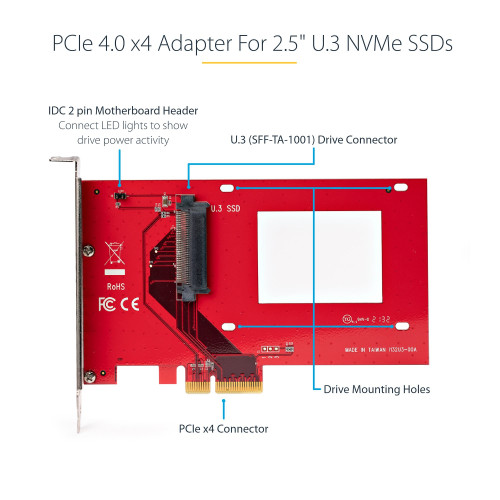

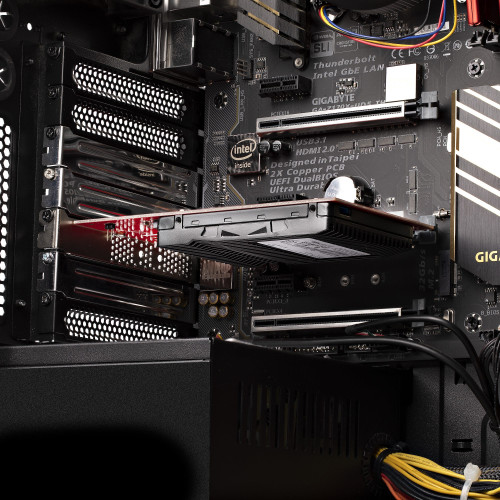

Mount a 2.5" U.3 NVMe SSD into a desktop computer or server, utilizing a PCIe x4 expansion slotAdd a 2.5 inch U.3 NVMe SSD into a PCIe 4.0 x4/x8/x16 slot in a desktop or server using the included screws, enabling ultra-fast data access.Add U.3 Capabilities to a Desktop or ServerInstall an SFF-TA-1001 SSD into a desktop or server using an available PCI Express 4.0 slot. The pre-installed full-profile bracket and included drive mounting screws enable the connection of a U.3 NVMe drive to a PCIe slot, avoiding the need for a drive backplane or additional cables. This adapter is not compatible with U.2 drives.Universal CompatibilityThe Adapter Card is backward compatible with motherboards that feature x4, x8, and/or x16 PCIe 3.0 slots. The U.3 Adapter requires no additional drivers or software and works with all workstation and server operating systems, such as Windows, Windows Server, and Linux.Optimal Airflow and Reliable PerformanceThe vented full-profile bracket and a large cutout in the PCB allow for better airflow and heat dissipation, which helps maintain optimal and reliable performance while avoiding thermal throttling.The StarTech.com Advantage
Design | |
LED indicators | Activity, Power |
Product colour | Red |
Features | |
Hot-swap | N |
Plug and Play | Y |
Logistics data | |
Master (outer) case height | 490 mm |
Master (outer) case length | 340 mm |
Master (outer) case width | 460 mm |
Products per master (outer) case | 60 pc(s) |
Operational conditions | |
Operating relative humidity (H-H) | 20 - 80% |
Operating temperature (T-T) | 0 - 60 °C |
Storage temperature (T-T) | -40 - 80 °C |
Other features | |
Internal | Y |
Packaging content | |
Quick installation guide | Y |

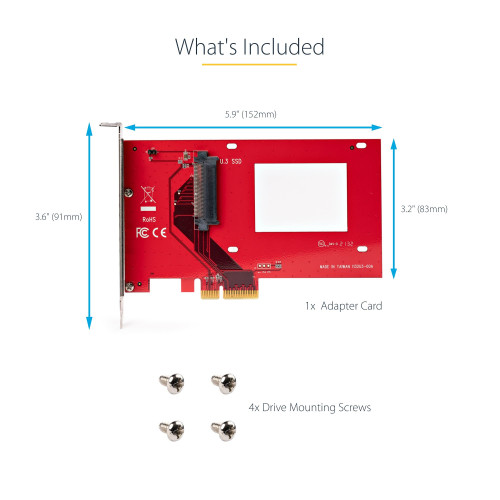

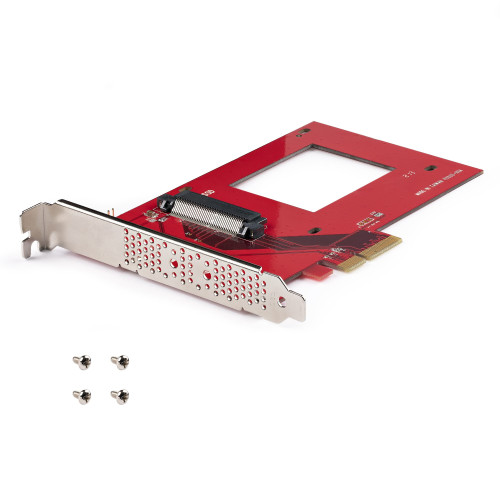

Screws included | Y |
Ports & interfaces | |
Host interface | PCIe |
Output interface | U.3 |
System requirements | |
Supported storage drive heights | 5,7,9.5,12.5,15 mm |
Technical details | |
Mean time between failures (MTBF) | 21693912 h |
Weight & dimensions | |
Depth | 154 mm |
Height | 1.5 mm |
Package depth | 155 mm |
Package height | 30 mm |
Package weight | 130 g |
Package width | 215 mm |
Weight | 62 g |
Width | 90 mm |
StarTech.com U.3 to PCIe Adapter Card, PCIe 4.0 x4 Adapter For 2.5" U.3 NVMe SSDs, SFF-TA-1001 PCI Express Add-in Card for Desktops/Servers, TAA Compliant - OS Independent
- Brand: StarTech.com
- Product Code: PEX4SFF8639U3
- Availability: In Stock
-
$43.13
