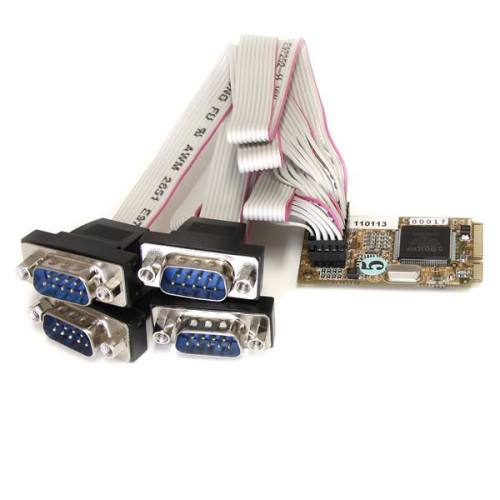

Add Four RS232 Serial Ports to an Embedded System through a mini PCI Express Slot
The MPEX4S952 4-Port RS232 Mini PCI Express Serial Card (16650 UART) turns a mini-PCIe slot into four RS232 (DB9) serial ports with data rates up to 921.6 Kbps - a cost-saving solution for adding serial support to embedded systems missing the functionality.
A native PCIe single-chip design enables you to take advantage of full PCI Express bus capability, by providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional "bridge chip" serial cards .
Backed by a StarTech.com Lifetime Warranty and free lifetime technical support.
The StarTech.com Advantage
- The smallest form factor available, for internally adding serial ports to any embedded system
- Native single-chip design means up to 48% less load on your CPU which is critical for small embedded PCs that use low power, low MHz CPUs
The MPEX4S952 4-Port RS232 Mini PCI Express Serial Card (16650 UART) turns a mini-PCIe slot into four RS232 (DB9) serial ports with data rates up to 921.6 Kbps - a cost-saving solution for adding serial support to embedded systems missing the functionality.
A native PCIe single-chip design enables you to take advantage of full PCI Express bus capability, by providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional "bridge chip" serial cards .
Backed by a StarTech.com Lifetime Warranty and free lifetime technical support.
The StarTech.com Advantage
- The smallest form factor available, for internally adding serial ports to any embedded system
- Native single-chip design means up to 48% less load on your CPU which is critical for small embedded PCs that use low power, low MHz CPUs
| Design | |
| Product colour | Green |
| Features | |

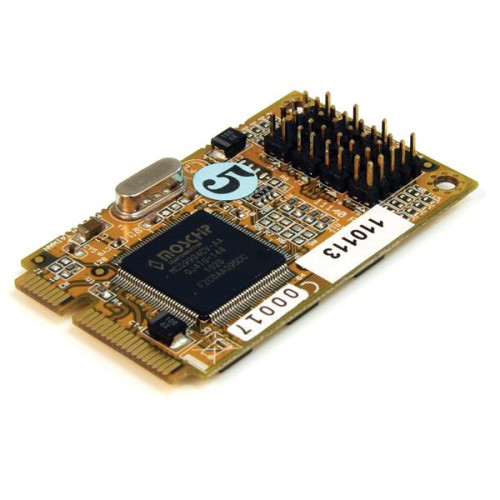

| Chipset | MosChip MCS9904CV-AA |
| FIFO (First In, First Out) | 256 B |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Other features | |
| Compliance industry standards | PCI Express 1.1 |
| Data transfer rate | 0.921 Mbit/s |
| Internal | Y |
| Quantity outer carton | 50 pc(s) |
| Packaging content | |
| User guide | Y |
| Performance | |
| Compatible operating systems | Windows 7 (32/64bit)/ Vista(32/64)/ XP(32/64)/ CE 6.0 Windows Server 2008 R2/ 2003(32/64)/ 2000 Linux 2.6.x |
| Linux operating systems supported | Y |
| Windows operating systems supported | Y |
| Ports & interfaces | |
| Host interface | Mini PCI Express |
| Output interface | Serial |
| Serial ports quantity | 4 |
| Technical details | |
| Serial interface type | RS-232 |
| Weight & dimensions | |
| Depth | 51 mm |
| Height | 30 mm |
| Package depth | 212 mm |
| Package height | 40 mm |
| Package weight | 200 g |
| Package width | 145 mm |
| Weight | 150 g |
| Width | 10 mm |
StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART
- Brand: StarTech.com
- Product Code: MPEX4S552
- Availability: In Stock
-
$68.11
