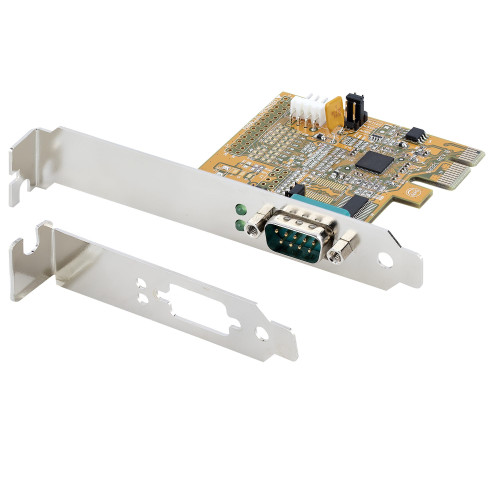

Baud Rate 921.6 Kbps per Port | 256-byte FIFO | PCIe 2.0 x1Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device.Legacy ConnectivityInstall this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.Connect with EaseThe RS-232 card features 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps, low-profile bracket is included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.11050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
| Design | |
| LED indicators | Activity |
| Product colour | Yellow |
| Features | |
| Chipset | ASIX - AX99100, ASIX - ZT3243LFEY |
| FIFO (First In, First Out) | 256 B |
| Material | Steel |
| Parity bit | Even, Mark, N, Odd, Space |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 340 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case width | 530 mm |
| Products per master (outer) case | 50 pc(s) |
| Network | |
| Flow control support | Y |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Other features | |
| Internal | Y |
| Packaging content | |
| Quick installation guide | Y |
| Packaging data | |
| Mounting brackets included | Y |
| Performance | |
| Linux operating systems supported | Y |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Ports & interfaces | |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 2.0 |
| Host interface | PCIe |
| Output interface | Serial |
| Serial ports quantity | 1 |
| Sustainability | |
| Sustainability certificates | CE, RoHS |
| System requirements | |
| Server operating systems supported | Windows Server 2016, Windows Server 2019 |
| Technical details | |
| Baud rate | 921.6 Kbit/s |
| Data bits | 5, 6, 7, 8, 9 |
| Serial interface type | RS-232 |
| Weight & dimensions | |
| Depth | 67 mm |
| Height | 18 mm |
| Package depth | 144 mm |
| Package height | 38 mm |
| Package weight | 200 g |
| Package width | 207 mm |
| Weight | 42 g |
| Width | 65 mm |

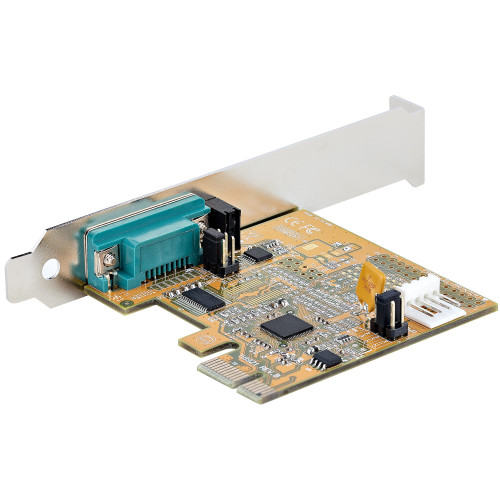

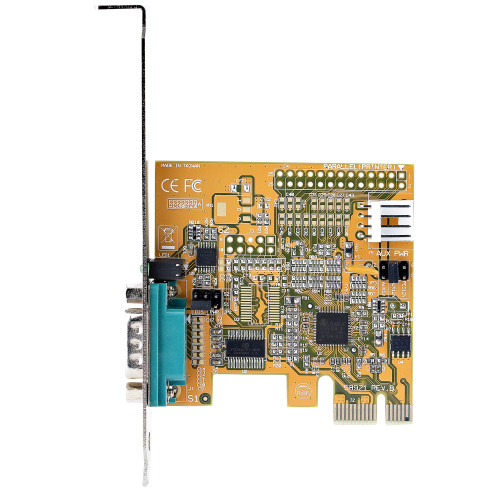

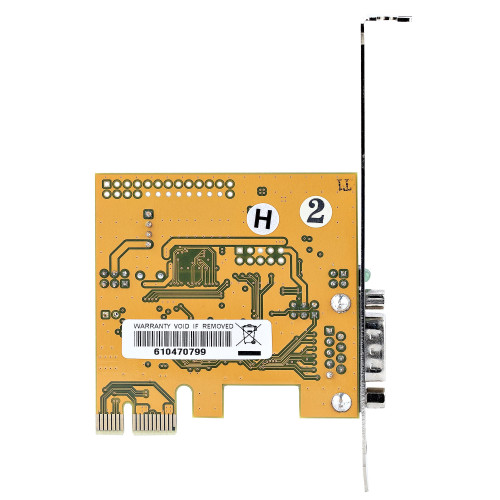

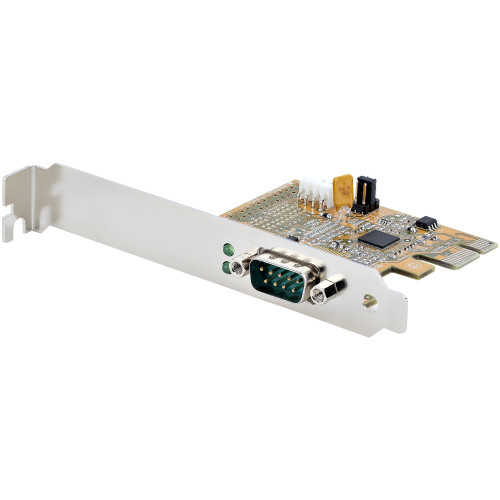

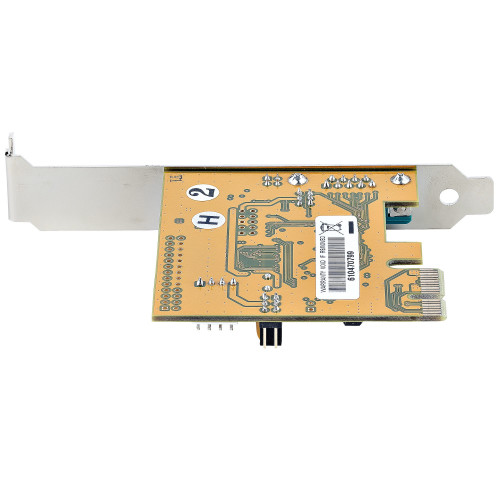

StarTech.com PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card w/ 16C1050 UART, Standard or Low Profile Brackets, COM Retention, Windows & Linux
- Brand: StarTech.com
- Product Code: 11050-PC-SERIAL-CARD
- Availability: In Stock
-
$47.91
