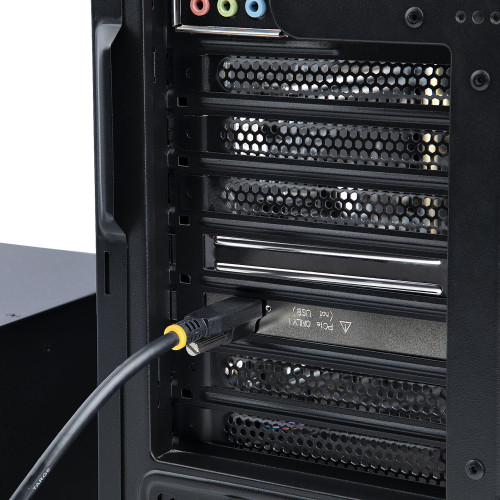

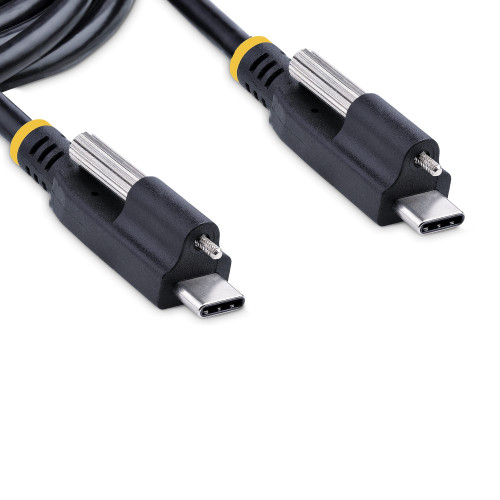

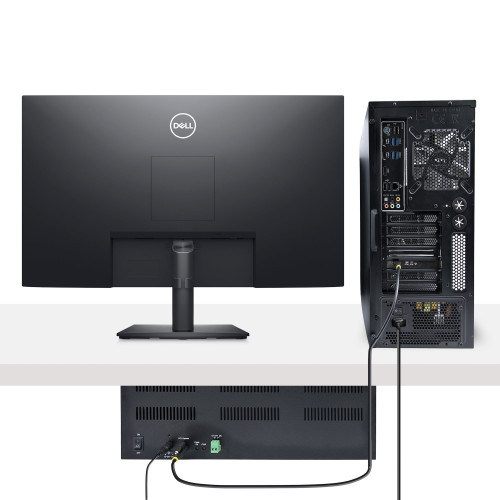

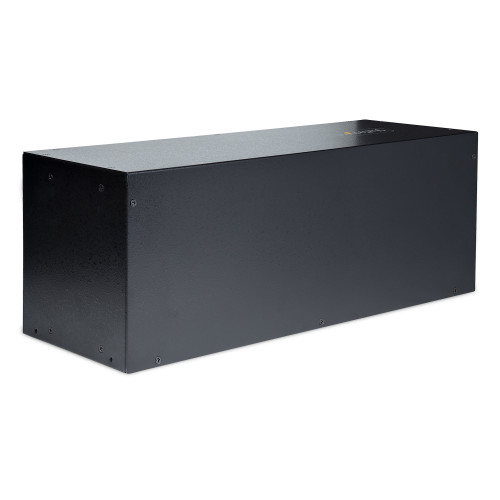

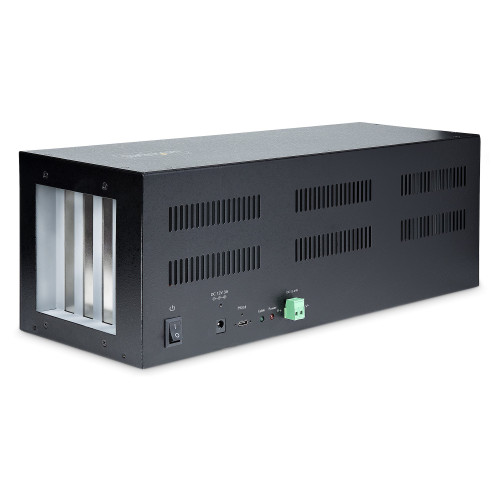

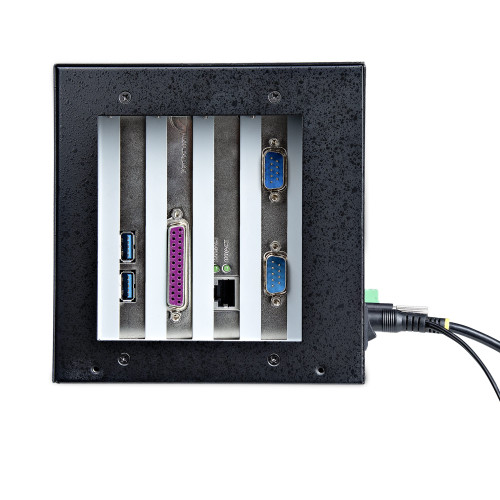

Steel Housing | Mounting Brackets | Screw-lock USB-C CableThe robust expansion chassis supports up to 4 PCIe x1 add-on cards and features up to 10Gbps of total bandwidth. The expansion chassis connects to the host using a proprietary USB-C PCIe x2 adapter card and a locking USB Type-C cable.External PCIe Expansion BoxThe chassis communicates with the desktop computer or server using a host card (PCIe 2.0 x2) in combination with the 5.9ft (1.8m) USB Type-C (USB-C) cable with screw-locks. The included low-profile bracket widens the compatibility as you can install the host card in small form factor (SFF) systems. Features support for PCI-E Advanced Error Reporting (AER) and EndPoint Cyclic Redundancy Check (ECRC). Both of these PCIe features to aid in establishing and maintaining PCIe connections between devices.The PCI express expansion box does not require drivers to be installed. It's operating system independent; meaning it can be used in Windows, Linux, or macOS. Note: the expansion cards installed in the chassis may require drivers.Robust ConstructionThe expansion chassis is built with SECC galvanized steel, enabling it to operate in harsh environments. It features an operating temperature range of 32° to 140°F (0° to 60°C). The vented design of the chassis allows for passive cooling and quiet operation. Secure the enclosure to the desired location using the mounting brackets and included hardware.Power OptionsPower the expansion chassis using the included 12V 3A power adapter or the terminal block port that supports 12 to 24V and 3A.ApplicationsThere are multiple application scenarios:• Upgrade or swap cards with ease.• Test hardware between multiple computers, operating systems, or with different devices/peripherals.• Maximize the I/O capabilities of the host system by installing Ethernet or fiber, USB, serial, or parallel PCIe cards.Avoid costly computer/server upgrades when more expansion slots are unavailable.The external PCIe slots for desktop is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
| Design | |
| Product colour | Black |
| Features | |
| Chipset | ASMedia - ASM1806 |
| Data transfer rate (max) | 10 Gbit/s |
| Material | Steel |
| Purpose | PC |
| Logistics data | |
| Master (outer) case height | 270 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case width | 520 mm |
| Products per master (outer) case | 2 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Other features | |
| Internal | N |

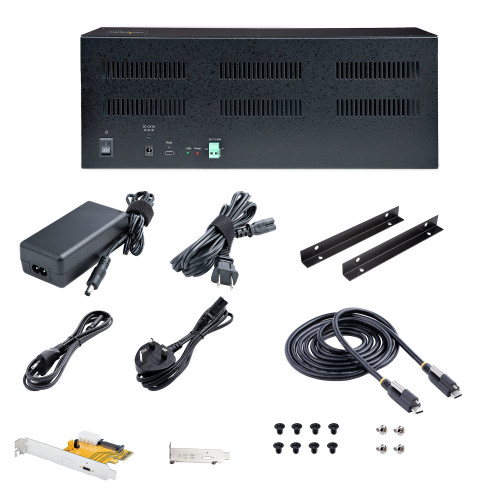

| Packaging content | |
| Cables included | USB Type-C to USB Type-C |
| User guide | Y |
| Packaging data | |
| Mounting brackets included | Y |
| Ports & interfaces | |
| DC-in jack | Y |
| Expansion card standard | PCIe 2.0 |
| Host interface | USB Type-C |
| Host interface gender | Female |
| Output interface | PCIe, Terminal |
| PCI Express slots quantity | 4 |
| Power | |
| External power adapter | Y |
| Output current | 3 A |
| Output voltage | 12 V |
| Power consumption (typical) | 36 W |
| Power supply input voltage | 100 - 240 V |
| Power supply | |
| Power supply included | Y |
| Weight & dimensions | |
| Package depth | 200 mm |
| Package height | 240 mm |
| Package weight | 6 kg |
| Package width | 420 mm |
StarTech.com 4-Slot PCIe Expansion Chassis with PCIe x2 Host Card, PCIe 2.0 - 10Gbps, External PCIe Slots for Desktops/Servers, PCI Express Expansion Box/Adapter, 4 PCIe x1 Slots
- Brand: StarTech.com
- Product Code: 4PCIE-PCIE-ENCLOSURE
- Availability: In Stock
-
$442.97
