Improves Your Computer or Server’s Performance and Storage Capabilities
This U.2 to PCI Express (PCIe) adapter connects a U.2 SSD or a 2.5-inch SATA SSD or HDD to your computer or server’s PCIe expansion slot. By converting a PCIe (SFF-8639) host interface, you can add terabytes (TB) of internal storage space and enhance your PC’s read/write speeds. The adapter is compatible with PCIe 3.0 motherboards. It is also backward compatible with earlier 2.0 and 1.0 versions.
Add an Optional M.2 Adapter for Expanded Functionality

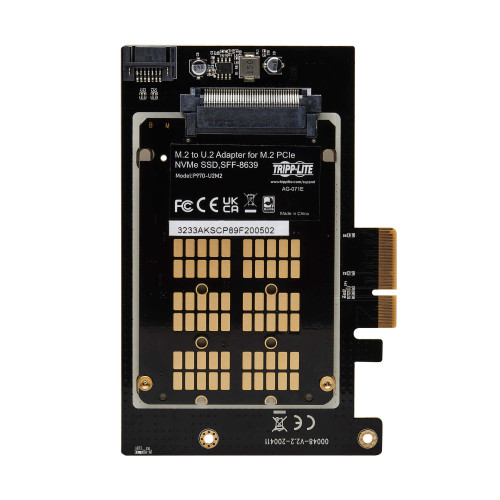

The PCE-U2-PX4 is compatible with P970-U2M2 U.2 to M.2 NVMe adapter (sold separately) to convert the PCIe expansion slot into an M.2 SSD module.
Just Plug and Play with No External Power Needed
Use the included 7-pin SATA cable to connect the PCE-U2-PX4 to the motherboard. No additional software or power is needed. The adapter is compatible with Windows (7 and higher) and macOS (High Sierra and higher).
This U.2 to PCI Express (PCIe) adapter connects a U.2 SSD or a 2.5-inch SATA SSD or HDD to your computer or server’s PCIe expansion slot. By converting a PCIe (SFF-8639) host interface, you can add terabytes (TB) of internal storage space and enhance your PC’s read/write speeds. The adapter is compatible with PCIe 3.0 motherboards. It is also backward compatible with earlier 2.0 and 1.0 versions.
Add an Optional M.2 Adapter for Expanded Functionality
The PCE-U2-PX4 is compatible with P970-U2M2 U.2 to M.2 NVMe adapter (sold separately) to convert the PCIe expansion slot into an M.2 SSD module.
Just Plug and Play with No External Power Needed
Use the included 7-pin SATA cable to connect the PCE-U2-PX4 to the motherboard. No additional software or power is needed. The adapter is compatible with Windows (7 and higher) and macOS (High Sierra and higher).
| Design | |
| Country of origin | China |
| Product colour | Black |
| Features | |
| Purpose | PC |
| Logistics data | |
| Harmonized System (HS) code | 8471.80.1000 |
| Master (outer) case gross weight | 950 g |
| Master (outer) case GTIN (EAN/UPC) | 10037332275346 |
| Master (outer) case height | 168.9 mm |
| Master (outer) case length | 145 mm |
| Master (outer) case width | 264.9 mm |
| Products per master (outer) case | 10 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 80% |
| Operating temperature (T-T) | 10 - 70 °C |
| Storage relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | 0 - 65 °C |
| Other features | |
| Internal | Y |
| Packaging content | |
| Cables included | SATA |
| Quick installation guide | Y |
| Packaging data | |
| Mounting brackets included | Y |
| Quantity per pack | 1 pc(s) |
| Performance | |
| Windows operating systems supported | Y |
| Ports & interfaces | |
| Host interface | PCIe |
| Output interface | U.2 |
| Storage | |
| NVMe | Y |
| Sustainability | |
| Sustainability certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Sustainability compliance | Y |
| System requirements | |
| Mac operating systems supported | Y |
| Weight & dimensions | |
| Package depth | 125 mm |
| Package height | 26.9 mm |
| Package weight | 70 g |
| Package width | 157 mm |
| Weight | 70 g |

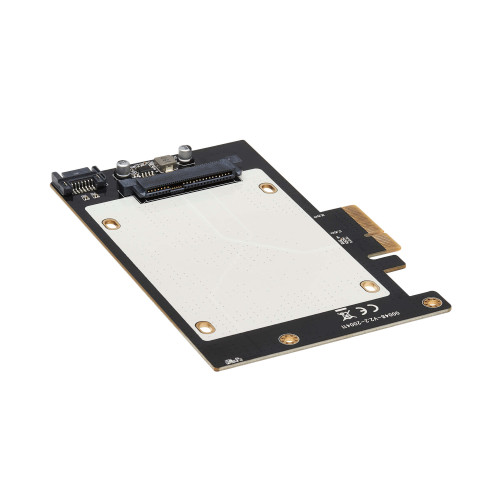

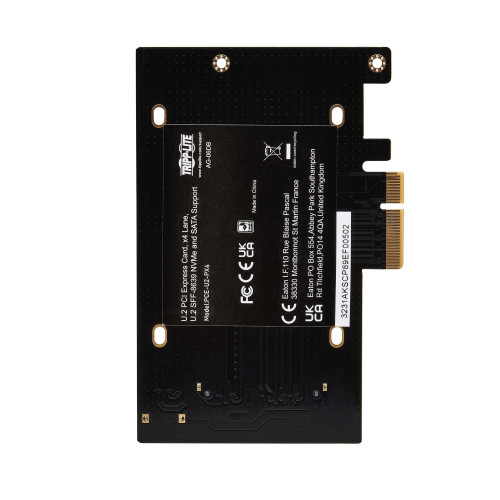

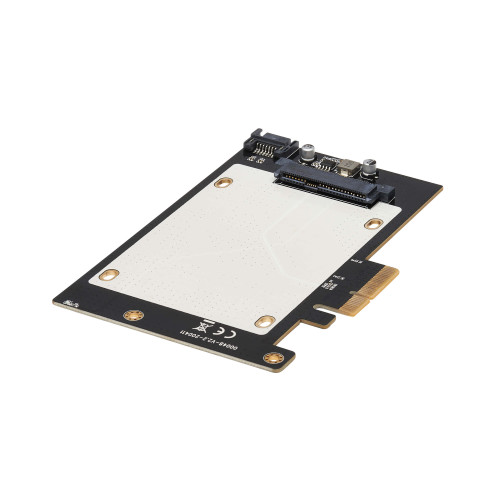

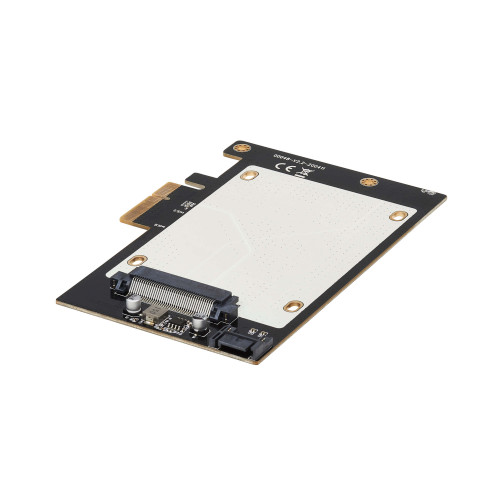

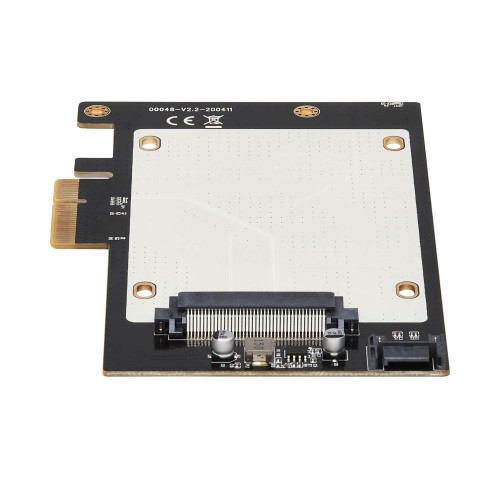

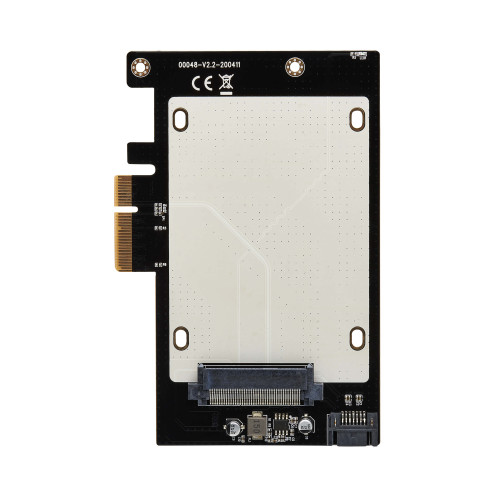

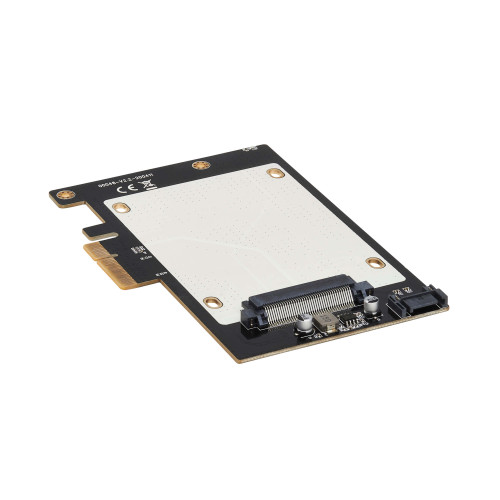

Tripp Lite PCE-U2-PX4 U.2 to PCIe Adapter for 2.5" NVMe U.2 SSD, SFF-8639, PCI Express (x4) Card
- Brand: Tripp-Lite
- Product Code: PCE-U2-PX4
- Availability: In Stock
-
$13.83
