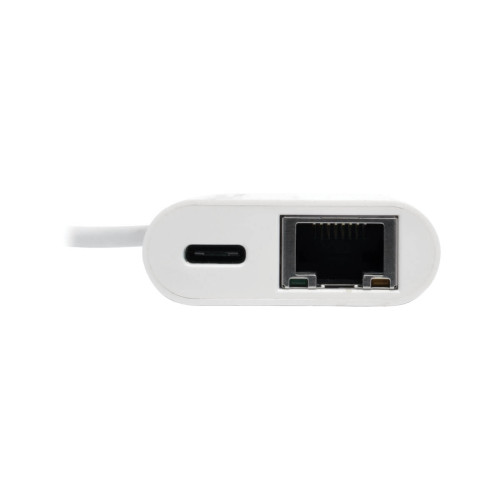

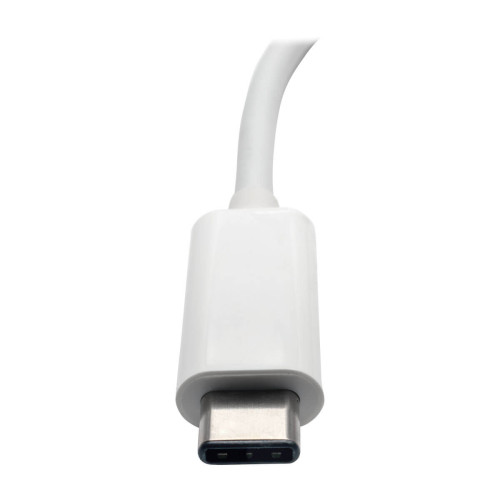

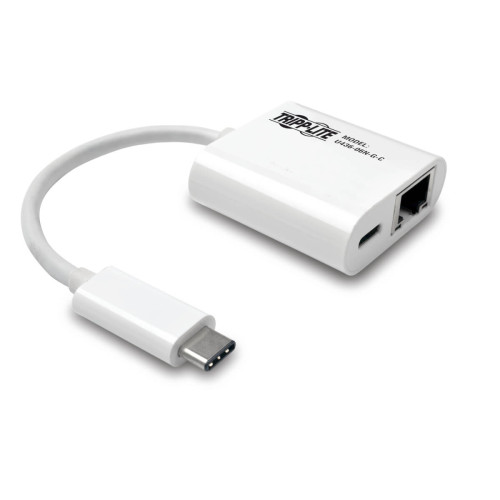

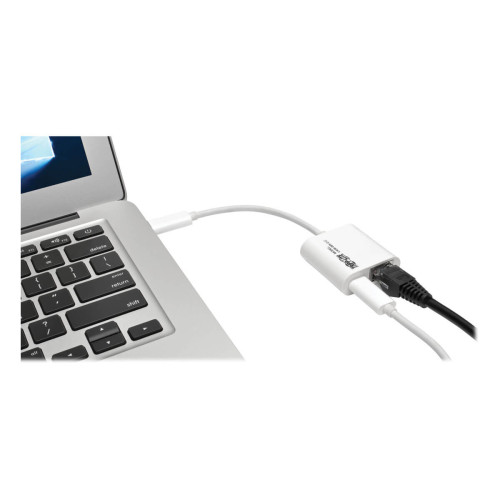

The U436-06N-G-C USB 3.1 Gen 1 USB-C to Gigabit Ethernet NIC Network Adapter allows USB Type-C or Thunderbolt 3 computers, laptops, tablets and other compatible devices without an NIC (Network Interface Controller) to connect to a network or the Internet using an RJ45 cable. It’s a more convenient and less expensive way to connect to a network than opening your device and installing an internal Ethernet card.
No software or drivers are needed. Connect the adapter’s USB-C male plug to the USB-C or Thunderbolt 3 port on your device. Then, connect the adapter’s RJ45 port to a network using a UTP cable, such as N201-Series Cat6 cables. The U436-06N-G-C allows you to transfer data quickly and stream audio and video at true 10/100/1000 Mbps Ethernet speeds. Two status LEDs illuminate when the adapter is successfully connected to the network (link) and transferring data (activity).
The USB-C charging port supports power input up to 20V 3A (60W). It powers the device that the U436-06N-G-C is plugged into by connecting the charging port to a USB-C wall charger.
Compliant with IEEE 802.3, 802.3u, 802.3ab and 802.3az standards. Supports 10/100/1000 auto-sensing, twisted-pair crossover detection, auto-correction and Wake-on-LAN power management. Compatible with Windows, Mac and Chromium operating systems. Backward compatible with previous USB versions.
Saves You Time and Money
Connects USB-C or Thunderbolt™ 3 devices to a network or the Internet without buying and installing an internal Ethernet card
Plug-and-play engineering—no software or drivers necessary
Compact and lightweight for easy carrying in your laptop bag
Excellent Speed and Versatile Performance
Sustains full 10/100/1000 Mbps network speeds for fast data transfer
2 LEDs indicate activity and link
Complies with IEEE 802.3, 802.3u, 802.3ab and 802.3az (Energy Efficient Ethernet) standards
Supports 10/100/1000 auto-sensing, twisted-pair crossover detection, auto-correction and Wake-on-LAN
Compatible with Windows, Mac and Chromium
Backward compatible with previous USB versions
USB-C Port for Charging Portable Devices
Supports power input up to 20V 3A (60W)
Connects to USB-C wall charger to power connected device
No software or drivers are needed. Connect the adapter’s USB-C male plug to the USB-C or Thunderbolt 3 port on your device. Then, connect the adapter’s RJ45 port to a network using a UTP cable, such as N201-Series Cat6 cables. The U436-06N-G-C allows you to transfer data quickly and stream audio and video at true 10/100/1000 Mbps Ethernet speeds. Two status LEDs illuminate when the adapter is successfully connected to the network (link) and transferring data (activity).
The USB-C charging port supports power input up to 20V 3A (60W). It powers the device that the U436-06N-G-C is plugged into by connecting the charging port to a USB-C wall charger.
Compliant with IEEE 802.3, 802.3u, 802.3ab and 802.3az standards. Supports 10/100/1000 auto-sensing, twisted-pair crossover detection, auto-correction and Wake-on-LAN power management. Compatible with Windows, Mac and Chromium operating systems. Backward compatible with previous USB versions.
Saves You Time and Money
Connects USB-C or Thunderbolt™ 3 devices to a network or the Internet without buying and installing an internal Ethernet card
Plug-and-play engineering—no software or drivers necessary
Compact and lightweight for easy carrying in your laptop bag
Excellent Speed and Versatile Performance
Sustains full 10/100/1000 Mbps network speeds for fast data transfer
2 LEDs indicate activity and link
Complies with IEEE 802.3, 802.3u, 802.3ab and 802.3az (Energy Efficient Ethernet) standards
Supports 10/100/1000 auto-sensing, twisted-pair crossover detection, auto-correction and Wake-on-LAN
Compatible with Windows, Mac and Chromium
Backward compatible with previous USB versions
USB-C Port for Charging Portable Devices
Supports power input up to 20V 3A (60W)
Connects to USB-C wall charger to power connected device
| Design | |
| Certification | 802.3; 802.3u; USB 1.1; USB 2.0, 3.0, 3.1 |
| Country of origin | Vietnam |
| Product colour | White |
| Features | |
| Plug and Play | Y |
| Logistics data | |
| Harmonized System (HS) code | 8517.62.0090 |
| Master (outer) case gross weight | 550 g |
| Master (outer) case GTIN (EAN/UPC) | 10037332193824 |
| Master (outer) case height | 115.1 mm |
| Master (outer) case length | 119.9 mm |
| Master (outer) case width | 255 mm |
| Products per master (outer) case | 10 pc(s) |
| Other features | |
| Internal | N |
| Packaging content | |
| Manual | Y |
| Ports & interfaces | |
| Host interface | USB Type-C |
| Output interface | RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Power | |
| Power consumption (typical) | 60 W |
| USB powered | Y |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Package depth | 97.5 mm |
| Package height | 20.1 mm |
| Package weight | 40 g |
| Package width | 119.9 mm |
| Weight | 50 g |
Tripp Lite U436-06N-G-C USB-C to Gigabit Network Adapter with USB-C PD Charging - Thunderbolt 3, White
- Brand: Tripp-Lite
- Product Code: U436-06N-G-C
- Availability: In Stock
-
$32.74
