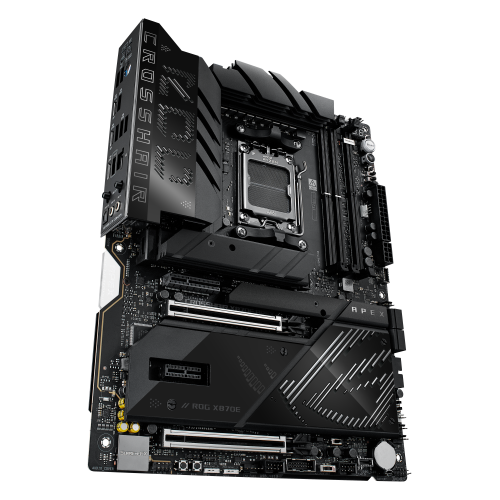

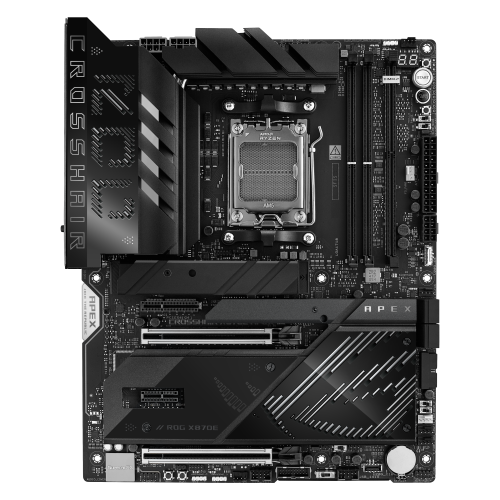

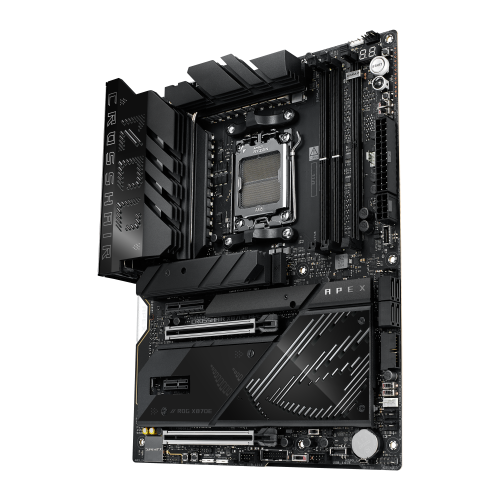

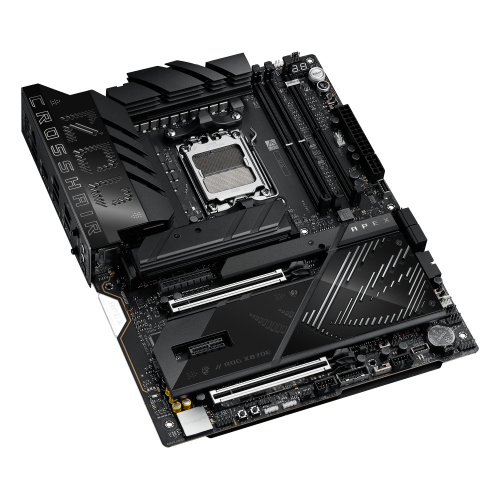

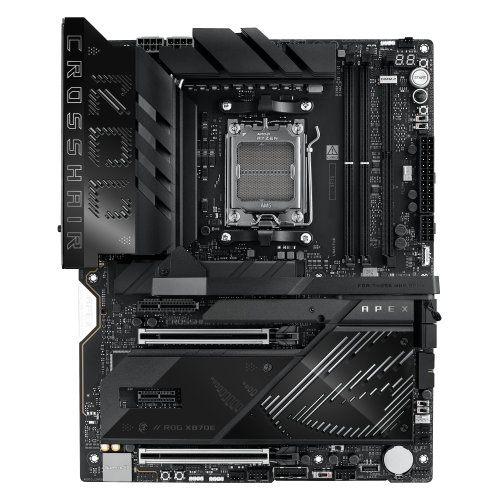

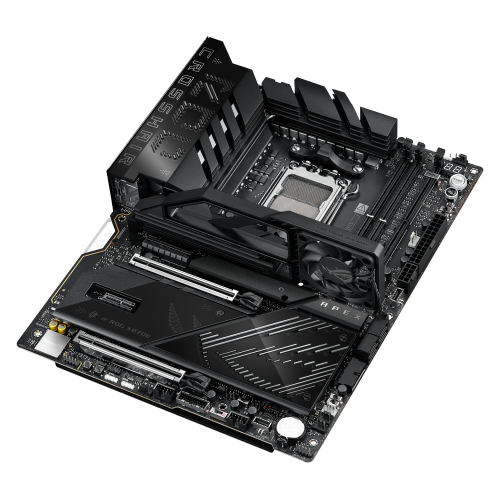

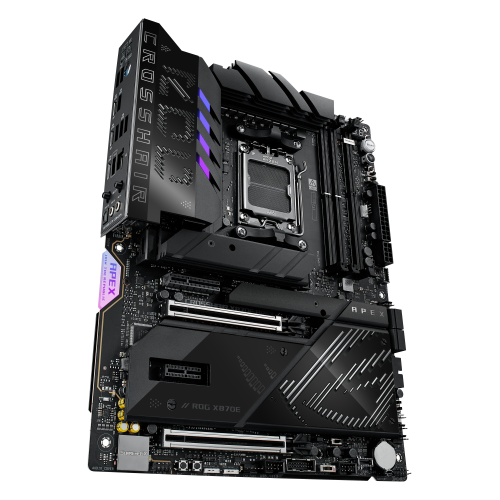

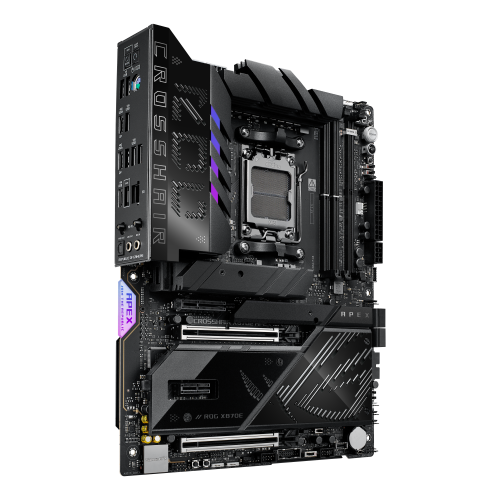

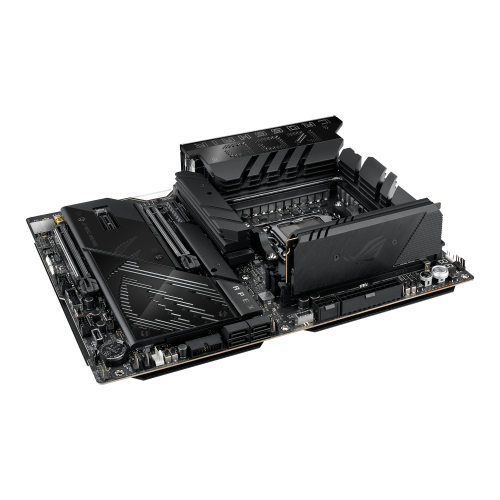

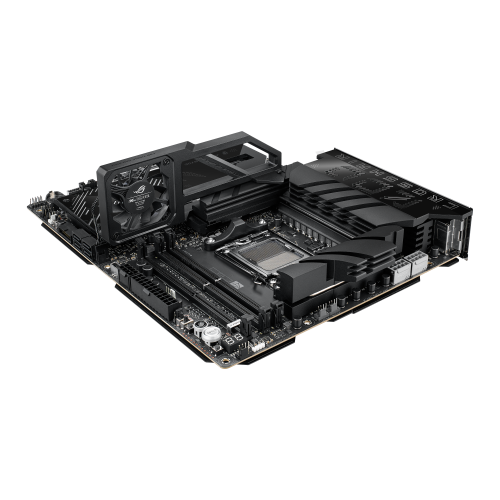

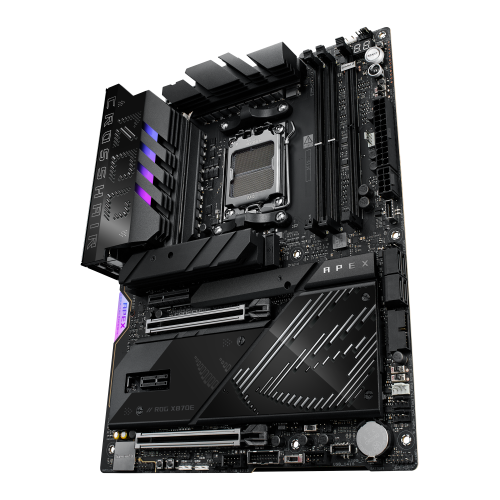

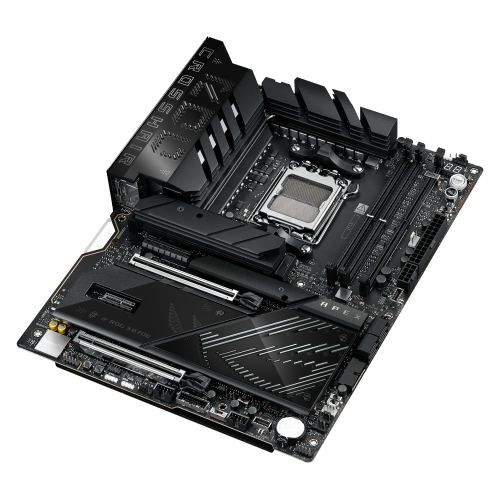

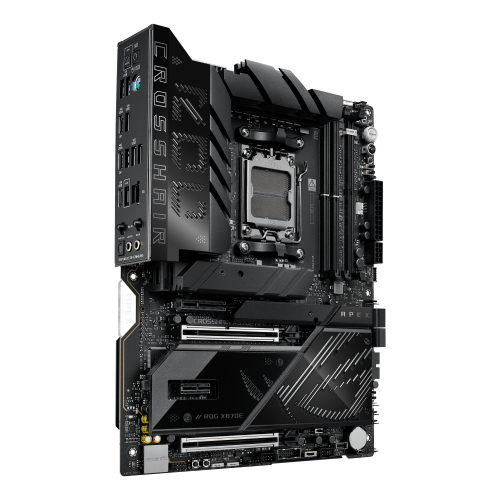

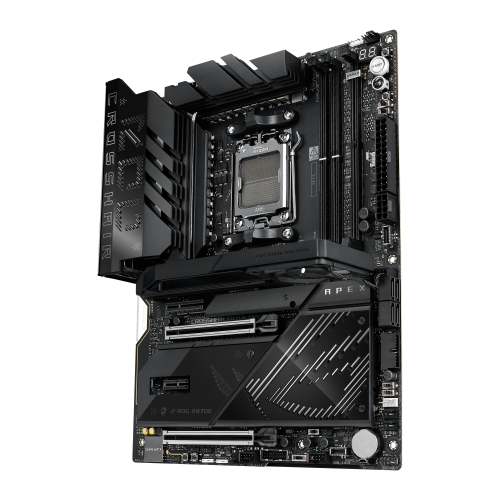

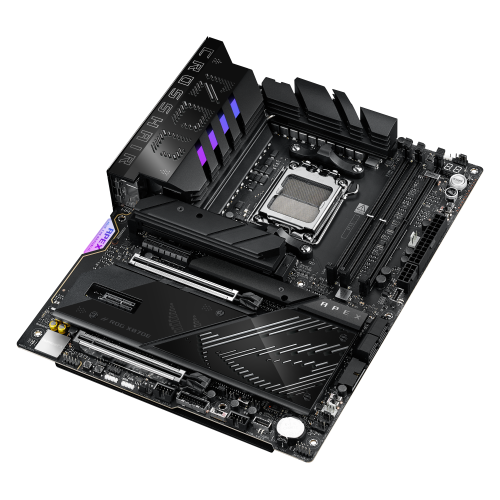

ROG Crosshair X870E APEX
The AI PC-ready ROG Crosshair X870E Apex is built for world-record overclocking, courtesy of extensive BIOS features and the exotic cooling of the ROG-exclusive Memory Fan Kit. Beyond its overclocking prowess, it delivers comprehensive support for cutting-edge graphics cards and storage, making it the ultimate platform for AM5 AMD Ryzen™ performance enthusiasts.
The AI PC-ready ROG Crosshair X870E Apex is built for world-record overclocking, courtesy of extensive BIOS features and the exotic cooling of the ROG-exclusive Memory Fan Kit. Beyond its overclocking prowess, it delivers comprehensive support for cutting-edge graphics cards and storage, making it the ultimate platform for AM5 AMD Ryzen™ performance enthusiasts.
| BIOS | |
| BIOS memory size | 512 Mbit |
| BIOS type | UEFI AMI |
| Design | |
| Component for | PC |
| Expansion slots | |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 22110 |
| 5th M.2 highest PCI Express generation | 4.0 |
| 5th M.2 largest key size | 22110 |
| Number of M.2 (M) slots | 5 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| Features | |
| Motherboard chipset family | AMD |
| Number of HDDs supported | 4 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of chassis fan connectors | 2 |
| Number of RGB LED pin headers | 3 |
| RGB LED pin header | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| USB 3.2 Gen 2x2 connectors | 2 |
| Memory | |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Network | |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ethernet interface type | 5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |

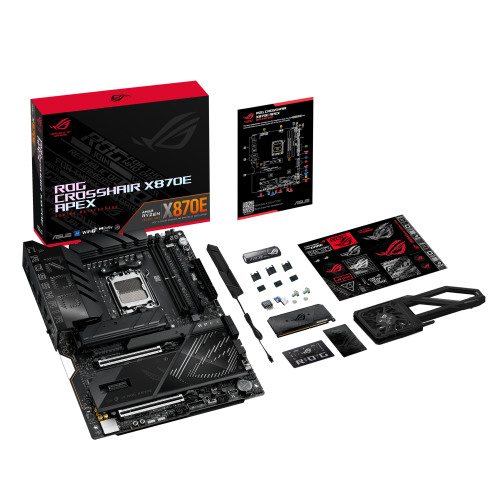

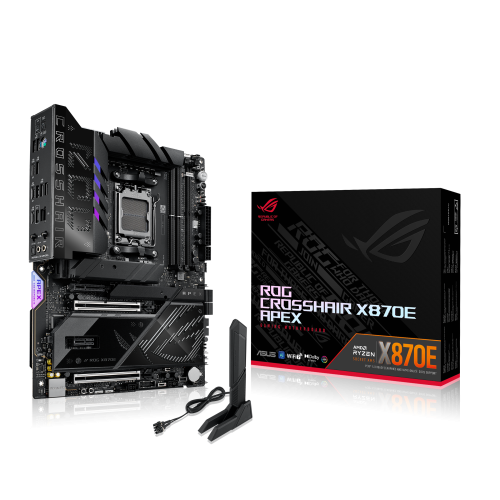

| Packaging content | |
| Antenna included | Yes |
| Cables included | SATA |
| Screws included | Yes |
| Packaging data | |
| Drivers included | Yes |
| Performance | |
| Audio output channels | 7.1 channels |
| Motherboard chipset | AMD X870E |
| Motherboard form factor | ATX |
| Windows operating systems supported | Windows 11 |
| Ports & interfaces | |
| DVI-D ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 0 |
| Number of SATA III connectors | 4 |
| PS/2 ports quantity | 1 |
| S/PDIF out port | Yes |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB4 Gen 3x2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| Processor | |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |

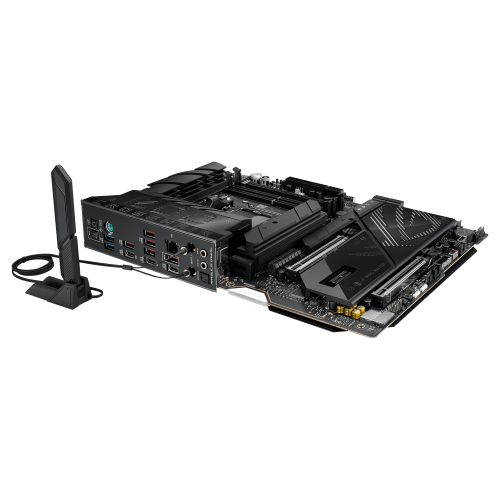

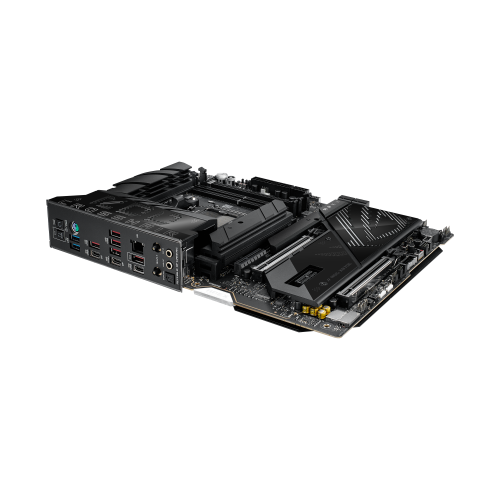

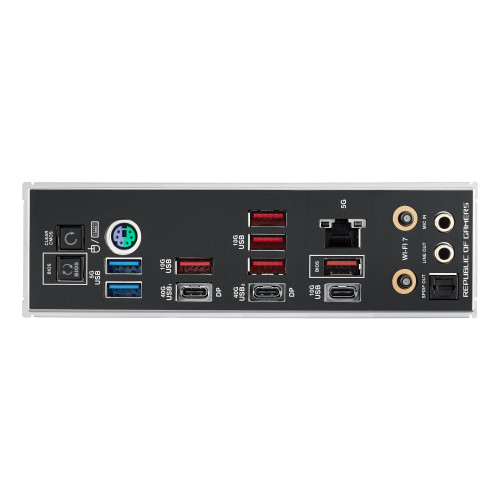

| Rear panel I/O ports | |
| WiFi-AP antenna jack | 1 |
| Storage | |
| Number of storage drives supported | 9 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Supported storage drive types | HDD & SSD |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| Weight & dimensions | |
| Depth | 244 mm |
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 4.16 kg |
| Package width | 370 mm |
| Width | 305 mm |
ASUS ROG CROSSHAIR X870E APEX AMD X870E Socket AM5 ATX
- Brand: Asus
- Product Code: ROG CROSSHAIR X870E APEX
- Availability: In Stock
-
$748.51
