Connects Your USB Device to a Wired Ethernet Network without an Internet Card Installed
This USB to Ethernet adapter allows you to instantly connect your computer, laptop, tablet or other USB-compatible device to a wired 10/100 Mbps fiber optic network, even if your device has no NIC (Network Interface Controller) installed. The adapter offers access to an Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. It transmits data up to 2 kilometers (1.2 miles) from your fiber network using a 1310 nm wavelength.

Hot-Swappable for Installation Without Network Interruption
This USB 2.0 Ethernet adapter is fully hot-swappable, so you can install it without a potentially costly network shutdown or device reboot. Just connect the built-in USB cable to your device’s USB port (which also powers the adapter), and wait for the installation process to finish (you may have to reboot your computer). Then, connect the LC duplex port using existing or newly run multimode fiber cable (such as N820-Series, sold separately).

Delivers Full Ethernet Performance with Audio and Video Streaming
The compact USB to Ethernet adapter supports full 10/100 Mbps network speeds and USB 2.0 speeds, allowing you to transfer data efficiently and stream audio and video. The direct fiber connection minimizes the risk of data leaks and electromagnetic interference (EMI). A blue LED indicates successful Ethernet connection and data transfer. The adapter works with Windows operating systems and is backward compatible with USB 1.1 devices.
Data transmission
Maximum data transfer rate 100 Mbit/s
Design
Certification CE, FCC, REACH
Component for Notebook
Country of origin China
Housing material ABS, Polyvinyl chloride (PVC)
Product colour White
Features
Maximum operating distance 2000 m
Keyboard
Connectivity technology Wired
Logistics data
Harmonized System (HS) code 8517.62.0090
Master (outer) case gross weight 1.3 kg
Master (outer) case GTIN (EAN/UPC) 10037332248470
Master (outer) case height 220 mm
Master (outer) case length 245.1 mm
Master (outer) case width 172 mm
Products per master (outer) case 10 pc(s)
Operational conditions
Maximum operating temperature 55 °C
Operating relative humidity (H-H) 5 - 90%
Operating temperature (T-T) 0 - 55 °C
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) 0 - 60 °C
Other features
Internal N
Quick start guide Y
Performance

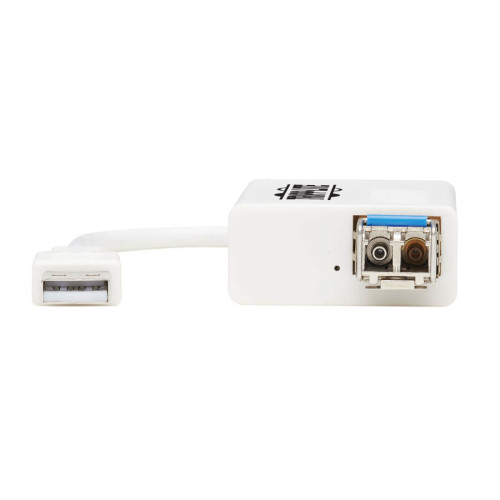

Fiber optic connector LC
USB version 2.0
Ports & interfaces
Fiber ports quantity 1
Host interface USB
Interface Fiber
Sustainability
Sustainability certificates RoHS
Weight & dimensions
Package depth 39.1 mm
Package height 157 mm
Package weight 130 g
Package width 111 mm
Weight 50 g

Write a review

Please login or register to review

Tripp Lite U236-MMF-LC USB 2.0 Ethernet NIC Adapter - 10/100 Mbps, 100Base-FX, LC, Multimode Fiber, White

  • Brand: Tripp-Lite
  • Product Code: U236-MMF-LC
  • Availability: In Stock
  • $110.33
