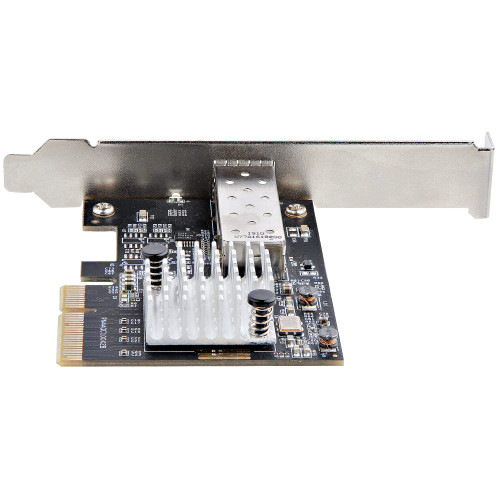

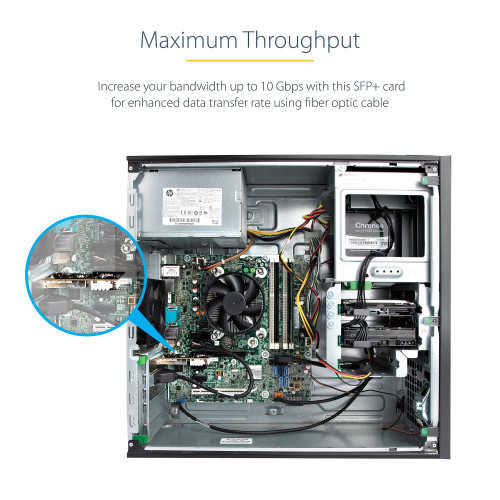

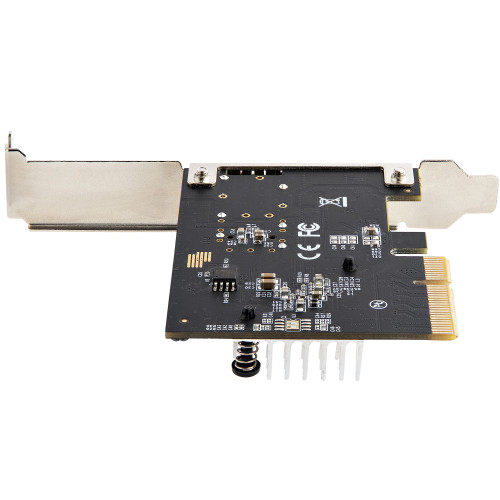

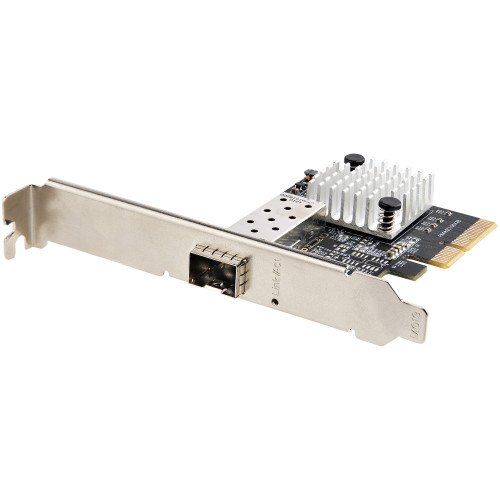

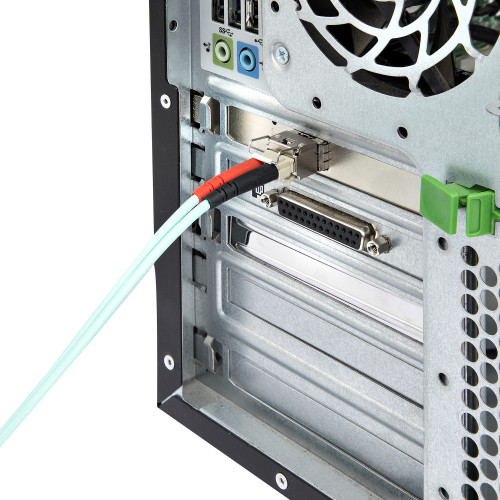

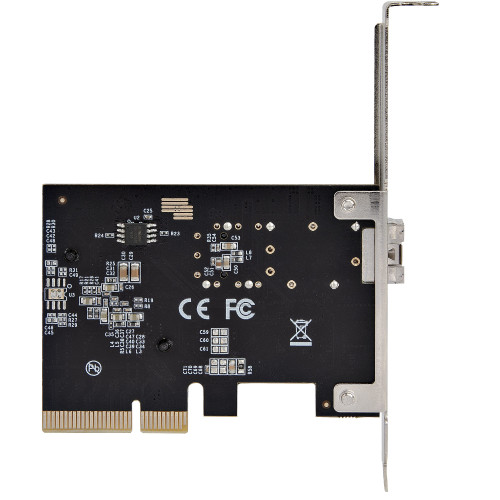

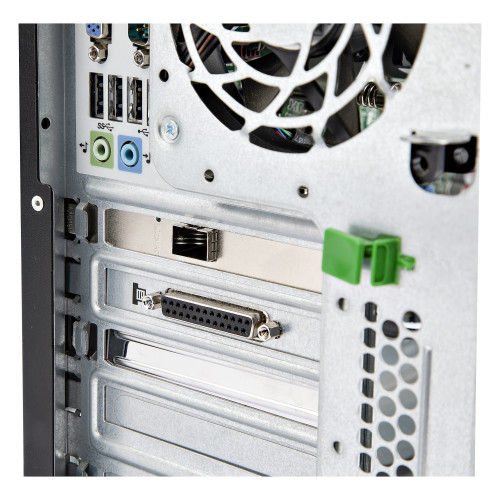

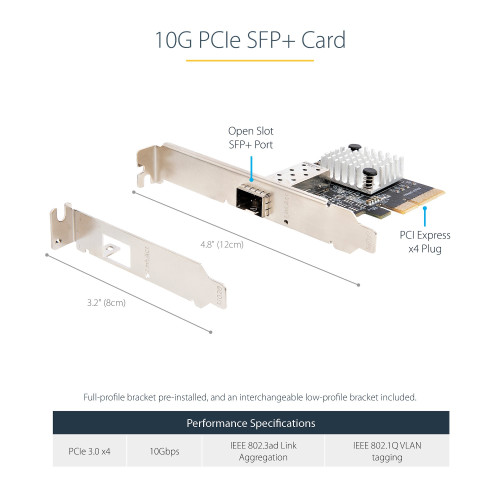

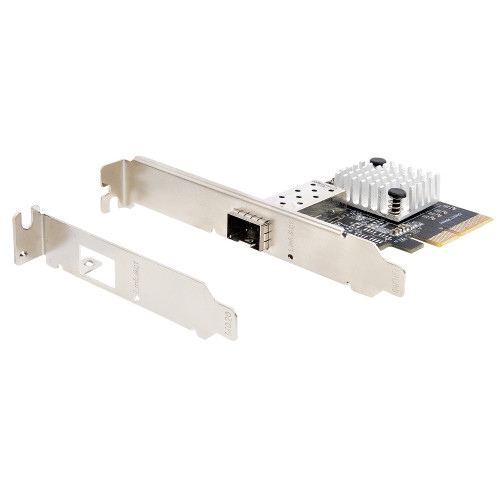

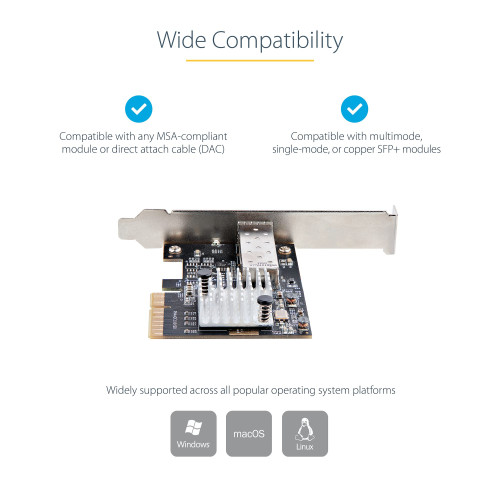

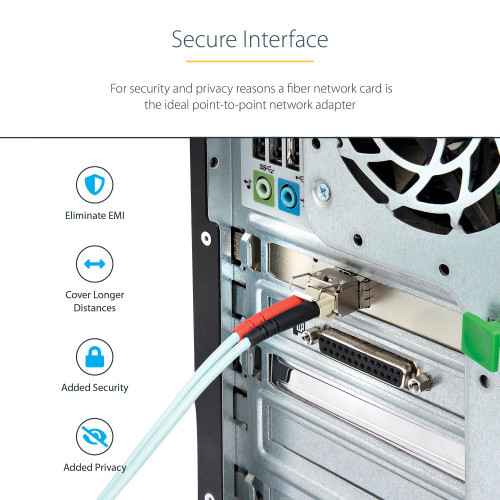

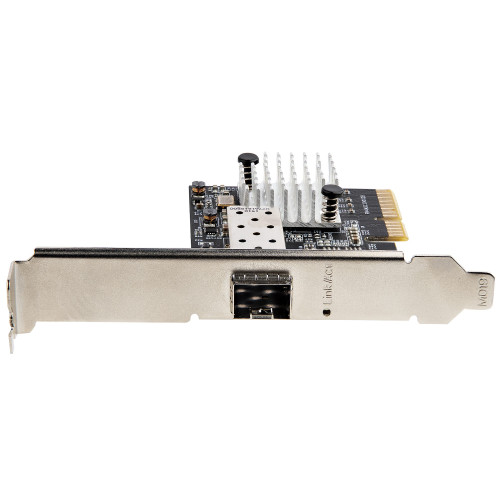

PCI Express SFP+ Card | 10 Gbps | Open SFP+ Slot | Fiber, Copper & DAC | PCIe 3.0 x4Increase your network speedThis PCIe network card lets you take advantage of improved bandwidth in data-intensive applications such as multimedia streaming and large file transfers. This fiber NIC offers data transfer rates of up to 10Gbps which improve speeds and reduces load times.Scalable network connectionFeaturing an open SFP+ slot, you have the flexibility to make changes as needed just by swapping the module in use, whether it is fiber, copper, or direct attach cables (DAC). The card complies with MSA, allowing use with modules from StarTech.com or 3rd parties that support MSA.Enhance your existing hardwareThe 10Gb network card easily connects via an available x4 PCI Express 3.0 expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various types of computer chassis. It supports a wide variety of OSes including Windows and Linux.The PEX10GSFP is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
Data transmission
Maximum data transfer rate 20000 Mbit/s
Design
Component for PC
Product colour Black
Features

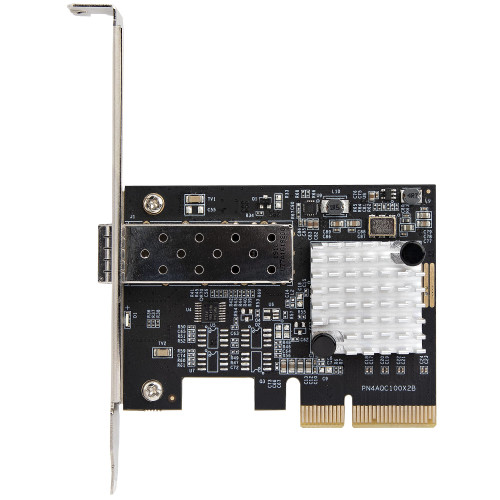

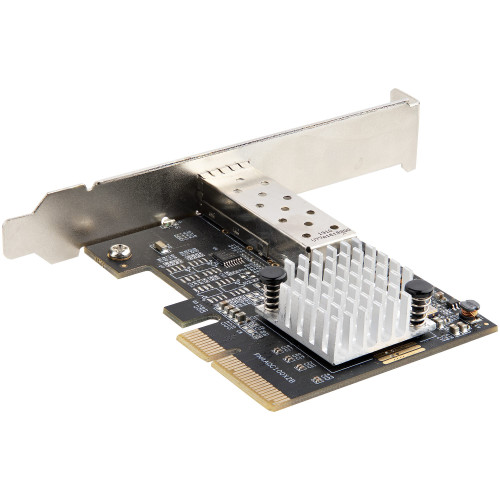

Chipset Aquantia AQC100S
Fiber mode structure Multi-mode, Single-mode
Full duplex Y
Keyboard
Connectivity technology Wired
Logistics data
Harmonized System (HS) code 85176990
Master (outer) case height 235 mm
Master (outer) case length 355 mm
Master (outer) case width 310 mm
Products per master (outer) case 20 pc(s)
Network
Flow control support Y
Jumbo frames 9000
Jumbo frames support Y
VLAN tagging Y
Operational conditions
Operating relative humidity (H-H) 20 - 80%
Operating temperature (T-T) 5 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Other features
Internal Y
Packaging content
Quick installation guide Y
Packaging data
Mounting brackets included Y
Performance
Fiber optic connector SFP+
Linux operating systems supported Y
Windows operating systems supported Y
Ports & interfaces
Host interface PCI Express
Interface Fiber
PCI version 3.0
Sustainability
Sustainability certificates CE, RoHS
System requirements
Mac operating systems supported Y
Technical details
Networking standards IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3x

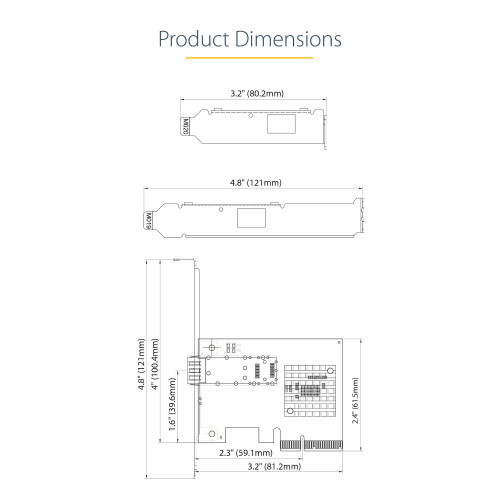

Weight & dimensions
Depth 94 mm
Height 121 mm
Package depth 145 mm
Package height 35 mm
Package weight 145 g
Package width 210 mm
Weight 55 g
Width 18 mm

Write a review

Please login or register to review

StarTech.com 10G PCIe SFP+ Card - Single SFP+ Port Network Adapter - Open SFP+ for MSA-Compliant Modules/Direct-Attach Cables - 10 Gigabit Fiber PCIe NIC - PCI Express SFP+ Network Card

  • Brand: StarTech.com
  • Product Code: PEX10GSFP
  • Availability: In Stock
  • $151.81
